IP67 Waterproof Car Night Vision Camera Module Metal Housing Bracket
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OV2710-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | Omnivision OV2710 |
|---|---|---|---|
| Resolution: | 2MP (1920*1080) | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Night Vision |
| Highlight: | IP67 Night Vision Camera Module,ov2710 car Night Vision Camera Module,ov2710 camera module |
||
Product Description
IP67 Waterproof Car Night Vision Camera Module Metal Housing Bracket
IP67 Waterproof USB Car Camera Module With Metal Housing And Bracket
Night Vision Camera Module
We recently added several new car camera modules, and this is one of them. Several car camera modules have some differences in appearance and function. You can choose your favorite style to place an order directly or re-customize. If there is no suitable one, you can also send us an email to consult us. Due to too many styles, we did not upload them one by one.

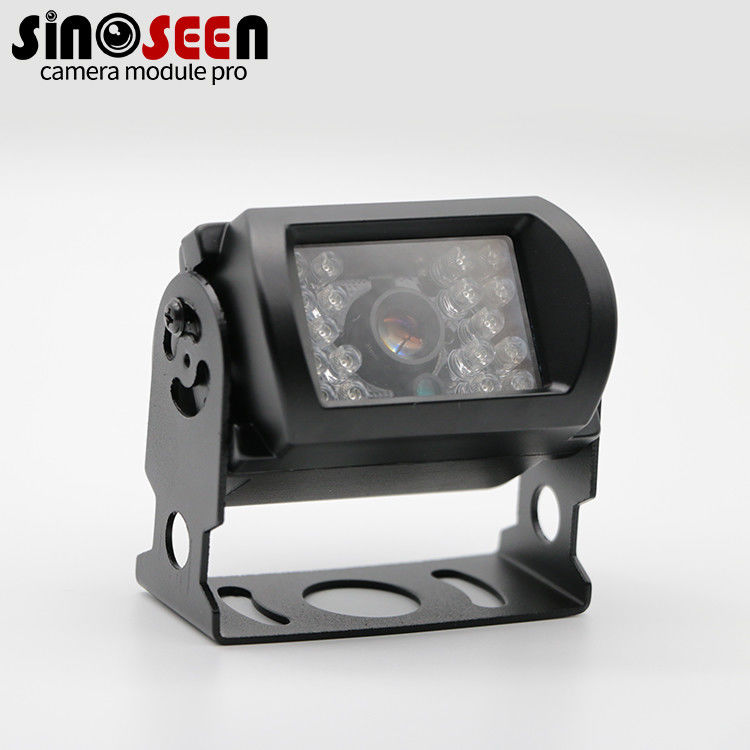

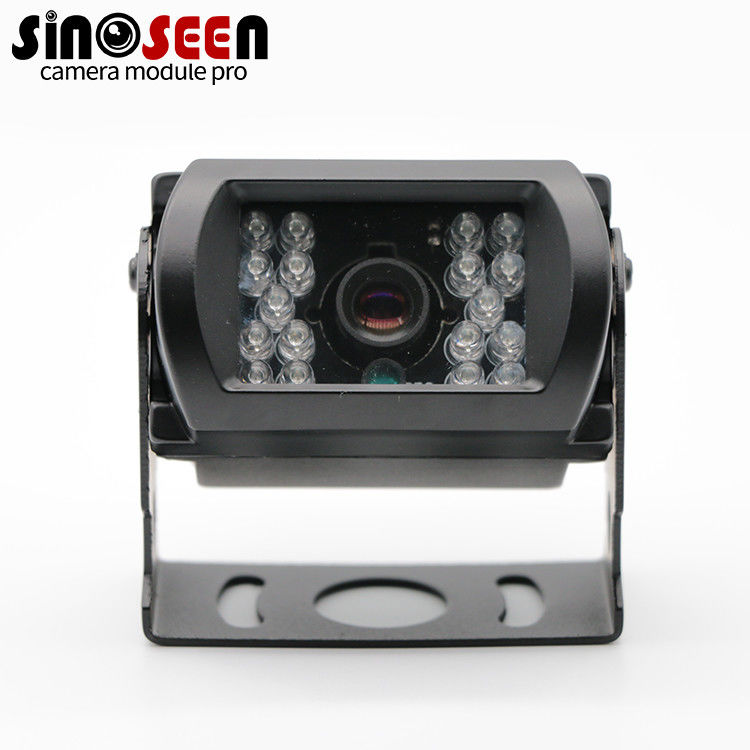

This model is designed with aluminum alloy and waterproof glass, the module uses a 2MP chip, and the image quality is very good and very stable. Dozens of LED fill lights around the lens also ensure that the camera can work normally when the light is bad.
Specification
|
Model No |
SNS-2MP-OV2710-H1 |
|
Sensor |
1/2.7’’ Omnivision OV2710 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image Area |
5856µm x 3276µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
39dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
IR Cut filter: 850nm |
|
|
FOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 55°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
