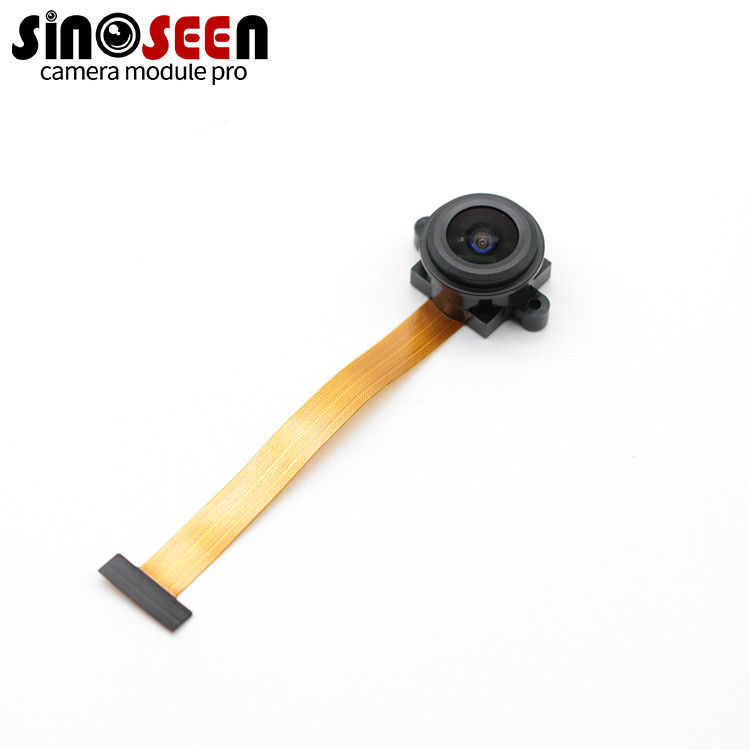

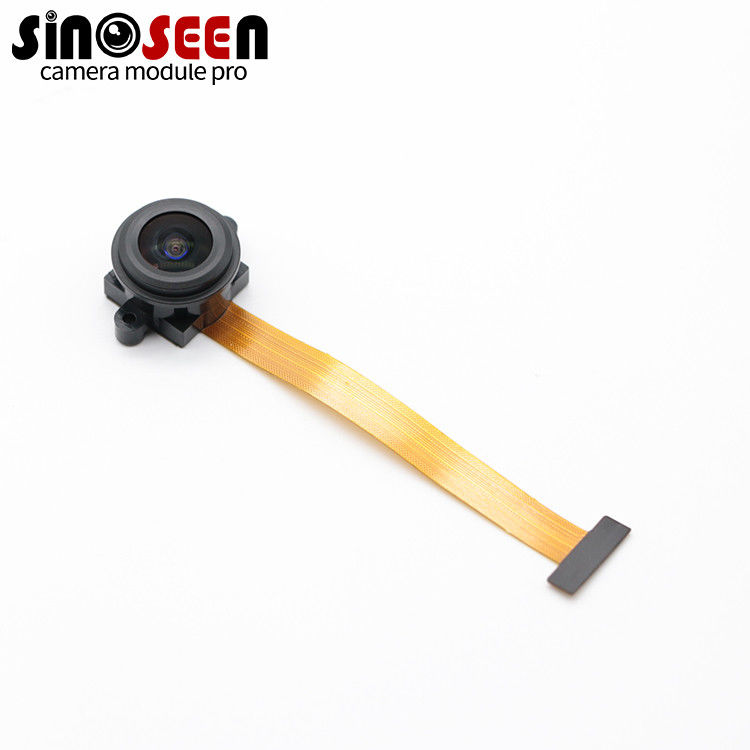

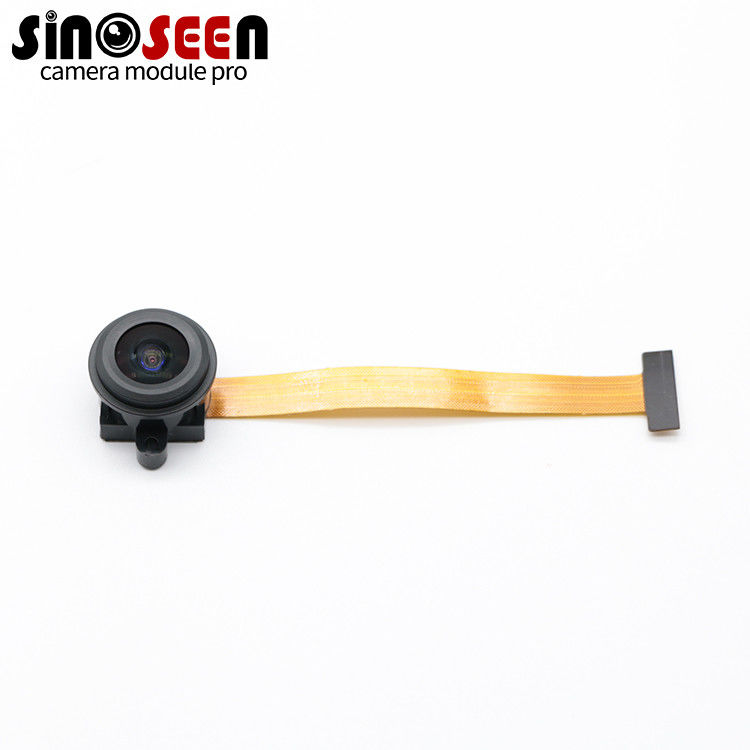

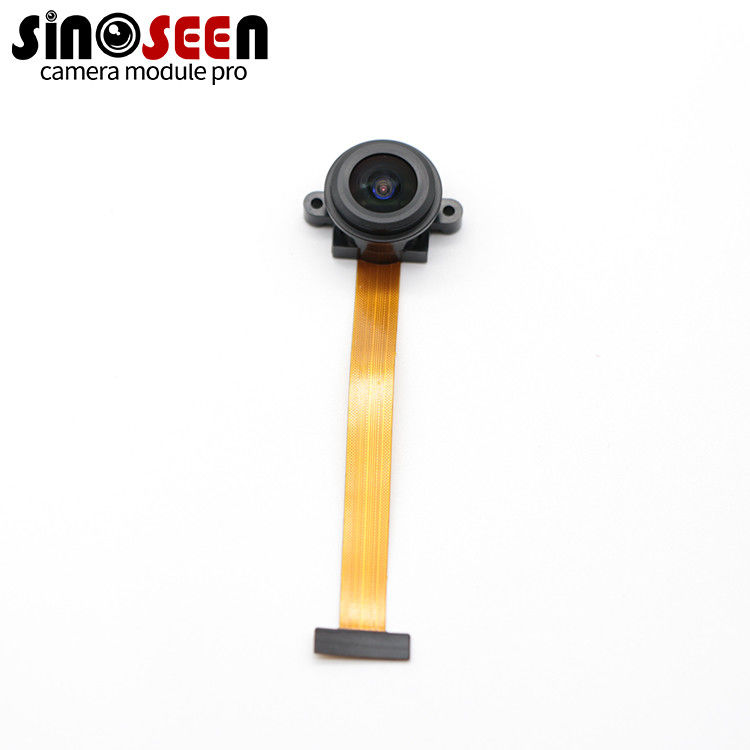

OEM M12 Lens 2MP 1080P CSI Camera Module Flexible Printed Board
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OS02C10-F1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.8" Omnivision OS02C10 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 120° | Focus Type: | Fixed Focus |
| Interface: | MIPI CSI4 | Feature: | HDR |
| High Light: | OEM 1080P CSI Camera Module,OS02C10 CSI Camera Module,OS02C10 24 pin camera module |
||
Product Description
OEM M12 Lens 2MP 1080P CSI Camera Module Flexible Printed Board
OEM Flexible Printed Board 2MP 1080P MIPI Camera Module With M12 Lens
2MP 1080P CSI Camera Module
This is a 2MP MIPI camera module, which uses a bendable flexible PCB board, and the length can be customized.
This MIPI camera module is with sensor OS02C10 from Omnivision,OS02C10 is a very good sensor widely used in security camera,action camera and high resolution consumer camera.It has below fetures:
|
Model No |
SNS-2MP-OS02C10-F1 |
|
Sensor |
1/2.8" Omnivision OS02C10 |
|
Pixel |
2MP |
|
Most effective pixels |
1920x1080 |
|
Pixel Size |
2.9 µm x 2.9 µm |
|
Min illumination |
530nm |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
40X3 fps @ 1080p in 10-bit 30X3 fps @ 1080p in 12-bit |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
32,000 e- /Lux-sec |
|
Interface type |
MIPI |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens FOV |
120° |
|
Audio frequency |
Support |
|
Power consumption |
DC 5V, 100mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
-30°C to 85°C |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
