High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV10635-M1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.7" Omnivision OV10635 |
|---|---|---|---|
| Resolution: | 1MP 1280Hx800V | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | WXGA MIPI Camera Module,OV10635 MIPI Camera Module,MIPI ov10635 camera module |
||
Product Description

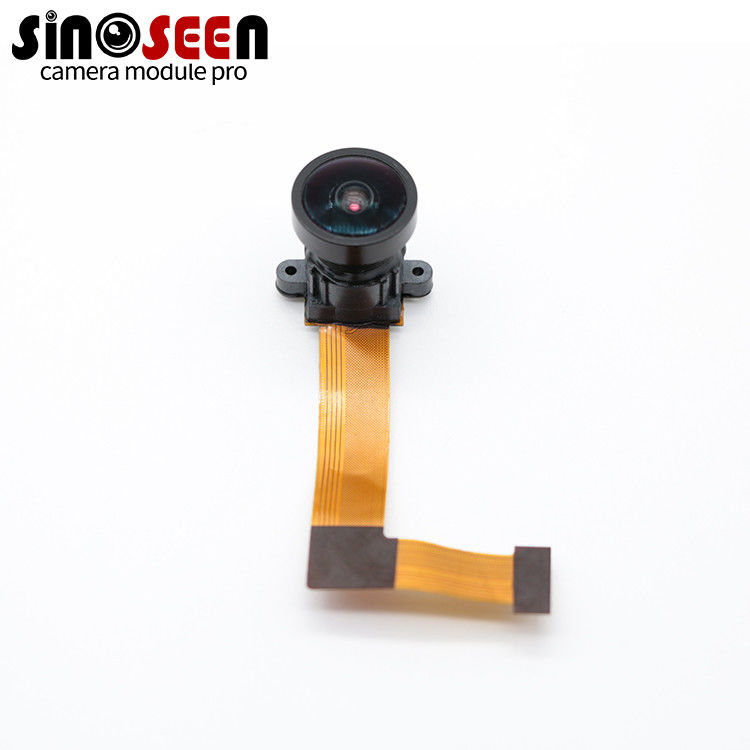

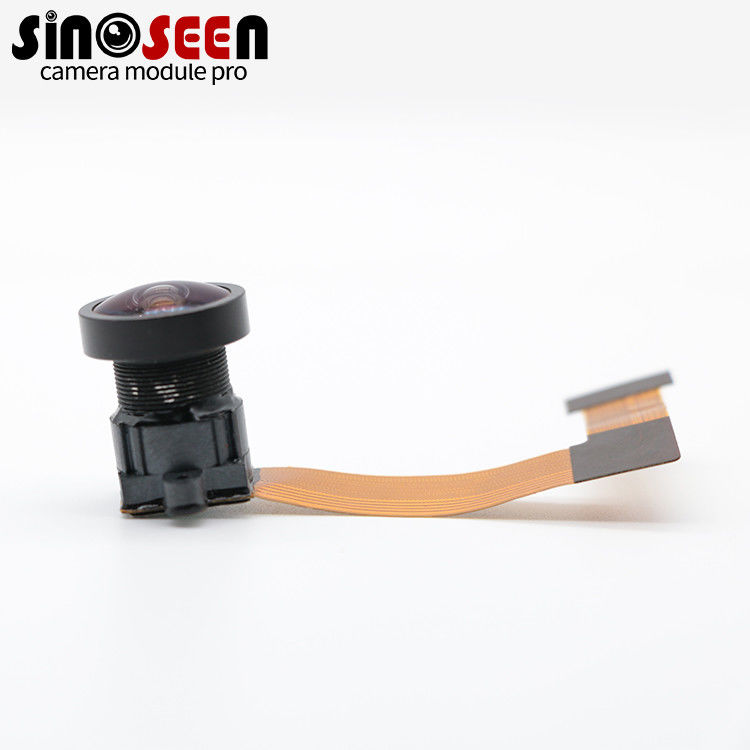

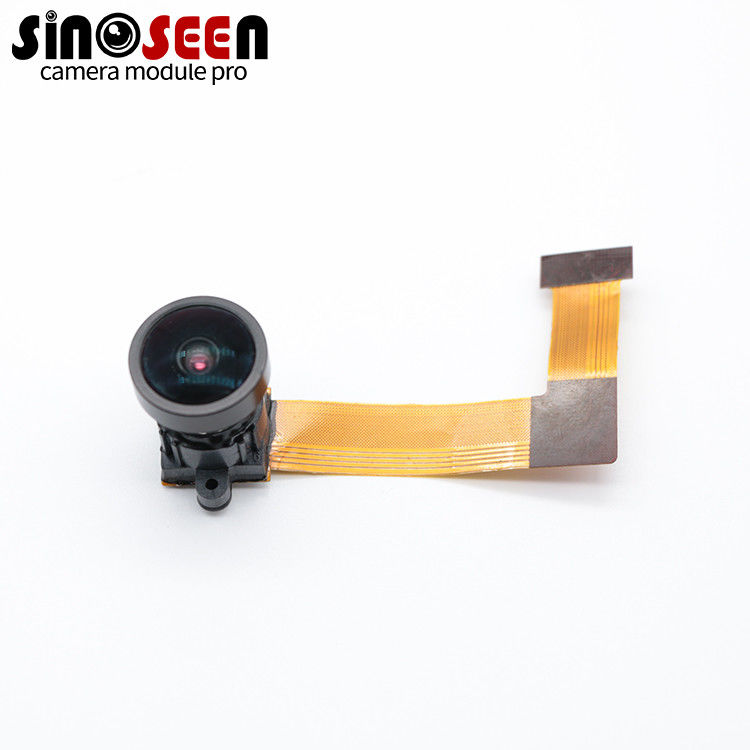

High Dynamic Range 1MP WXGA MIPI Camera Module With Omnivision OV10635
Customizable 1MP WXGA High Dynamic Range HD MIPI Camera Module With Omnivision OV10635
MIPI Camera Module
This is a 1MP MIPI camera module with Omnivision sensor OV10635,OV10653 is a 1/2.7" CMOS WXGA (1280x800) high dynamic range (HDR) high definition (HD) image sensor.It support for image sizes:WXGA (1280x800),HD 720p (1280x720),WVGA (752x480),VGA (640x480),600x400,CIF (352x288),QVGA (320x240).
It's high sensitivity and has HDR fuction,also its operating temperature range is -40 to 105°C.
Specification
|
Module No |
SNS-1MP-OV10635-M1.0 |
|
Pixel Size |
4.2μm x 4.2μm |
|
Effective Pixels |
1280H×800H |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/2.7" |
|
Sensor Type |
Omnivision OV10635 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-40～105℃ |
|
Storage temperature |
0～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
