2MP Electronic Rolling Shutter Analog Camera Module MIPI Customizable Dimensions

2MP Electronic Rolling Shutter Analog Camera Module MIPI Customizable Dimensions

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-28935-V1.1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: 1/5" GalaxyCore GC2145
Resolution: 2MP (1600*1200) Dimensions: Customizable
Lens FOV: 90°(optional) Focus Type: Fixed Focus
Interface: MIPI Feature: 4:3
High Light:

GC2145 Analog Camera Module

,

MIPI Analog Camera Module

,

GC2145 MIPI Camera Module

Product Description

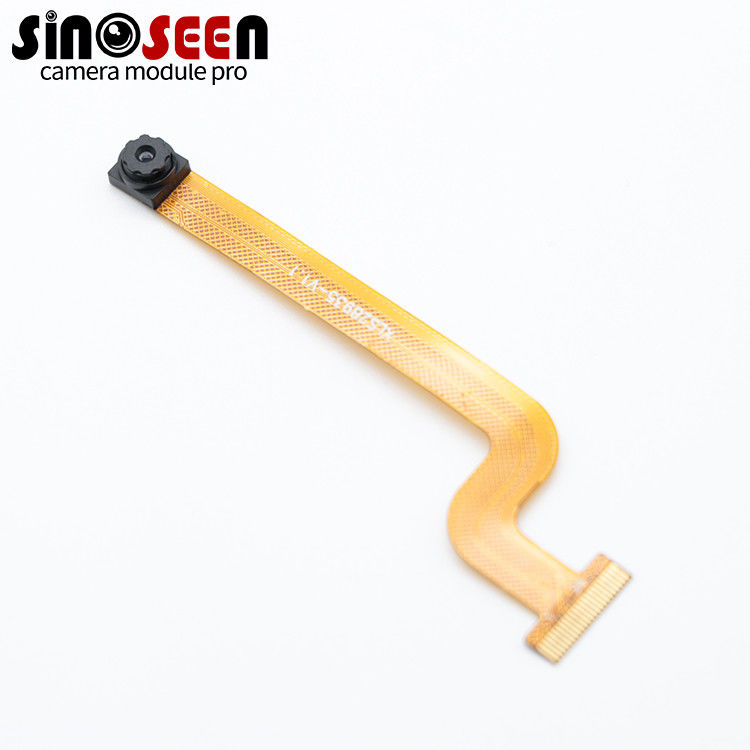

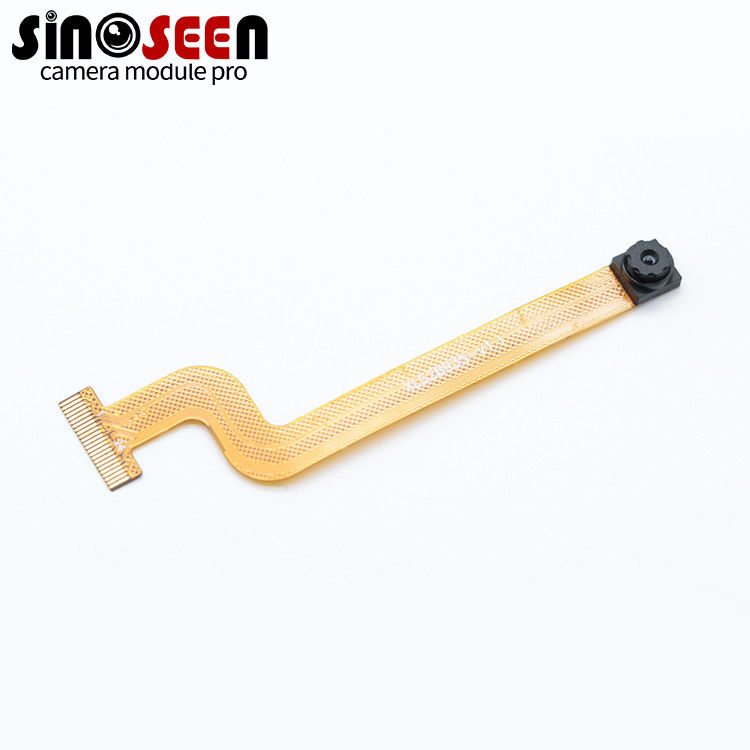

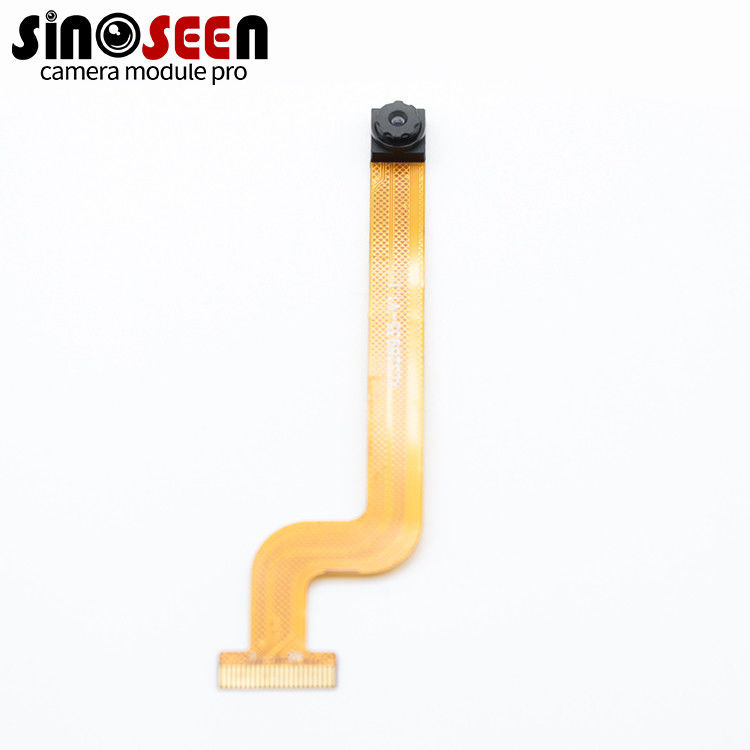

2MP Electronic Rolling Shutter Analog Camera Module MIPI Customizable Dimensions

Customizable Dimensions Fixed Focus 2MP Electronic Rolling Shutter MIPI Camera Module





This is a 2MP MIPI camera module with GC2145 CMOS sensor from GalaxyCore,the GC2145 is a high quality 2Mega CMOS image sensor, for mobile phone camera applications and digital camera products. GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10- bit ADC, and image signal processor.



According to different light conditions, The on-chip ISP provides a very smooth AE (Auto Exposure) and accurate AWB (Auto White Balance) control .Besides, interpolation, de-noise, and color correction, gamma correction are supported, which can revert the real scene better.



The sensor also provides various data formats, such as Bayer RGB, RGB565, YCbCr 4:2:2. All sensor parameters and features are controlled through a standard 2-wire serial interface. Internal master clock can be generated by on-chip Phase Lock Loop(PLL) oscillator.



Features


 Standard optical format of 1/5 inch
 Various output formats: YCbCr4:2:2, RGB565, Raw Bayer
 Power supply requirement: AVDD: 2.7~3.0V
DVDD: 1.7~1.9V
IOVDD: 1.7~3.0V
 PLL support
 Windowing support
 MIPI interface support: Single lane/Double lane(CSI-2 V1.0/PHY-1.0)
 Horizontal /Vertical mirror
 Image processing module
 Package: CSP/COB/wafer



Application


 Cellular Phone Cameras
 Notebook and desktop PC cameras
 PDAs
 Toys
 Digital still cameras and camcorders
 Video telephony and conferencing equipment
 Security systems
 Industrial and environmental systems





Specification



Module No

SNS-28935-V1.1

Pixel Size

1.75μm x 1.75μm

Effective Pixels

1600(H)X1200(V)

Video output

YUV2 MJPG

Active Array Size Video Rate

1600x1200 @15fps

1280x720 @ 15fps

640x480 @ 30 fps

320x240 @30fps

Image Sensor

1/5" GC2145

SNR max

TBDdB

Dynamic range

TBDdB

OTG

USB2.0 OTG

Drive free

USB Video Class(UVC)

AEC

Support

AEB

Support

AGC

Support

Lens view

FOV90°(optional),F/N(optional)

Interface

USB BUS POWER 5P-1.0mm

Operating temperature

0~60℃

Storage temperature

-20~70℃





2MP Electronic Rolling Shutter Analog Camera Module MIPI Customizable Dimensions 02MP Electronic Rolling Shutter Analog Camera Module MIPI Customizable Dimensions 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





FAQ:


Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.


Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.


Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.


Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.


Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
