OV5648 Auto Focus 5MP MIPI Camera Module Color Image With External Flash Light
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-51007-v1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/4" Omnivision OV5648 |
|---|---|---|---|
| Resolution: | 5MP 2592x1944 | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Auto Focus |
| Interface: | MIPI | Feature: | HD |
| Highlight: | 5MP OV5648 MIPI Camera Module,HD OV5648 MIPI Camera Module,5MP ov5648 camera module |
||
Product Description
OV5648 Auto Focus 5MP MIPI Camera Module Color Image With External Flash Light
OV5648 Auto Focus 5MP Color Image MIPI Camera Module With External Flash Light

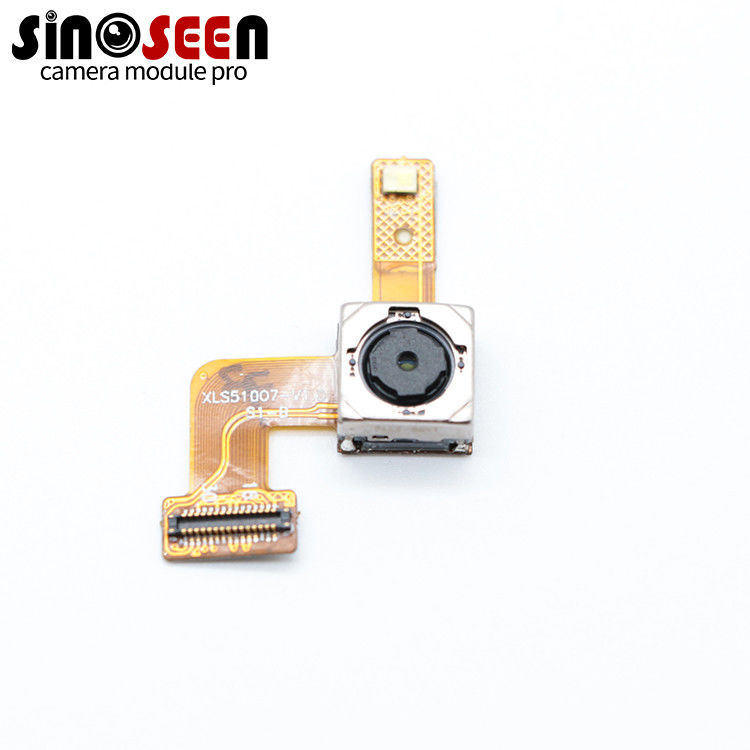

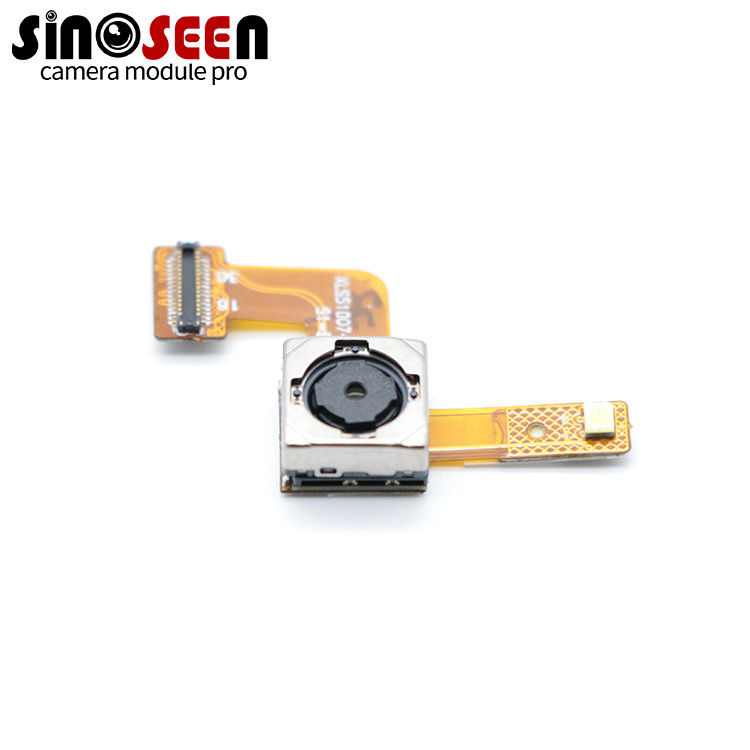

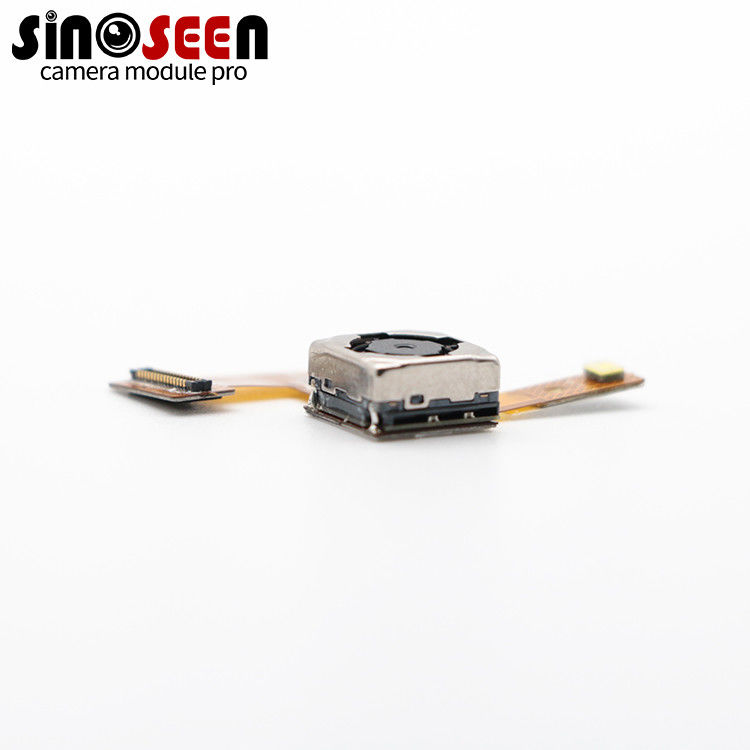

This is a 5MP MIPI autofocus camera module used on mobile phones, the image sensor is OV5648 from Omnivision,OV5648 is a 1/4 inch color CMOS QSXGA image sensor.It can generate very good and stable pictures.
Currently it with a 80 degrees auto focus lens, you can change it to other auto focus lens with different DFOV or any other fixed focus lens.There is also an external flash light, you can choose to keep it or remove it.
Regarding to the dimensions and structures, you can also have your own design according to your actual needs.
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
2592*1944 |
|
Image Sensor |
1/4" |
|
Sensor Type |
OV5648 |
|
Lens View |
FOV80°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0～60℃ |
|
Temperature(Storage) |
-20～70℃ |
|
Dimension |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
