Auto Focus 5MP Smartphone Camera Module MIPI Interface CMOS Image Sensor

Auto Focus 5MP Smartphone Camera Module MIPI Interface CMOS Image Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHs
Model Number: SNS-51106-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 200
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: MIPI Camera Module Sensor: 1/5" GalaxyCore GC5025
Resolution: 5MP (2612*1968) Dimensions: Customizable
Lens FOV: 76°(optional) Focus Type: Auto Focus
Interface: MIPI Feature: Low Power Consumption
High Light:

GC5025 Smartphone Camera Module

,

MIPI 5MP Smartphone Camera Module

,

GC5025 phone camera module

Product Description

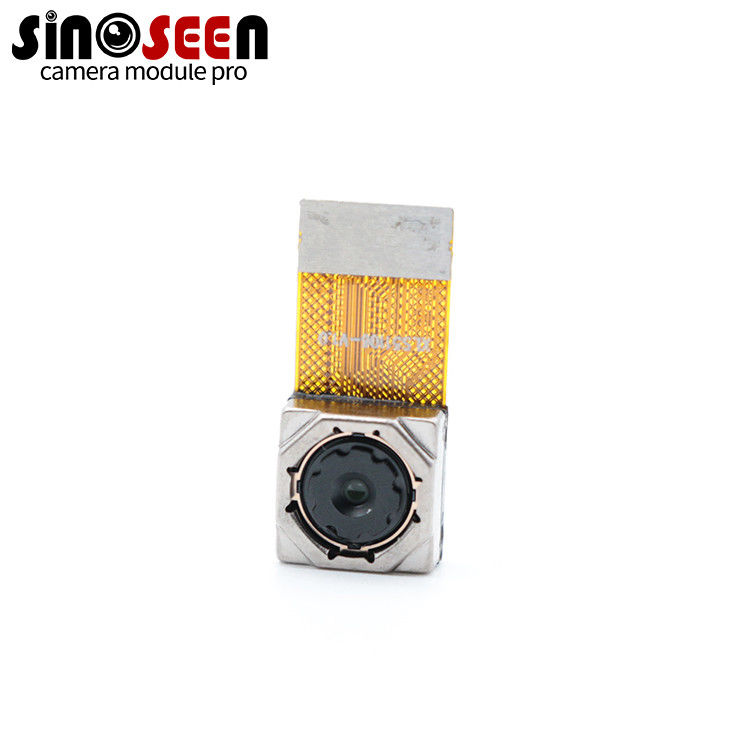

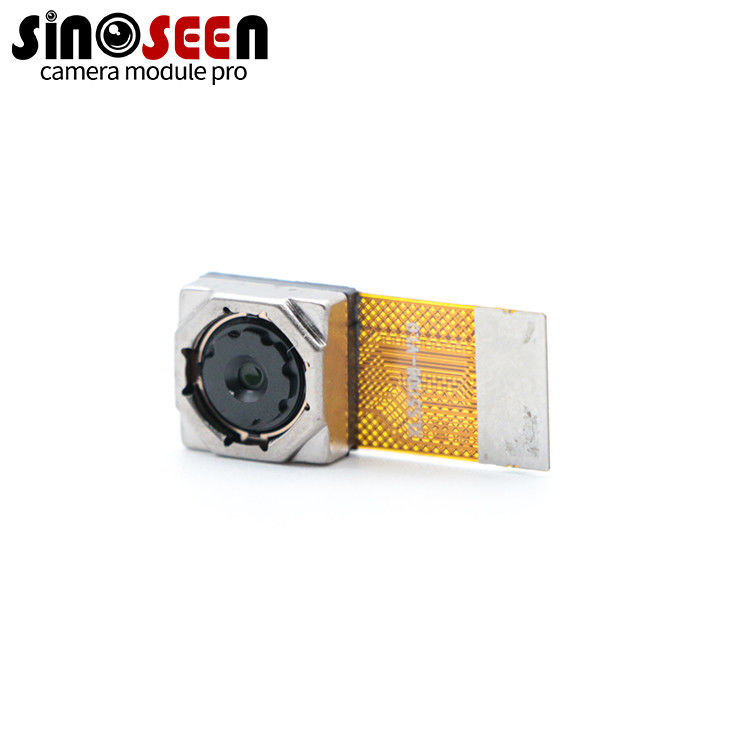

Auto Focus 5MP Smartphone Camera Module MIPI Interface CMOS Image Sensor

High Quality 5MP Auto Focus MIPI Camera Module For Smart Phone Rear Camera





This is a high quality 5MP auto focus MIPI camera module for smart phone rear camera with GalaxyCore sensor GC5025.GC5025 is a high quality 5Mega CMOS image sensor, for mobile phone camera applications and digital camera products. GC5025 incorporates a 2612H x 1968V pixel array, on-chip 10-bit ADC, and image signal processor.



The full scale integration of high-performance and low-power functions makes the GC5025 fit the design, reduce implementation process, and extend the battery life of cell phones, PDAs, and a wide variety of mobile applications. It provides RAW10 and RAW8 data formats with MIPI interface. It has a commonly used two-wire serial interface for host to control the operation of the whole sensor.



The MIPI camera module we made is used for mobile phone rear camera applications, of course, you can also use it in other fields. You can customize the size you need, and match any angle lens.



If you have any needs, please contact our engineering team. We will provide you with the most suitable suggestions based on our years of experience.





Specification



Model No

SNS-51106-V1.0

Sensor

1/5’’ GalaxyCore GC5025

Pixel

5 Mega Pixel

Most effective pixels

2612 (H) x 1968 (V)

Pixel Size

1.12µm x 1.12µm

Shutter Type

Electronic rolling shutter

Focus type

Auto focus

S/N ratio

TBDdB

Dynamic range

TBDdB

Sensitivity

TBDmV/Lux-sec

Lens FOV

Default 76° (Optional)

Dimension

Customizable

Storage temperature

-20°C to 70°C

Operating temperature

0°C to 50°C
