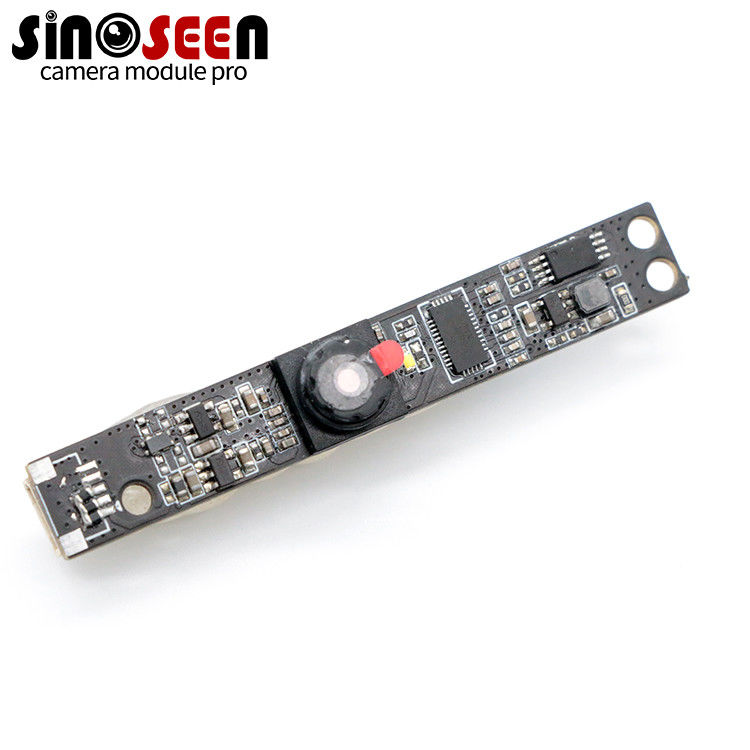

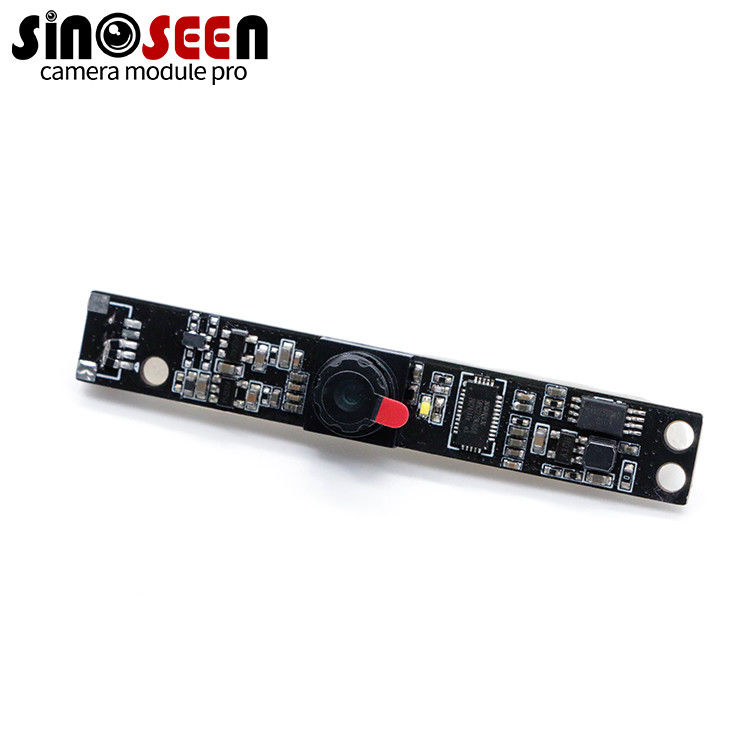

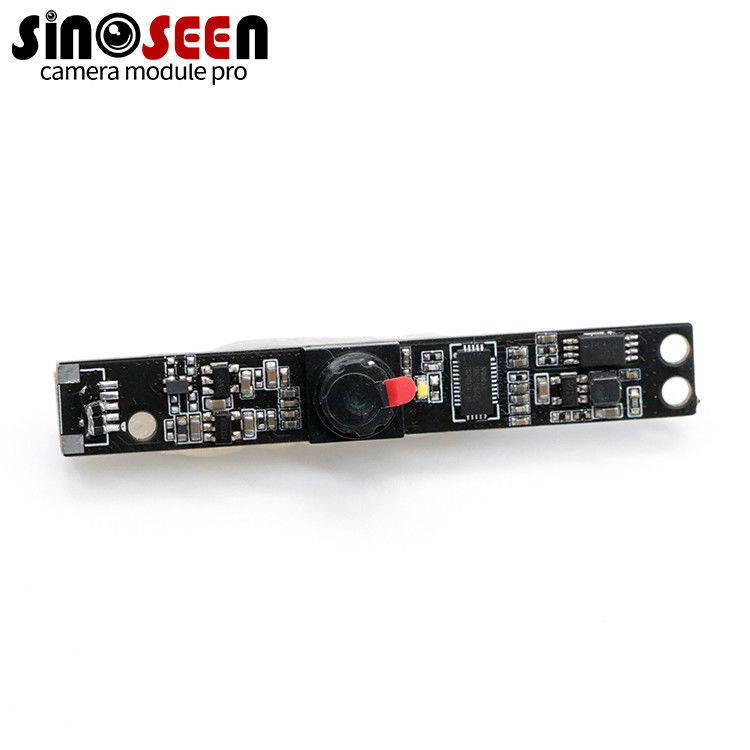

Fixed Focus 1080P HD USB 2MP Camera Module With C2496 CMOS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-C2496 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2mp Camera Module | Sensor: | C2496 |
|---|---|---|---|
| Resolution: | 2.2 μm (H) * 2.2 μm (V) | Dimensions: | (customizable) |
| Lens FOV: | 70°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| Highlight: | USB 2MP Camera Module,1080P HD 2MP Camera Module,C2496 CMOS Sensor USB Camera Module |
||
Product Description
C2496 CMOS SENSOR HD 2MP USB CAMERA MOUDLE
2MP Fixed Focus 1080p HD Usb Camera Moudle With C2496 CMOS Sensor
This is our newly developed C2496 camera chip. The C2496 camera chip complexly integrates 1080p BSI HQ-PIX CMOS image sensor and on-chip ISP (Image Signal Processor), with automatic black level calibration, and poor pixel correction.The C2496 has a MIPICSI-2 compliant serial interface and a 10-bit digital video port (DVP) interface. It consists of a 1936x1096 active pixel sensor (APS) array, capable of running at 1080p30 frames per second (FPS).In addition to superior low light sensitivity and low dark current performance, the fixed-mode noise is significantly reduced through 10-bit ADC, programmable gain control (PGA) and correlated double sampling (CDS), and better and clear images can be obtained.All ISP functions and sensor operations can be controlled and accessed by the host through a two-wire serial bus interface.The C2496 camera chip is suitable for security and surveillance applications, as well as low-profile camera module packaging in CSP packaging.
| Optical Format | 1/3.7-inch | |
| Active Pixel Array(1080P) | 1936H×1096V | |
| Pixel Size | 2.2 μm (H) × 2.2 μm (V) | |
| Color Filter Array | RGB Bayer Pattem | |
| Chief Ray Angle | 9° linear | |
| Shutter Type | Electronic Rolling Shutter | |
| Maximum Frame Rate | 1080p:30fps | |
|
Power supply |
AVDD | 3.0~3.6V(3.3V nominal) |
| I/O | 1.7~AVDD(1.8V nominal) | |
| DVDD | 1.08~1.32V(1.2V nominal) | |
| Power Consumption | Active | 105mW |
| XSutdown | <1µA | |
| Output Formats | 10-bit RAW | |
| Operating Temperature | -30ºC to 85ºC | |
| Storage Temperature | --40ºC to 95ºC | |
| Die Dimensions ( μm2) | 5,210×3,640 | |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
