Place of Origin:
Shenzhen,China
Brand Name:
Sinoseen
Certification:
RoHS
Model Number:
SNS-1MP-OV9732-TDB

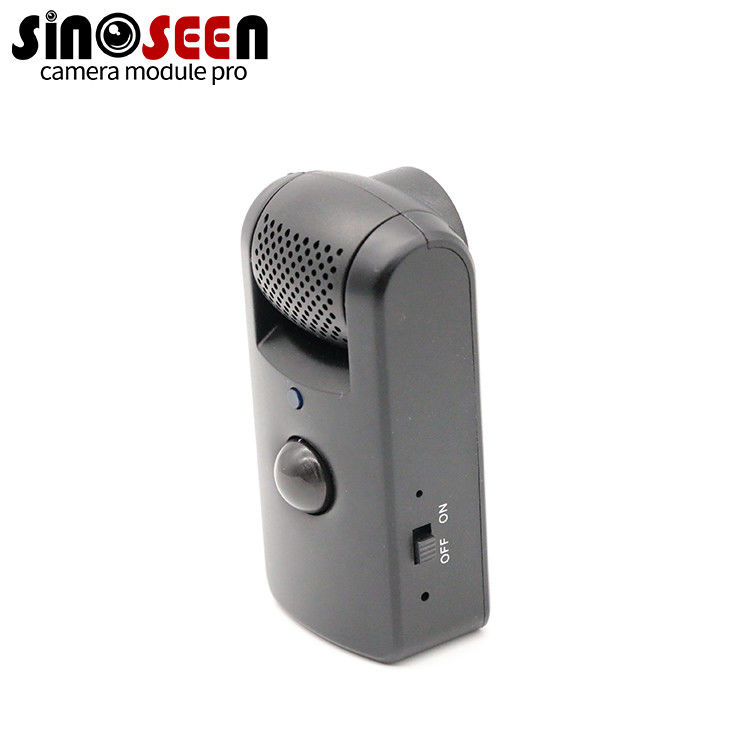

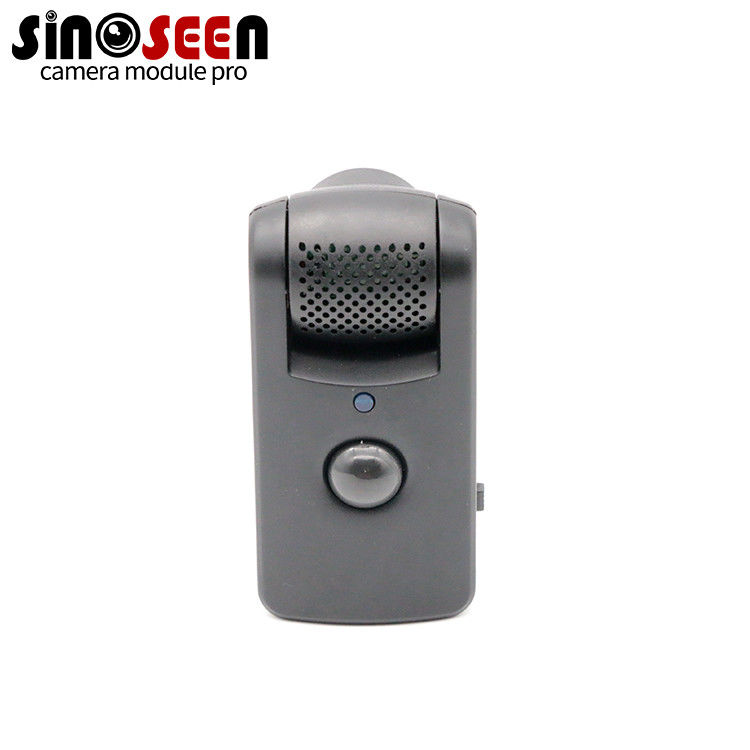

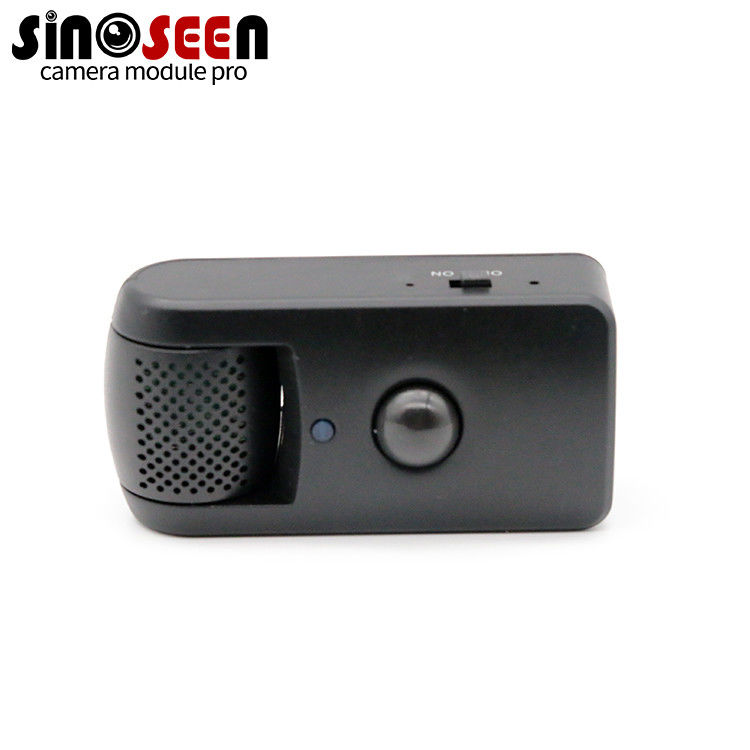

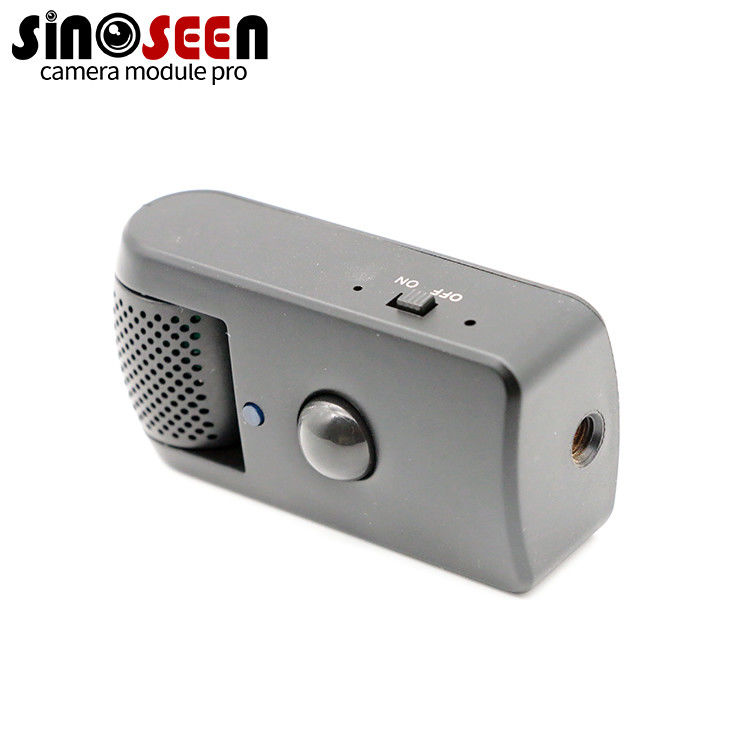

1MP 720P WiFi Camera Module
Features
Size: 1/4
The highest resolution is 1280*720
With wireless WiFi, remote control operation
Support operating system: WinXP/Vista/Win7/Win8/Win10 Linux with UVC (linux-2.6.26 and above) MAC-OS X 10.4.8 or later Android 4.0 or later with UVC
Able to run at 30 frames per second (fps) at 720p resolution and 45fps at VGA resolution.
It is widely used in network cameras, lifestyle cameras, surveillance and sports cameras.
| Model No | SNS-1MP-OV9732-TDB |
| Sensor | 1/4" Omnivision OV9732 |
| Pixel | 1 Mega Pixel |
| Most effective pixels | 1280(H) x 720(V) |
| Pixel Size | 3µm x 3µm |
| Protocol & Connection | Plug-&-Play (UVC compliant) |
| Compression format | MJPEG / YUV2 (YUYV) |
| Resolution & Frame rate | See above |
| Output Format | Raw Data 10bits |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 41dB |
| Interface type | USB2.0 |
| Lens FOV | 72° |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Audio frequency | Optional |
| Microphone | 2 |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 180mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Dimension | Customizable |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
