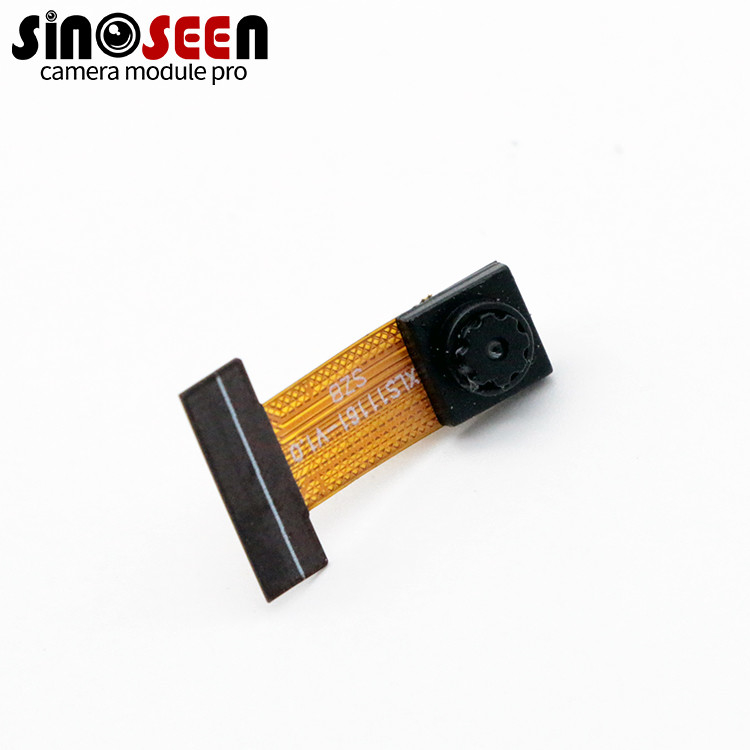

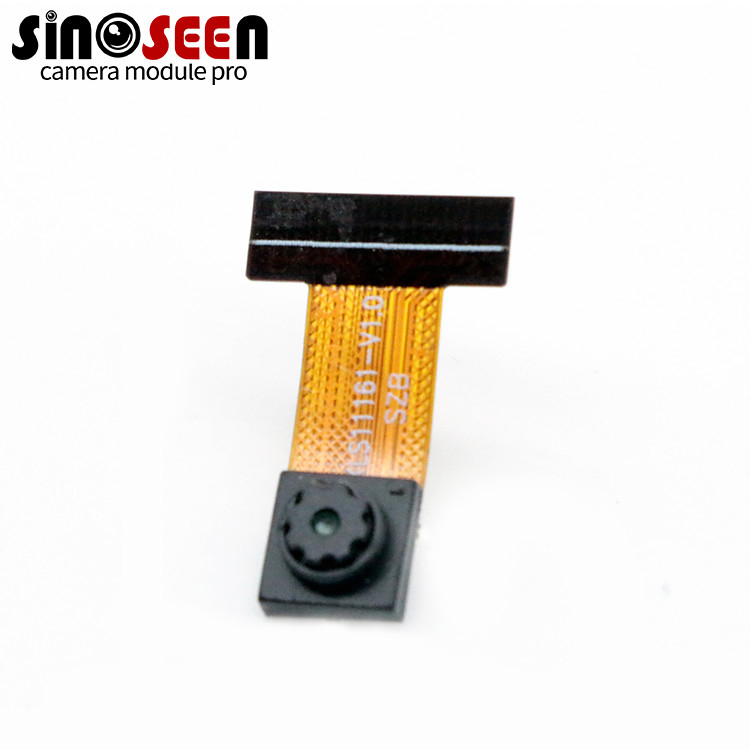

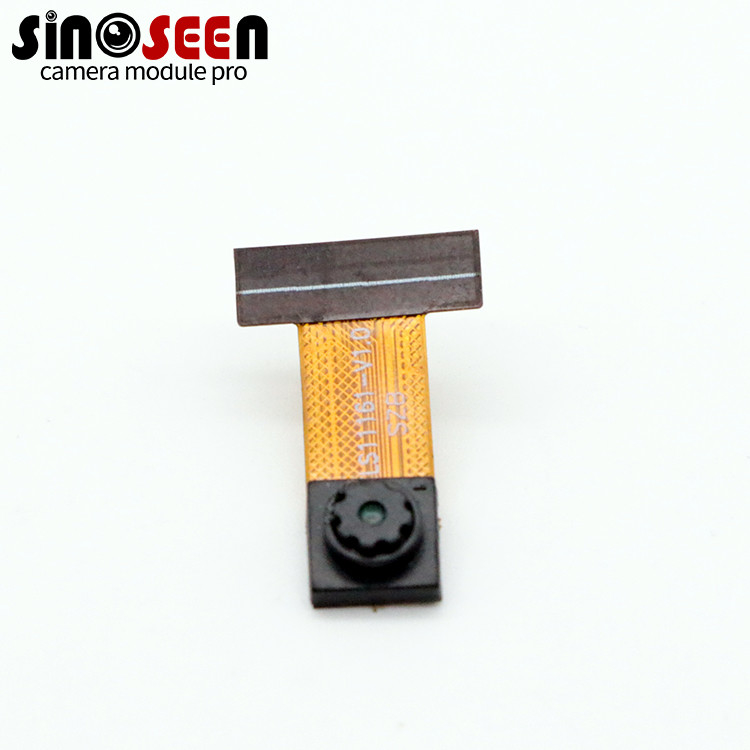

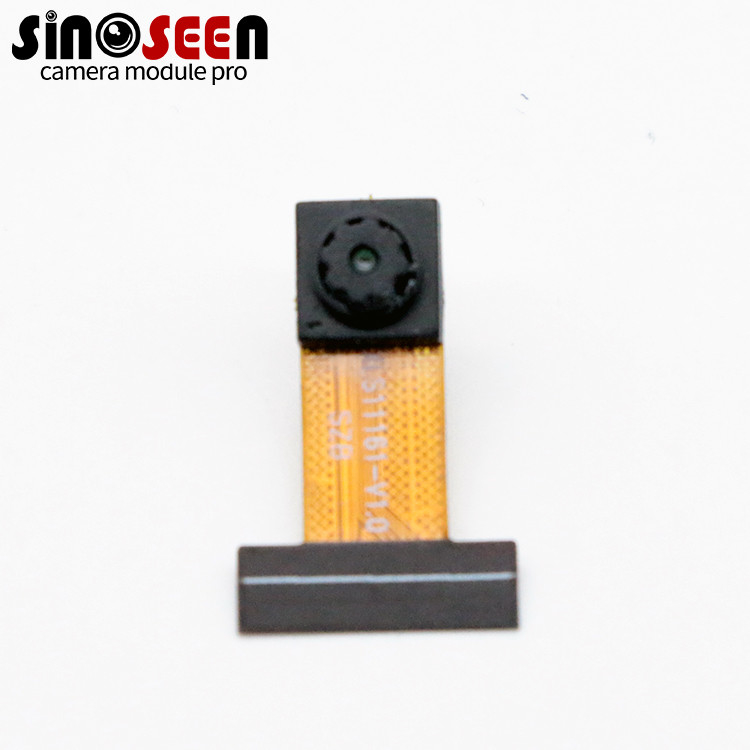

GC0308 Sensor Mini 0.3MP MIPI Camera Module 640x480

GC0308 Sensor Mini 0.3MP MIPI Camera Module 640x480

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-0.3MP-GC0308-GHR

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 0.3MP Camera Module Sensor: 1/6.5'' GC0308
Resolution: HD 648(H)X488(V) Dimensions: (customizable)
Lens FOV: 70°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Low Power Consumption
High Light:

0.3MP MIPI Camera Module

,

GC0308 Sensor MIPI Camera Module

,

Mini Camera Module 640x480

Product Description

Low Power Consumption 640*480 With GC0308 0.3MP Mipi Camera Module

Mini 0.3MP Low Power Consumption 640*480 With GC0308 Mipi Camera Module



Features:

Size: 1/6.5

Maximum resolution: 648*488

Features:

1. Low power consumption

2. Run at 30FPS per second at 640*480 resolution, and run at 60FPS per second at 320*240 resolution

Application ‹Cellular Phone Cameras ‹Notebook and desktop PC cameras ‹PDAs ‹Toys ‹Digital still cameras and camcorders ‹Video telephony and conferencing equipments ‹Security systems ‹Industrial and environmental systems ‹Bar code reader


Specification


Model No
SNS-0.3MP-GC0308-GHR
Sensor
1/ 6.5’’ GalaxyCore GC0308
Pixel
0.3 Mega Pixel
Most effective pixels
640 (H) x 480 (V)
Pixel Size
3.4µm x 3.4µm
Compression format
YUY2 ONLY
Resolution & Frame rate
640x480@30fps;
352x288@30fps;
320x240@30fps;
176x144@30fps;
160x120@30fps;
Shutter Type
Electronic rolling shutter
Focus type
Fixed focus
S/N ratio
49dB
Dynamic range
55dB
Sensitivity
3300mV/Lux-sec
Interface type
USB2.0
Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
Audio frequency
Optional
Lens FOV
Default 60° (Optional)
Lens Thread Size
M12*P0.5 (Optional)
Power supply
USB BUS POWER
Power consumption
DC 5V, 70mW
Main chip
DSP/SENSOR/FLASH
Auto Exposure Control (AEC)
NOT Support
Auto White Balance (AEB)
NOT Support
Auto Gain Control (AGC)
NOT Support
Dimension
30mm x 25mm
Storage temperature
-30°C to 80°C
Operating temperature
0°C to 60°C
USB cable length
Default
Support OS
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
