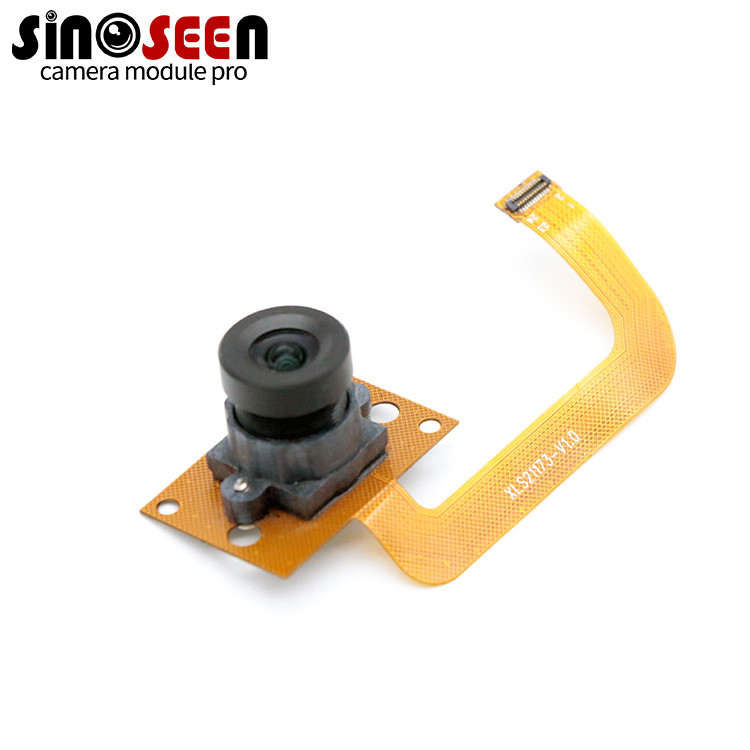

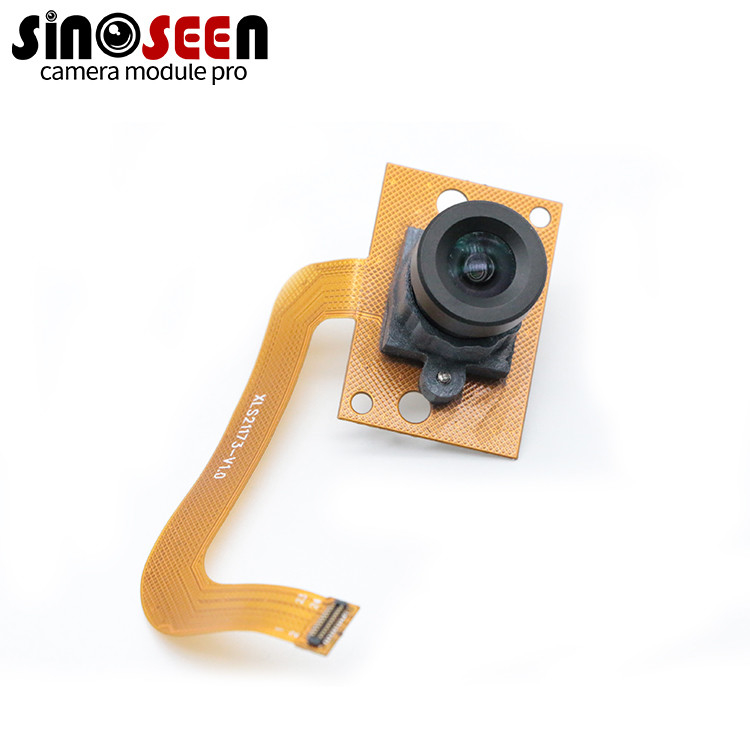

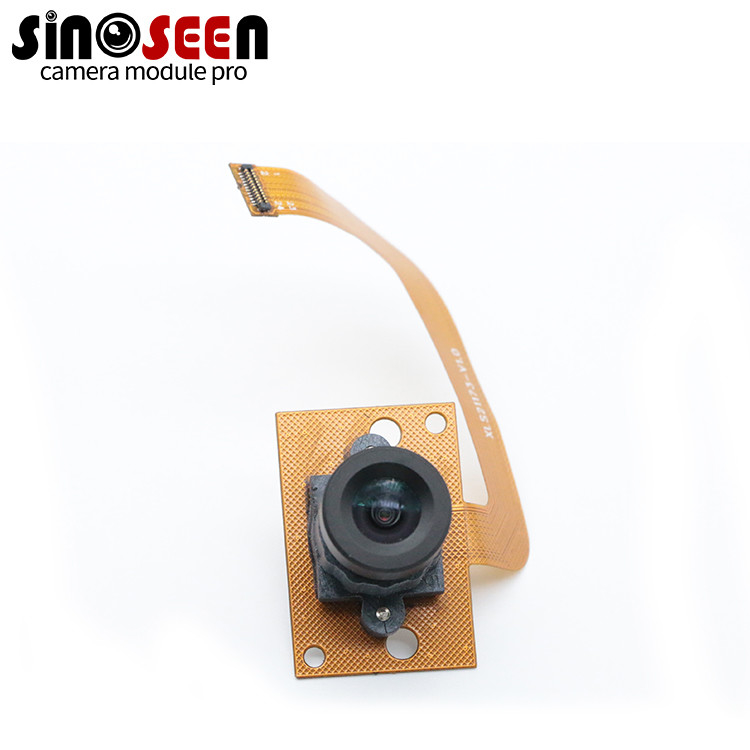

GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module

GC2053 Sensor 1080P 30FPS Fixed Focus 2MP MIPI Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-GC2053-KOP

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.9'' GC2053
Resolution: 1920(H) X 1080(V) Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: MIPI Feature: Low Power Consumption
High Light:

GC2053 Sensor MIPI Camera Module


Fixed Focus 2MP MIPI Camera Module


MIPI 1080P Camera Module

Product Description

1080p 30fps Fixed Focus 2MP MIPI camera module with GC2053 sensor

Hot Sale 2MP MIPI Camera Module 1080p 30fps Fixed Focus With GC2053 Sensor



Size: 1/2.9

Maximum resolution: 1920*1080


1. Features of high performance and low power consumption

2. It can run at 30FPS per second

Applications: Face recognition, security cameras, automobiles, mobile phones, cameras, digital video cameras, digital cameras and camcorders, video phones and conference equipment, etc.


Specification:2MP MIPI Camera Module

Parameter Typical value
Optical Format 1/2.9inch
Active pixel array 1920*1080
Pixel Size 2.8um*2.8um
Shutter type Electonic rolling shutter
ADC resolution 10 bit ADC
Max Frame rate 30fps@full size
Power Supply AVDD28:2.8V
Power Consumption TBD
Dark Current TBD
Sensitivity TBD
Dynamic range TBD
Operating temperature: -20°C to 80°C
Stable Image temperature 0°C to 60°C
Optimal Lens chief ray angle(CRA) 12(linear)
Package type CSP
Input clock frequency 6-27MHz
