Custom GC1054 Sensor 1MP 720P USB 2.0 Camera Module For Video Doorbell
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-MY1000-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 1MP Camera Module | Sensor: | 1/4 GC1054 |
|---|---|---|---|
| Resolution: | 1280(H) X 720(V) | Dimensions: | (customizable) |
| Max Frame Rate: | 30fps@36MHz,DCLK | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Power Consumption |
| High Light: | 1MP 720P USB 2.0 Camera Module,GC1054 Sensor USB 2.0 Camera Module,Custom GC1054 Sensor 1MP Camera Module |
||
Product Description
Customized 1MP Low Power 720P USB 2.0 Camera Module with GC1054 Sensor for Surveillance, Video Doorbell
1MP Low Power Camera Module

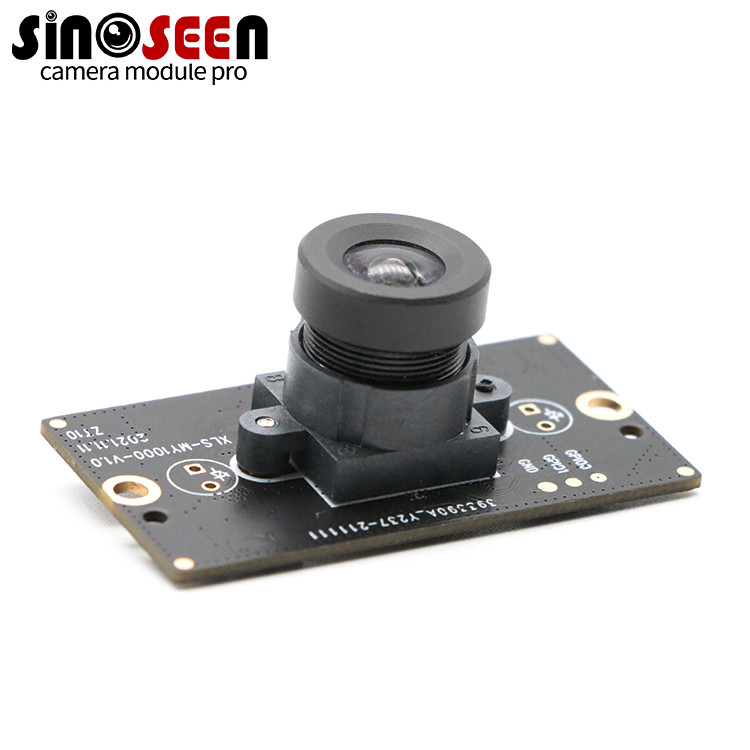

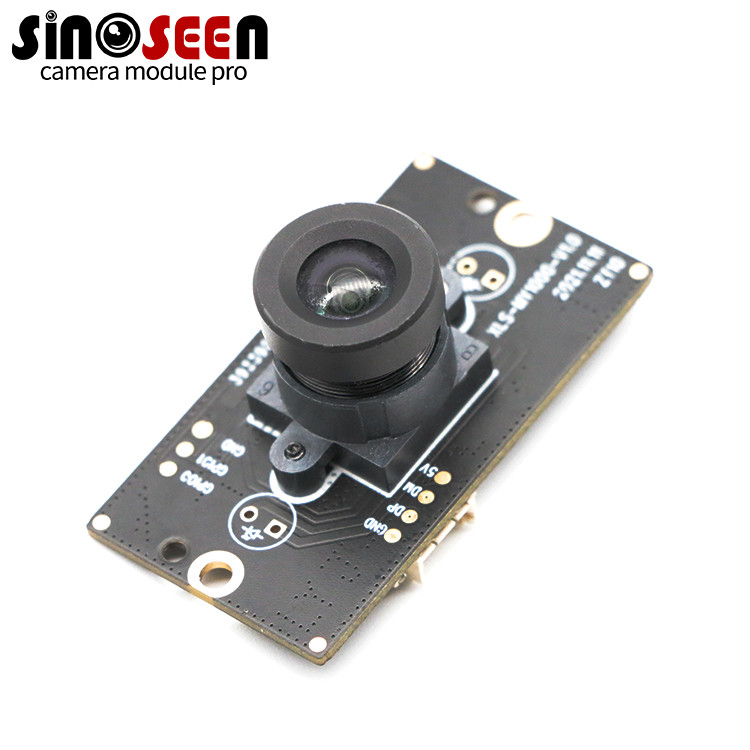

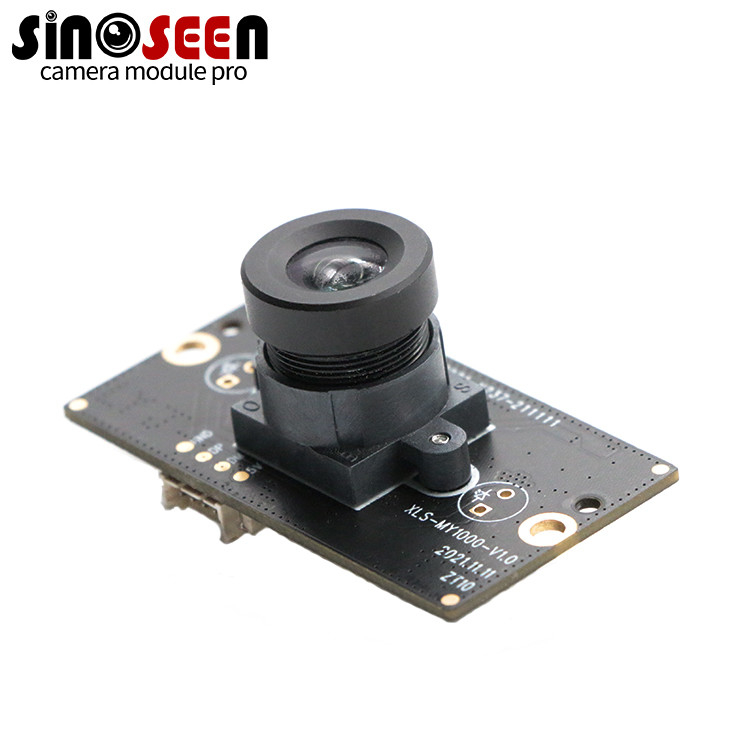

This is a USB camera module for video doorbell. With GC1054 sensor. The GC1054 is a high quality 720PCMOS image sensor for mobile phone camera applications and digital camera products. Compatibility is good, it is a cost-effective camera module. Dimensions are: 1/4 inch
Maximum resolution: 1280*720
feature: 1. High quality 720P CMOS image sensor 2. Features of high performance and low power consumption
Applications: cat-eye cameras, video doorbells, motion cameras, vehicle DVRs, monitors, toys, digital cameras and video cameras, video telephony and conference equipment, security systems, industrial and environmental systems, etc.
If you have similar needs, you can use this design to customize your own camera module, we have a professional engineering team to discuss with you various needs such as structure size and function. Customize various MIPI camera modules according to your own needs, you can define pinout/fov/size yourself
| Parameter | Typical value |
| Optical Format | 1/4inch |
| Pixel Size | 3.0um*3.0um |
| Active pixel array | 1280*720 |
| ADC resolution | 10bit ADC |
| Max Frame rate | 30fps@36MHz,DCLK |
| AVDD:3.15-3.45V(Typ.3.3V) | |
| Power Supply | DVDD:1.4-1.6(Typ.1.5V) |
| IOVDD:1.7-3.45V(Typ.1.8V) | |
| Power Consumption | 110mW@30fps,720p |
| SNR | 41.4dB |
| Dart Current | 200e-/s(60) |
| Sensitivity | 18000e-/lux-sec |
| Dynamic range | 70.7dB |
| Operating temperature | -30-80 |
| Stable Image temperature | 0-50 |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP/PLCC |
| Input clock frequency | 6-27MHz |
