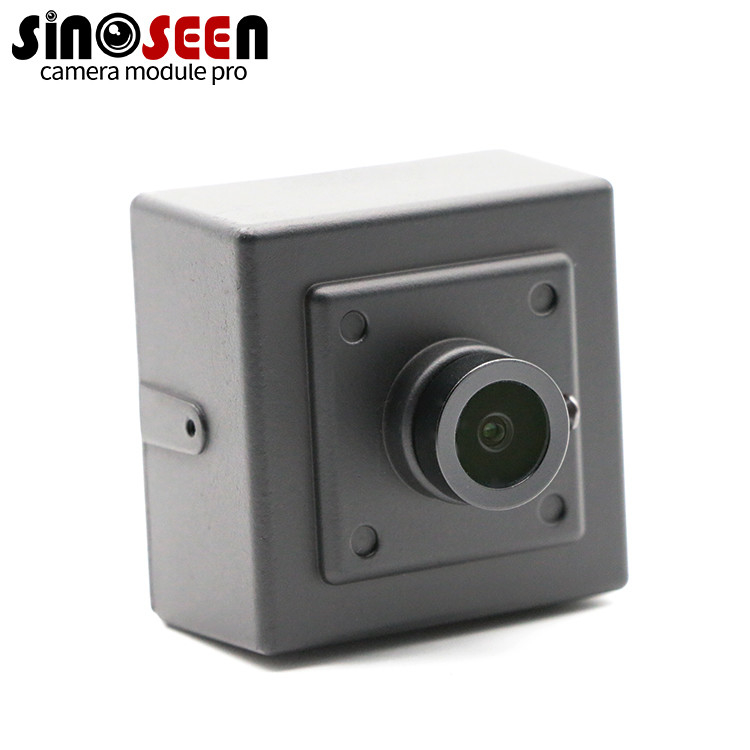

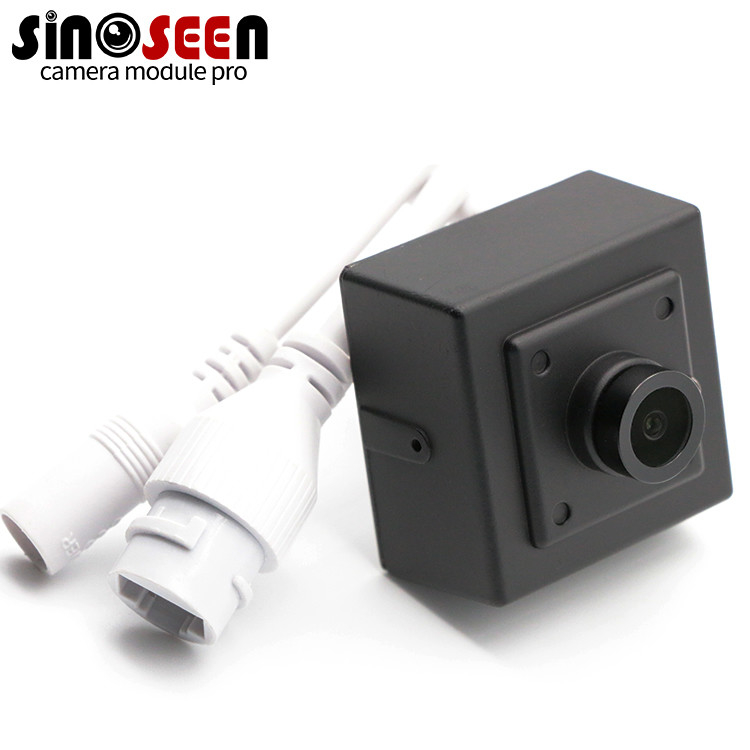

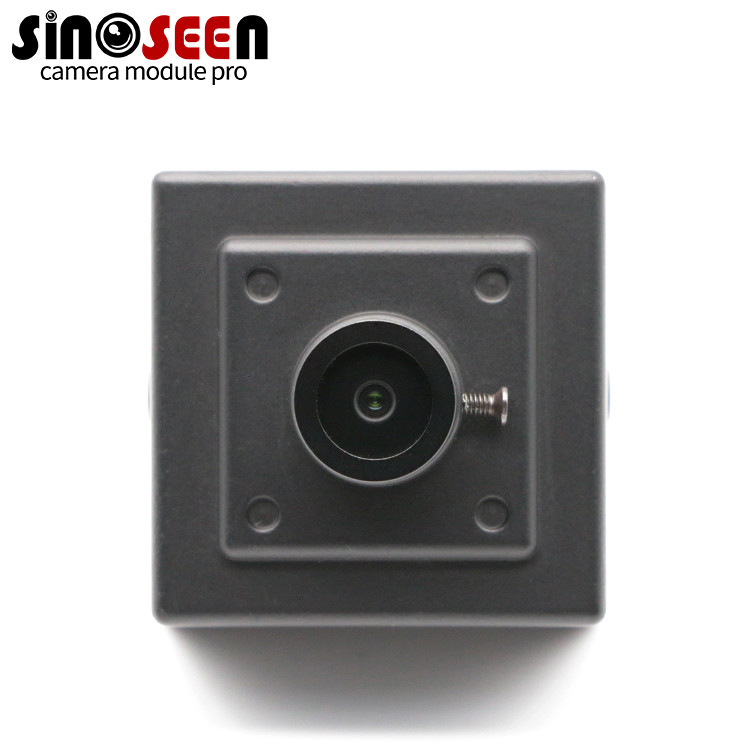

1/2.9 GC2053 Sensor 1920x1080P USB2.0 2MP Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GC2053-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.9’GC2053 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Pixel Size: | 2.8um X2.8um | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | USB2.0 2MP Camera Module,1920x1080P USB2.0 2MP Camera Module,1/2.9 GC2053 Sensor USB Camera Module |
||
Product Description
IPC 1/2.9 2Mega CMOS Image Sensor HD 1920x1080P USB Camera Module with GC2053 Sensor
USB camera module HD 1080P
This is an OEM customizable IPC network camera with USB3.0 interface, equipped with GC2053 sensor, GC2053 sensor is a high-quality 1080P CMOS image sensor, suitable for security camera products, digital camera products and mobile phone camera applications.
Full integration of high performance and low power features to create the best camera module for your design
Live cameras, car DVRs and various mobile apps.
Application :
Security camera
car
phone camera
Digital still and video cameras
Video telephony and conferencing equipment
Specification
|
Model No |
SNS-GC2053-V1.0 |
|
Sensor |
1/2.9’GC2053 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.8um x2.8um |
|
Image Area |
5808µm x 3288µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
