1920x1080P Large Aperture Night Vision Camera Module With 1/2.8 Sony IMX307 CMOS Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-CK-WD-307-20374-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Night Vision Camera Module | Sensor: | 1/2.8" SONY IMX307 |
|---|---|---|---|
| Resolution: | 1920x1080 | Dimensions: | Customizable |
| Pixel Size: | 2.9 µm (H) × 2.9 µm (V) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Night Vision |
| High Light: | 1920x1080P Night Vision Camera Module,Large Aperture Night Vision Camera Module,1/2.8 Sony IMX307 CMOS Camera Module |
||
Product Description

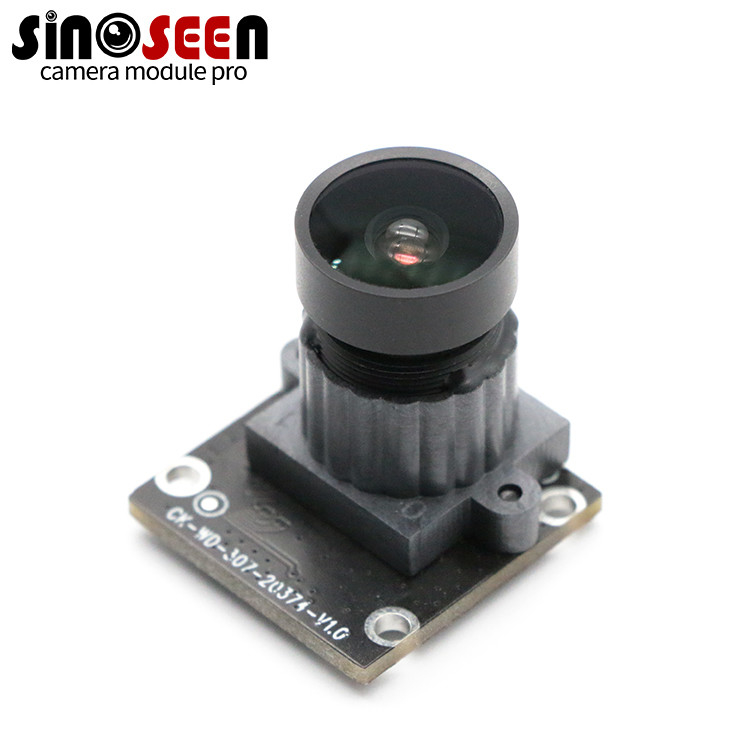

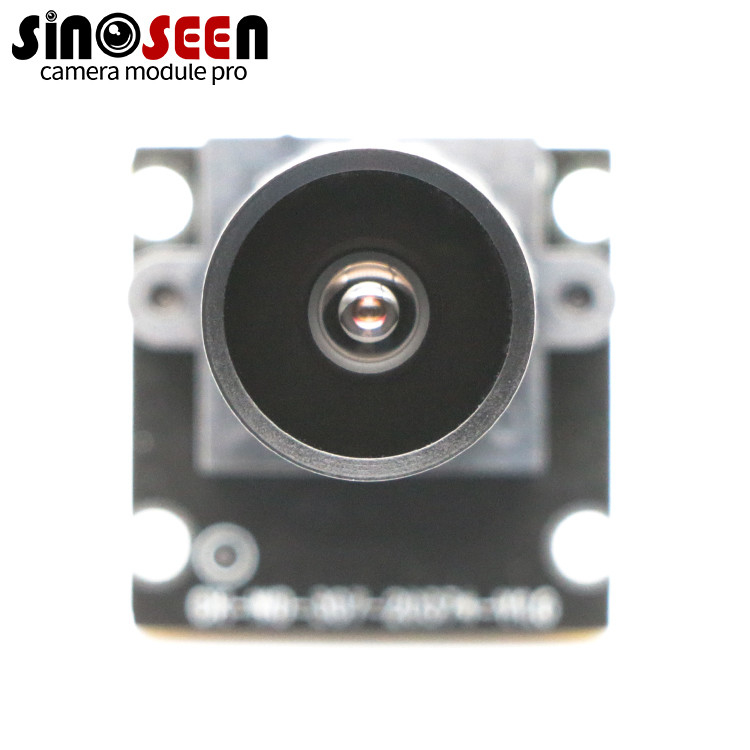

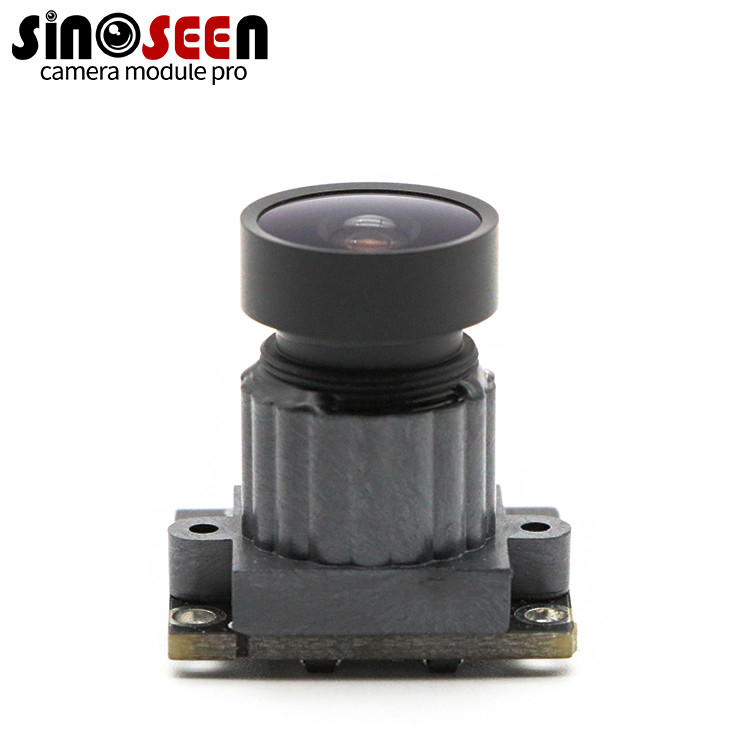

Sony IMX307 1/2.8CMOS 1920x1080P HD large aperture night vision module
HD night vision module
This is a large aperture night vision camera module, which can be connected to MIPI interface, very suitable for night applications, with starlight night vision effect, using sonyIMX307 sensor. Triple power supply, low power consumption. The chip features a variable electronic shutter for high sensitivity, low dark current and no smear.
It can be applied to surveillance cameras, FA cameras, industrial cameras, etc.
Specification
|
Model No |
SNS-CK-WD-307-20347-V1.0 |
|
Sensor |
1/2.8’’ SONY IMX307 CMOS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.9µm x 2.9µm |
|
Image area |
1937(H) x 1097(V) |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus/Manually adjustable |
|
Sensitivity |
7757 mV / lux-sec |
|
Interface type |
USB2.0 and SPI |
|
Adjustable parameter |
Brightness |
|
Lens |
Optical length: 18.6mm |
|
|
F/NO: 2.4 |
|
|
FOV: D=130° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 260mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
NOT Support |
|
Auto White Balance (AEB) |
NOT Support |
|
Auto Gain Control (AGC) |
NOT Support |
|
Dimension |
32mm x 32mm |
|
Storage temperature |
-40 ─ 85 ˚C |
|
Operating temperature |
-30 ─ 85 ˚C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
