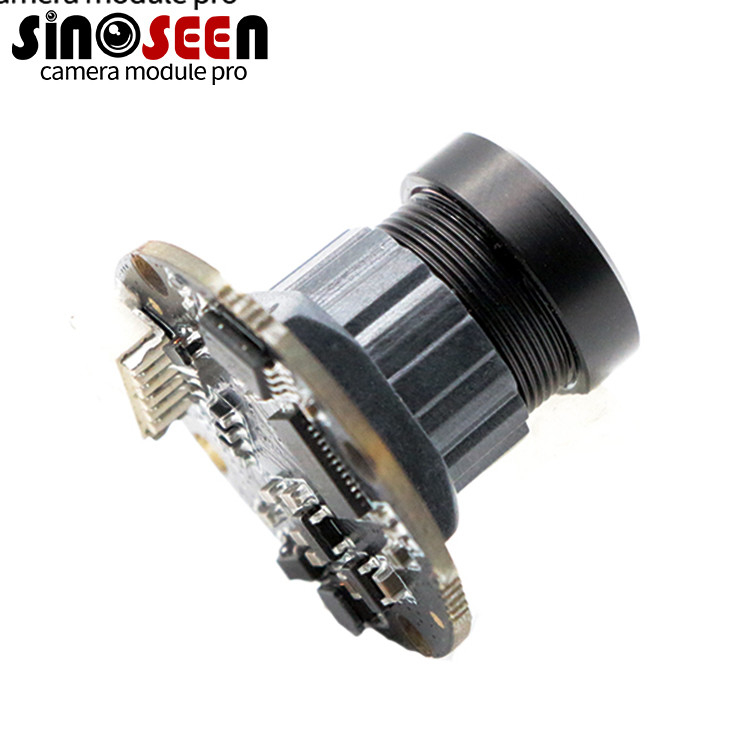

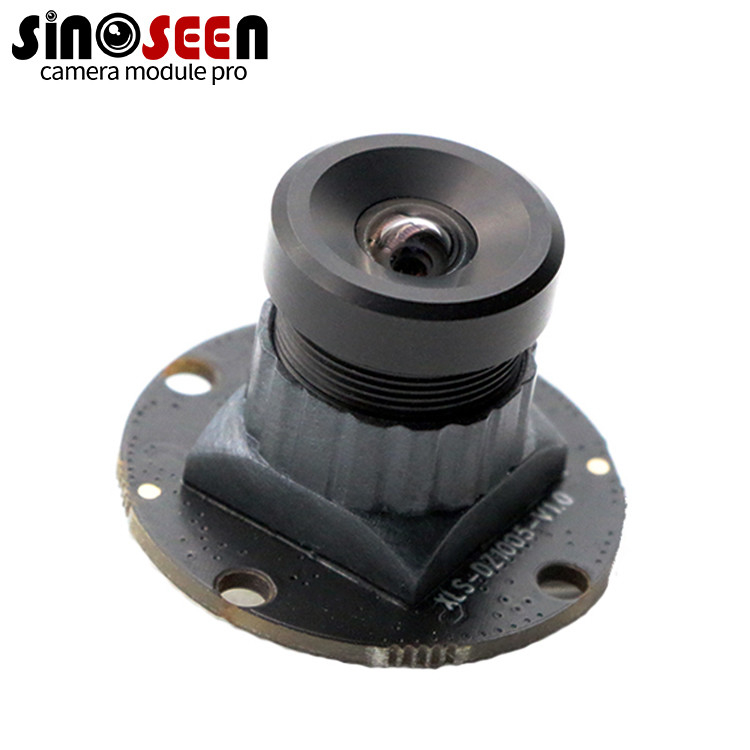

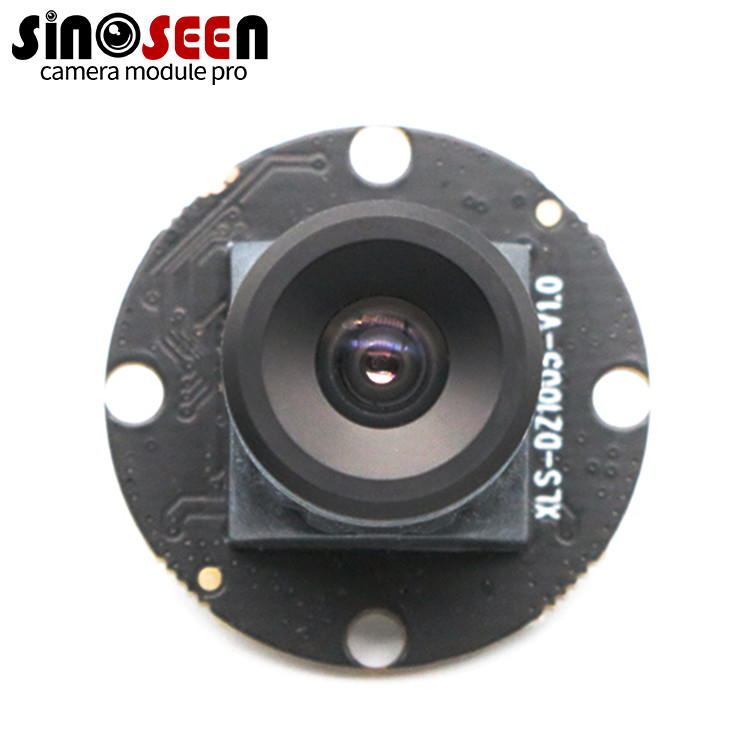

RoHS Ultra Mini GC1054 Sensor 1MP 720P USB Camera Module

RoHS Ultra Mini GC1054 Sensor 1MP 720P USB Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-DZ1005-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 1MP Camera Module Sensor: 1/4 GC1054
Resolution: 1280(H) X 720(V) Dimensions: (customizable)
Max Frame Rate: 30fps@36MHz,DCLK Focus Type: Fixed Focus
Interface: USB2.0 Feature: Low Power Consumption
High Light:

RoHS Ultra Mini USB Camera Module

,

1MP 720P USB Camera Module

,

GC1054 Sensor 1MP Camera Module

Product Description

Ultra Mini Custom 1MP Low Power 720P USB Camera Module with GC1054 Sensor



The USB camera module is equipped with GC1054 sensor, and the current interface is USB2.0.
The GC1054 is a high quality 720PCMOS image sensor for mobile phone camera applications and digital camera products. Stand out in action cameras, car DVRs and various mobile apps.
Size: 1/4 inch
Maximum resolution: 1280*720
feature:
1. High quality 720P CMOS image sensor
2. Features of high performance and low power consumption
application:
action camera
Car DVR
monitor
Toy
Digital still and video cameras
Video telephony and conferencing equipment
security system
Industrial and Environmental Systems


Specification
Parameter Typical value
Optical Format 1/4inch
Pixel Size 3.0um*3.0um
Active pixel array 1280*720
ADC resolution 10bit ADC
Max Frame rate 30fps@36MHz,DCLK
Power Supply AVDD:3.15-3.45V(Typ.3.3V)
  DVDD:1.4-1.6(Typ.1.5V)
  IOVDD:1.7-3.45V(Typ.1.8V)
Power Consumption 110mW@30fps,720p
SNR 41.4dB
Dart Current 200e-/s(60)
Sensitivity 18000e-/lux-sec
Dynamic range 70.7dB
Operating temperature -30-80
Stable Image temperature 0-50
Optimal Lens chief ray angle(CRA) 12(linear)
Package type CSP/PLCC
Input clock frequency 6-27MHz
