Custom IR AR0144 Sensor USB Camera Module 720P 60fps Global Shutter

Custom IR AR0144 Sensor USB Camera Module 720P 60fps Global Shutter

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GB331M-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4-Inch 1.0 Mp CMOS AR0144
Resolution: 1MP 1280(H) X 800(V) Dimensions: Customizable
Pixel Size: 3.0um Focus Type: Fixed Focus
Interface: USB2.0 Feature: Global Shutter
High Light:

AR0144 Sensor USB Camera Module

,

Global Shutter USB Camera Module

,

720P 60fps Global Shutter Camera Module

Product Description

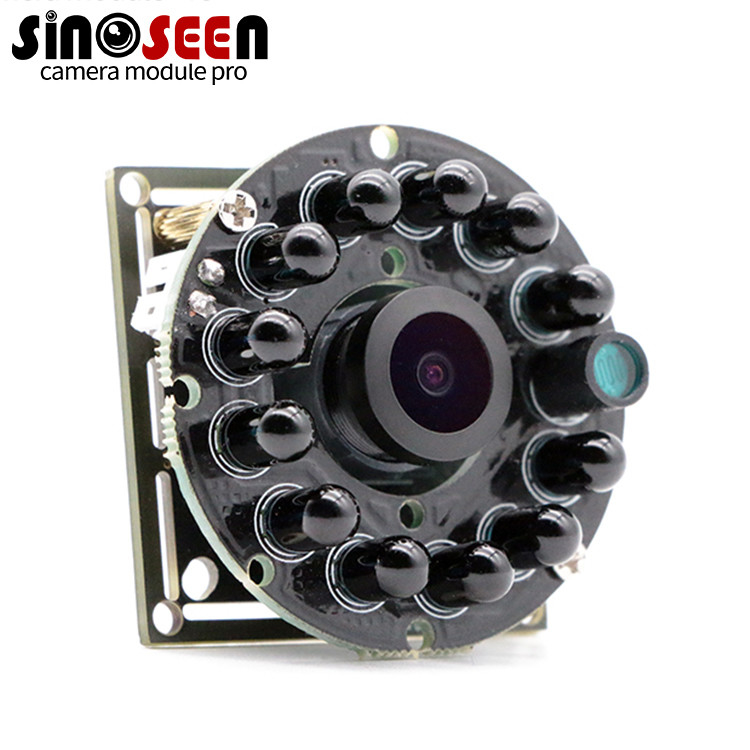

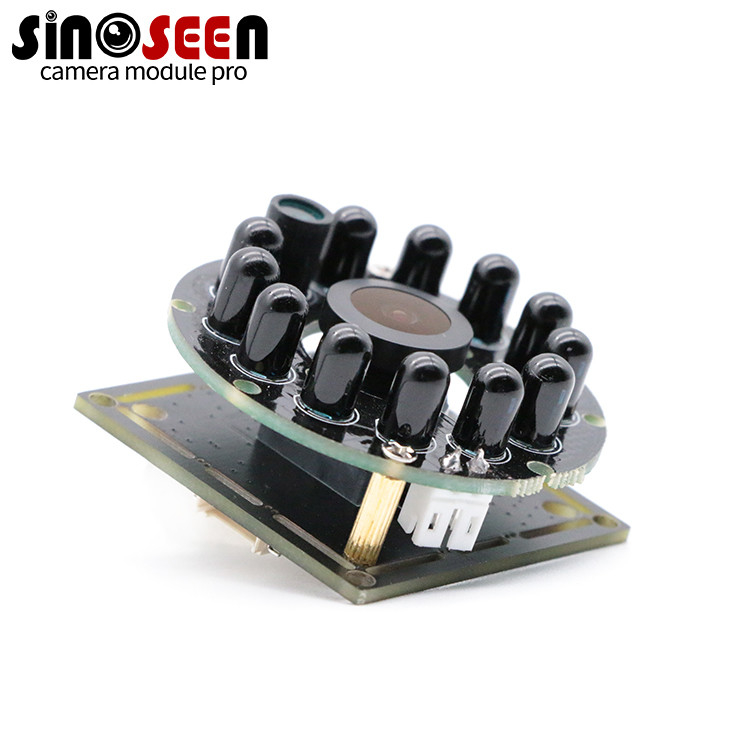

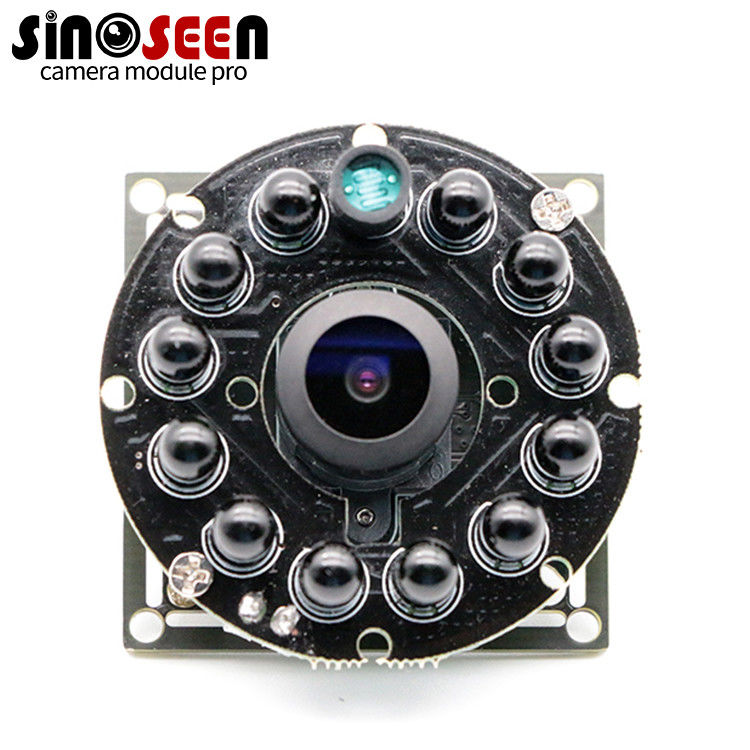

Custom IR AR0144 Sensor USB Camera Module 720P 60fps Global Shutter



This is a custom infrared USB camera module 720P 60fps multi-function global shutter with AR0144 sensor HD video 1280x800 fixed focus infrared fill light camera module, support day and night switching, suitable for identification, monitoring and other functions
feature:
1. Excellent low light and infrared performance
2.HD video (720p60) 2-lane MIPI or parallel data interface
3. Programmable Control of the Region of Interest (ROI)
4. Horizontal and vertical mirroring, windowing and pixel binning
5. On-chip automatic exposure control for any programmable ROI
6.5x5 statistical engine for any programmable ROI
7. Flexible control of row and column skip mode
8. On-chip slave or synchronous trigger mode
9. Built-in strobe control
10. On-chip Phase Locked Loop (PLL)
If you have similar requirements, you can use this design to customize your own USB camera module, we have a professional engineering team to discuss with you various requirements such as structure size and function, you can define PINOUT/FOV/size yourself



Specification

Model No

SNS-GB331M-V1.0

Sensor

1/4-Inch 1.0 Mp CMOS AR0144

Pixel

1 Mega Pixel

Most effective pixels

1280H x 800V

Pixel Size

3.0µm x 3.0µm

Chroma

COLOR Image

Compression format

MJPG/YUY2

Resolution & Frame rate

See above

Shutter Type

Global shutter

Focus type

Auto focus

S/N ratio

38dB

Dynamic range

63.9dB

Protocol

Plug-&-Play (UVC compliant)

Interface type

USB2.0 high speed

Lens

Lens Size: 1/4 inch

FOV: 90°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Dimension

customizable

Storage temperature

–40°C to +85°C

Operating temperature

–40°C to +105°C

USB cable length

Default

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/
Definition/Gamma/White balance

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Custom IR AR0144 Sensor USB Camera Module 720P 60fps Global Shutter 0Custom IR AR0144 Sensor USB Camera Module 720P 60fps Global Shutter 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current avaliable global shutter USB camera module





Omnivision                       OV7251        0.3MP         Monochrome(black and white)



Omnivision                       OV9281           1MP         Monochrome(black and white)



ON Semiconductor          AR0144            1MP         Monochrome(black and white) or RGB color



Omnivision                      OG02B1B         2MP         Monochrome(black and white)



Omnivision                      OG02B10          2MP        RGB color
