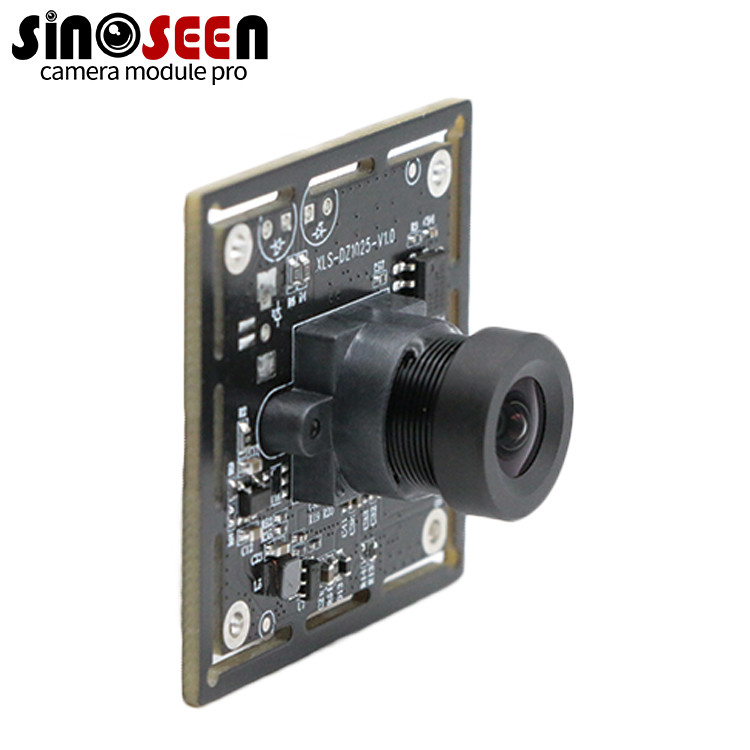

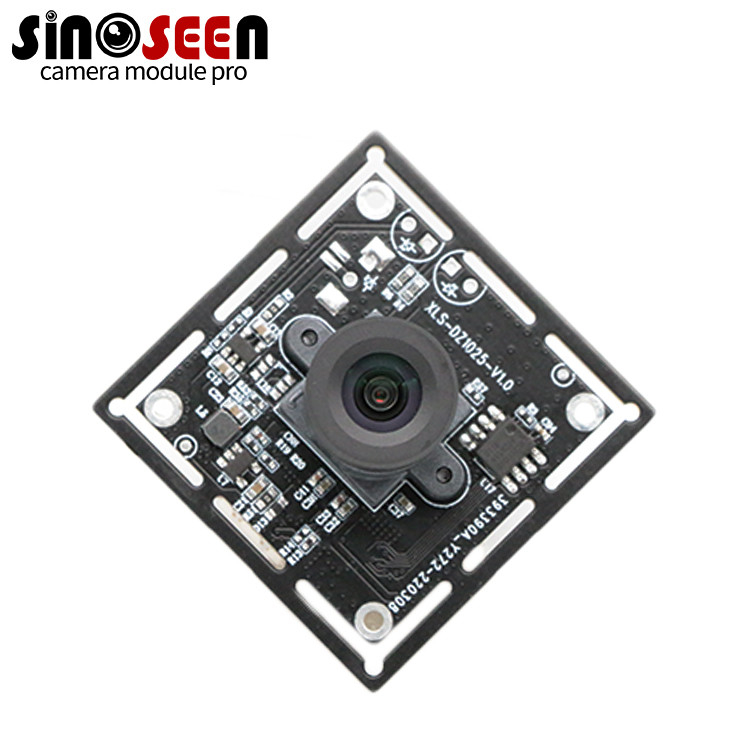

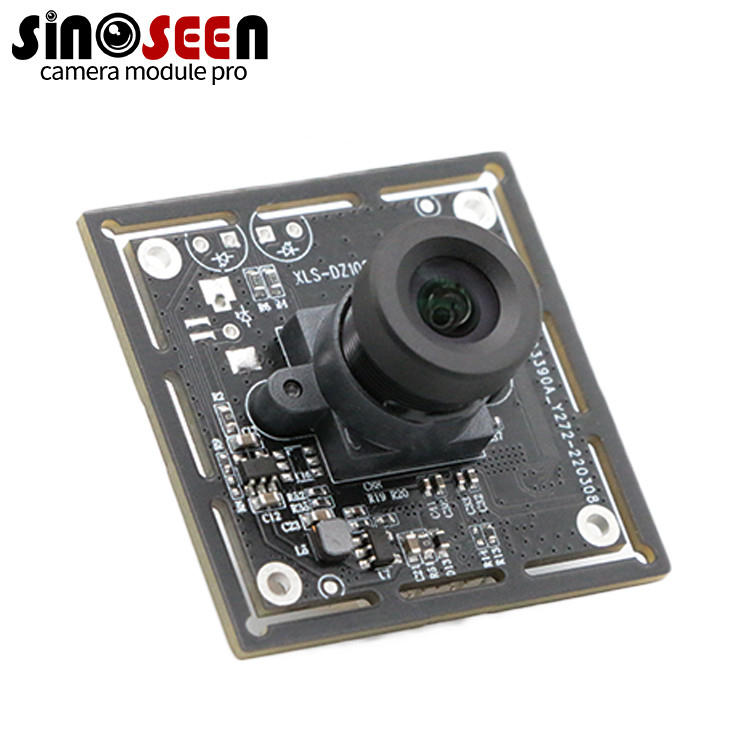

1080P WDR GC2053 2MP Camera Module 30fps With Electronic Rolling Shutter

1080P WDR GC2053 2MP Camera Module 30fps With Electronic Rolling Shutter

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-G2053-V1

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.9’GC2053 CMOS
Resolution: 1920(H) X 1080(V) Dimensions: (customizable)
Pixel Size: 2.8um X2.8um Focus Type: Fixed Focus
Interface: USB2.0 Feature: HDR
High Light:

30fps 2MP Camera Module

,

GC2053 2MP Camera Module

,

1080P WDR USB Camera Module

Product Description

Low Power 1080P WDR GC2053 30fps Electronic Rolling Shutter USB Camera Module​



GC2053 2MP Camera Module
This is a high quality gc2053 camera module. The module has 1920x1080 pixels and fully integrates high performance and low power consumption, making this module an optimized design for reduced implementation and longer battery life in action cameras, car dvr and various mobile applications. In fact, the application of cameras in the security and automotive fields is very different from the application of mobile phones. Many surveillance cameras are installed in outdoor environments where cars are exposed to sunlight for extended periods of time. Therefore, the operating temperature of image sensors often exceeds 60°C, or even higher. The module also has a wide dynamic anti-glare function. In addition, scenes such as surveillance and car operation often appear at night, which also places high demands on the performance of image sensors in dark conditions. How to control or solve the noise, black spot, sensitivity and stability issues in the above application environment? This module can improve the image quality of the sensor, enhance the consumer experience, and become the key to the success of security or in-vehicle products.

Specification
Model No SNS-G2053-V1
Sensor 1/2.9’GC2053 CMOS
Pixel 2 Mega Pixel
Most effective pixels 1920(H) x 1080(V)
Pixel Size
2.8um x2.8um
Image Area 5808µm x 3288µm
Compression format YUV2 / MJPG
Resolution See above
Frame rate See above
Shutter Type Electronic rolling shutter
Focus type Fixed focus
S/N ratio TBDdB
Dynamic range TBDdB
Sensitivity 3700 mV/lux-sec
Interface type USB2.0

Adjustable parameter
Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure
Power supply requirement
AVDD28: 2.7~3.3V(Typ.2.8V)
DVDD18: 1.15~1.3V(Typ.1.2V)
IOVDD: 1.7~3.0V(Typ.1.8V)
Audio frequency Optional
Power supply USB BUS POWER
Power consumption DC 5V, 200mA
Main chip DSP/SENSOR/FLASH
Auto Exposure Control (AEC) Support
Auto White Balance (AEB) Support
Auto Gain Control (AGC) Support
Storage temperature
0~60℃
Operating temperature
-20~80℃
USB cable length Default
Support OS WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
