Global Shutter 2MP 60FPS USB Camera Module OG02B10 Sensor For Agriculture Drone
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM975M-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.9" Omnivision OG02B10 |
|---|---|---|---|
| Resolution: | 2MP (1600*1200) | Lens FOV: | 95°(optional) |
| Focus Type: | Fixed Focus | Interface: | USB2.0 |
| Feature: | Global Shutter | ||
| High Light: | 60FPS USB Camera Module,OG02B10 USB Camera Module,Agriculture Drone Global Shutter Camera Module |
||
Product Description
Global Shutter USB OEM 2MP 60FPS YUV2 MJPG with OG02B10sensor for Agriculture Drone

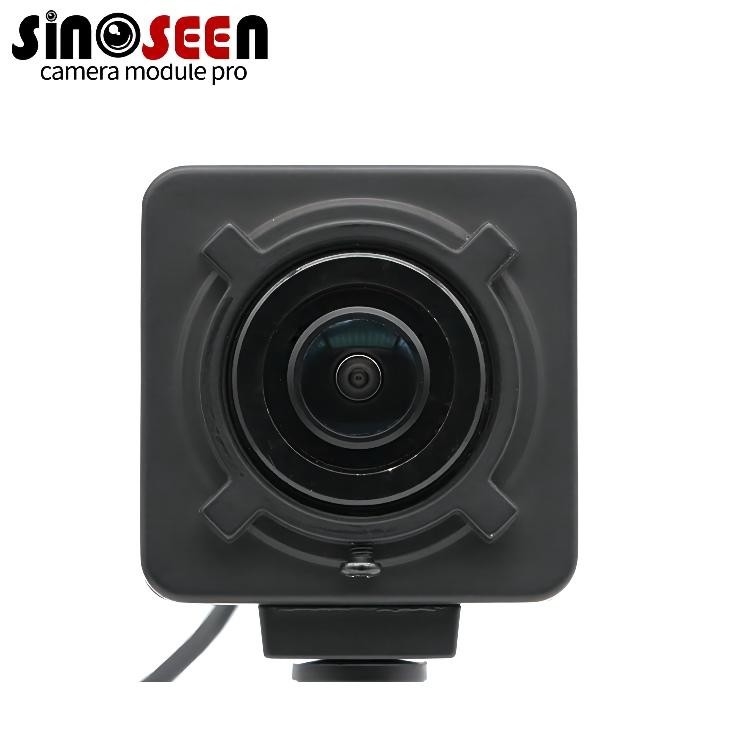

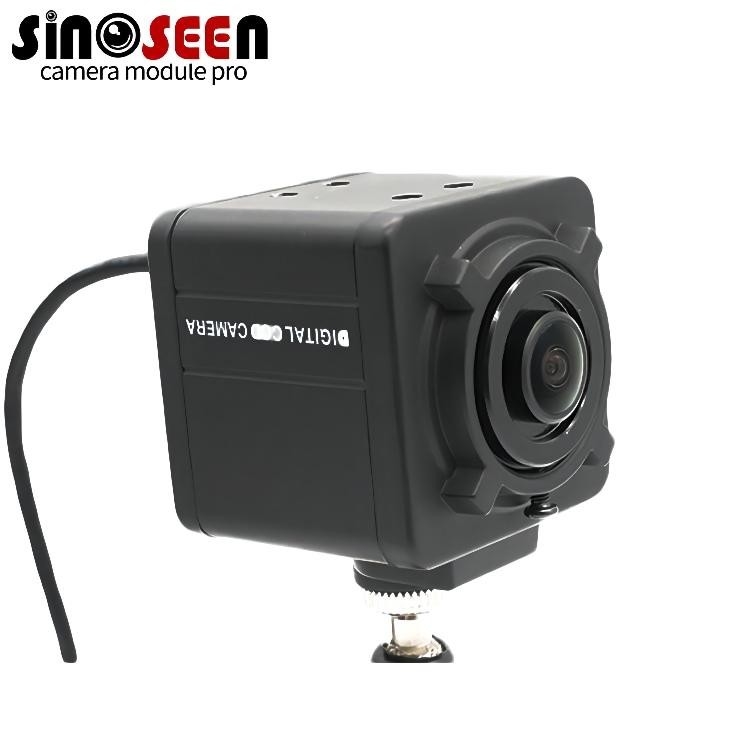

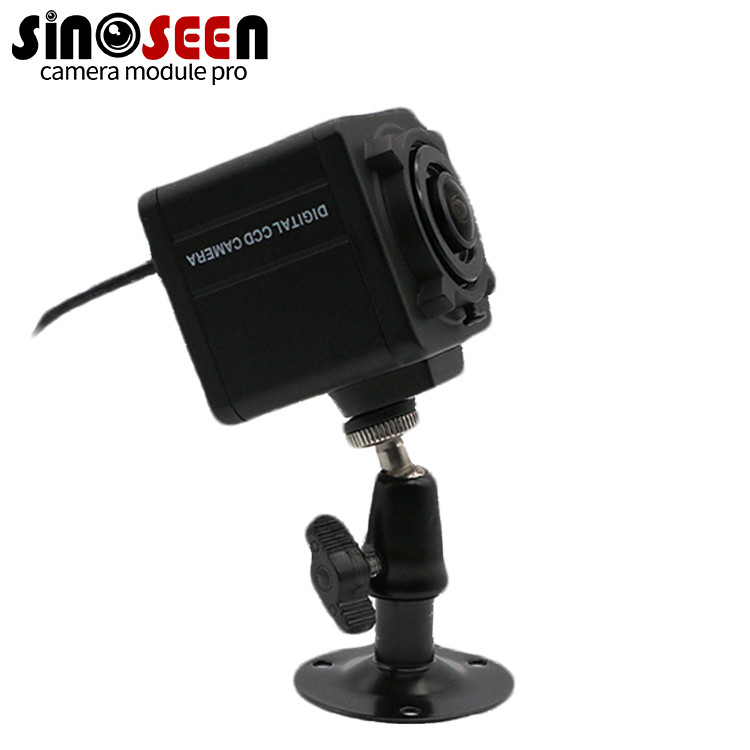

OG02B10 Camera Module
This is our newly developed 2 million global shutter USB2.0 module. It effectively meets the needs of consumer and industrial computer vision applications with accurate color and near-infrared imaging capabilities, while meeting the requirements of low power consumption. The field of machine vision is growing strongly, driven by growing demand for industrial automation and new application areas such as AR and VR. At the same time, computer imaging algorithms are becoming more sophisticated, which in turn increases the need for image” sensors performance requirements”. This module with a wide-angle lens is ideal for crop and field monitoring equipment such as agricultural drones that must capture high-resolution color images. If you want to capture fast-moving or distant targets, this module Excellent.
Specification
|
Model No |
SNS-GM975M-V1 |
|
Sensor |
1/2.9’’ Omnivision OG02B10 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1600(H) x 1200(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed Focus/Manually Adjustable |
|
Clock Frequency |
6 to 27 MHz |
|
Chief Ray Angle (CRA) |
15° |
|
Microphone |
Optional |
|
Interface type |
USB 2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma |
|
Lens |
Lens Structure: 6G |
|
|
Lens Size: 1/2.5 inch |
|
|
H FOV: 95° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, <200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
-20～85℃ |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
