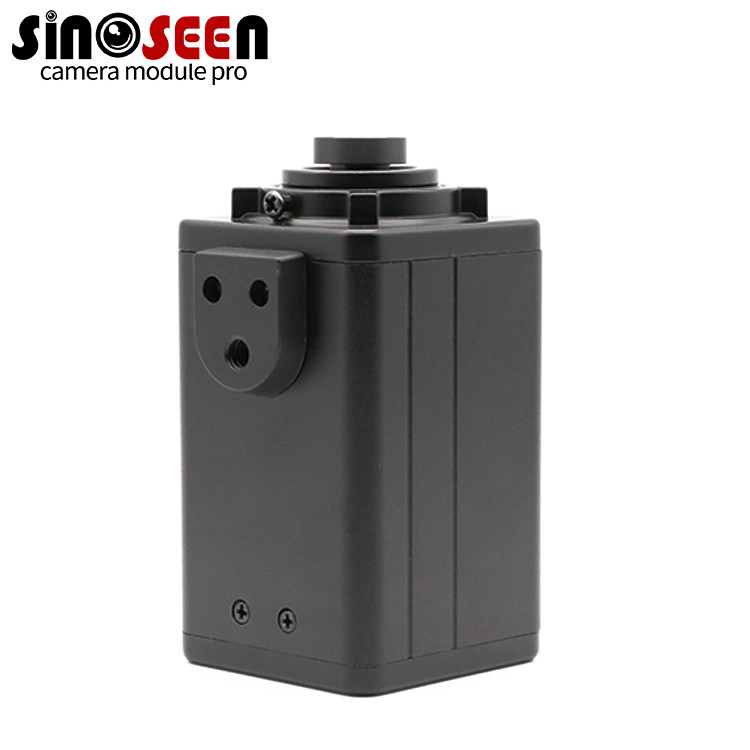

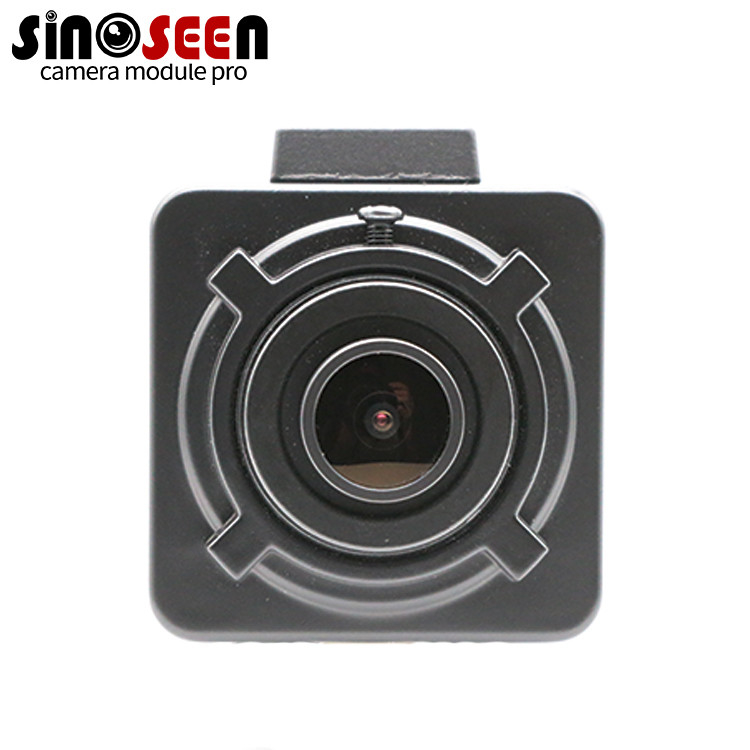

• 1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure
  • 1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure
  • 1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure
  • 1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure
1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure

1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-WK331M-V1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: USB Camera Module Sensor: 1/4" ON Semiconductor AR0144
Resolution: 1MP 1600(H)X1200(V) Dimensions: Customizable
Lens FOV: 95°(optional) Focus Type: Auto Focus
Interface: USB2.0 Feature: Global Shutter
High Light:

Shutter USB Camera Module

,

1Mp FF USB Camera Module

,

60fps Global Shutter Camera Module

Product Description

Low Power 1/4 Inch 1Mp FF AR0144 1280x800 60fps Global Exposure



We introduce a new camera module with AR0144 sensor that achieves industry-leading performance levels. This new product captures clear and accurate images without artifacts in bright and low-light conditions. Its high shutter efficiency and signal-to-noise ratio substantially reduce ghosting and noise interference, improving overall image quality. The module features an innovative global shutter design optimized to meet increasingly stringent requirements, capturing accurate and fast images in both static and dynamic scene applications. Its sensors are available in monochrome and color, and are extremely compact in size for easy integration into space-constrained designs. This module has a wide range of features and functions to meet the increasingly diverse needs of end applications. In static applications such as barcode scanners, it is easy to design into handheld products, ensuring power, time and convenience for the first scan. In dynamic applications such as drones, the sensor's low power consumption can extend the charging time interval, and its imaging performance can better map the environment and avoid serious collisions. Finally, in 3D camera and AR/VR designs, the module can provide a cost-effective and small size solution for capturing dual images for 3D mapping or depth sensing. It also has adjustable automatic exposure control and automatic shading correction, among other things.



Specification

Model No

SNS-WK331M-V1

Sensor

1/4’’ ON Semiconductor  AR0144

Pixel

1 Mega Pixel

Most effective pixels

1280H x 800V

Pixel Size

3.0µm x 3.0µm

Chroma

COLOR Image

Compression format

MJPG/YUY2

Resolution & Frame rate

See above

Shutter Type

Global shutter

Focus type

Auto focus

S/N ratio

TdB

Dynamic range

64dB

Protocol

Plug-&-Play (UVC compliant)

Interface type

USB2.0 high speed

Lens

Lens Size: 1/4 inch

FOV: 95°

Thread Size: M12*P0.5

Audio frequency

Optional

Power supply

USB BUS POWER

Power consumption

DC 5V, 180mW

Main chip

DSP/SENSOR/FLASH

Dimension

customizable

Storage temperature

-20~85℃

Operating temperature

0°C to 60°C

USB cable length

Default

Adjustable parameter

Brightness/Contrast/Color saturation/Hue/
Definition/Gamma/White balance

Support OS

WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

1/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure 01/4 Inch USB Camera Module 1Mp FF AR0144 1280x800 60fps Global Exposure 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request





Current avaliable global shutter USB camera module





Omnivision                       OV7251        0.3MP         Monochrome(black and white)



Omnivision                       OV9281           1MP         Monochrome(black and white)



ON Semiconductor          AR0144            1MP         Monochrome(black and white) or RGB color



Omnivision                      OG02B1B         2MP         Monochrome(black and white)



Omnivision                      OG02B10          2MP        RGB color
