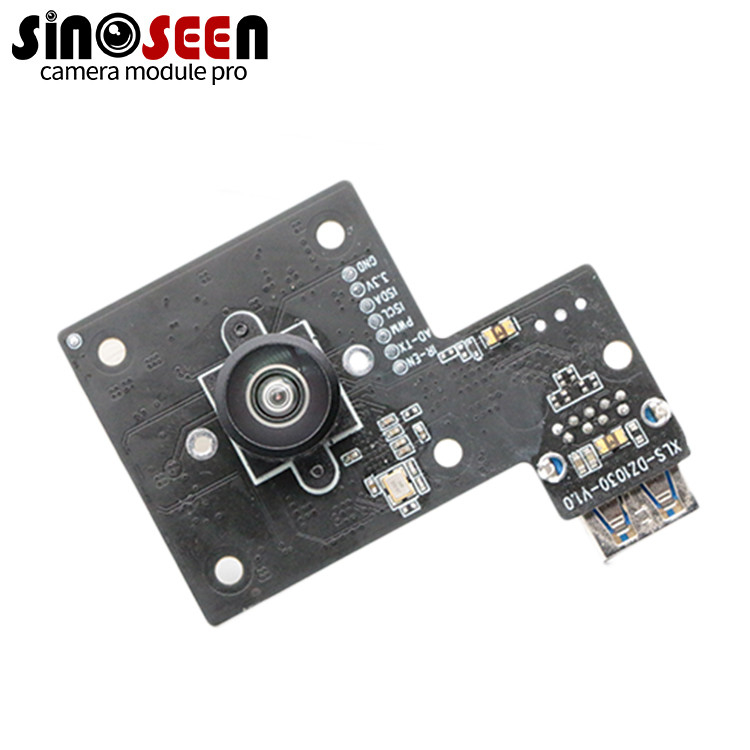

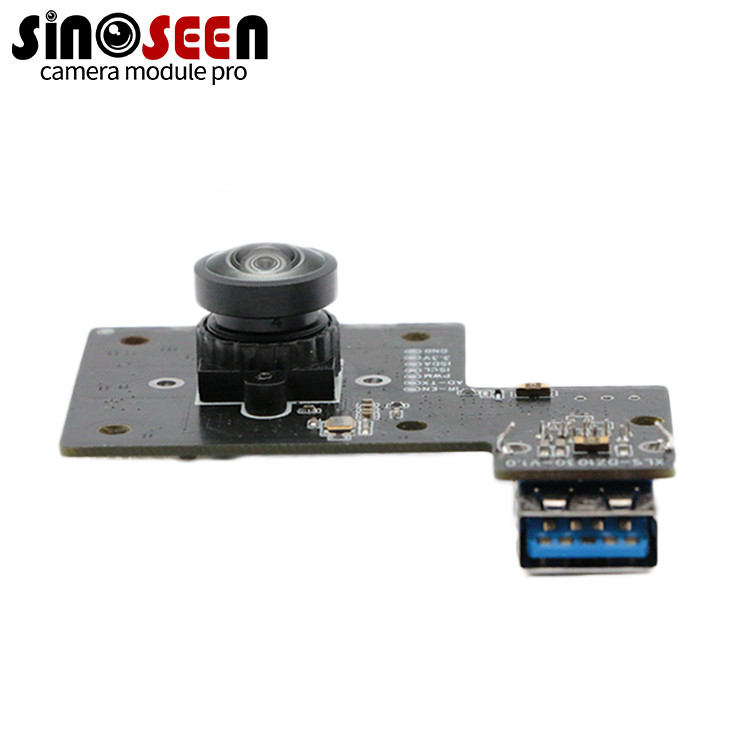

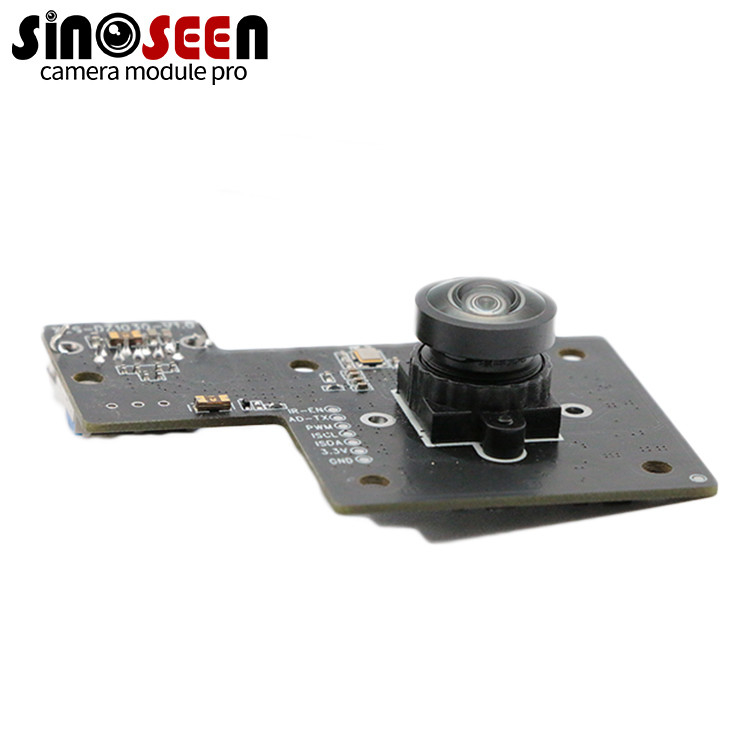

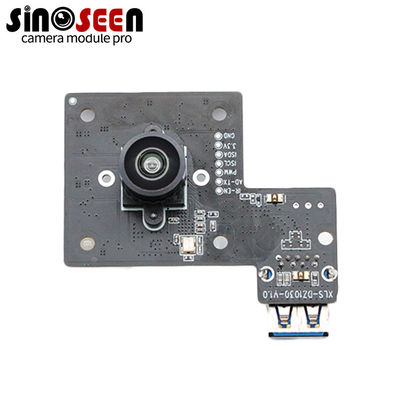

USB3.0 OV7251 Sensor 48p Global Shutter Camera Module For Industrial Inspection
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1030-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/7.5" Omnivision OV7251 |
|---|---|---|---|
| Resolution: | 0.3MP 640(H) X 480(V) | Dimensions: | 57.5mmx46.3mm |
| Lens FOV: | 160°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | OV7251 Global Shutter Camera Module,USB3.0 Global Shutter Camera Module,Industrial Inspection OV7251 Camera Module |
||
Product Description
usb3.0 ov7251 sensor 48p global shutter camera module for industrial inspection
global shutter camera modules
This is a usb3.0 camera module using OmniVision OV7251-2B global shutter image sensor. It can provide 640×480 resolution at 120fps and has a single-channel MIPI serial output interface. This product can simultaneously provide QVGA (320×240) BIN mode 180fps, QQQVGA (160×120) BIN and SKIP mode 360fps. The module offers 99.96% shutter efficiency and features a light guide that improves the angular response of light capture for better optical performance. The module is suitable for use cases such as general machine vision, IoT, AR/VR, drones, barcodes, and real-time localization and mapping (SLAM).
Specification
|
Model No |
SNS-DZ1030-V1.0 |
|
Sensor |
1/7.5’’ Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480@120fps; 320x240@200fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
USB2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 160° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
