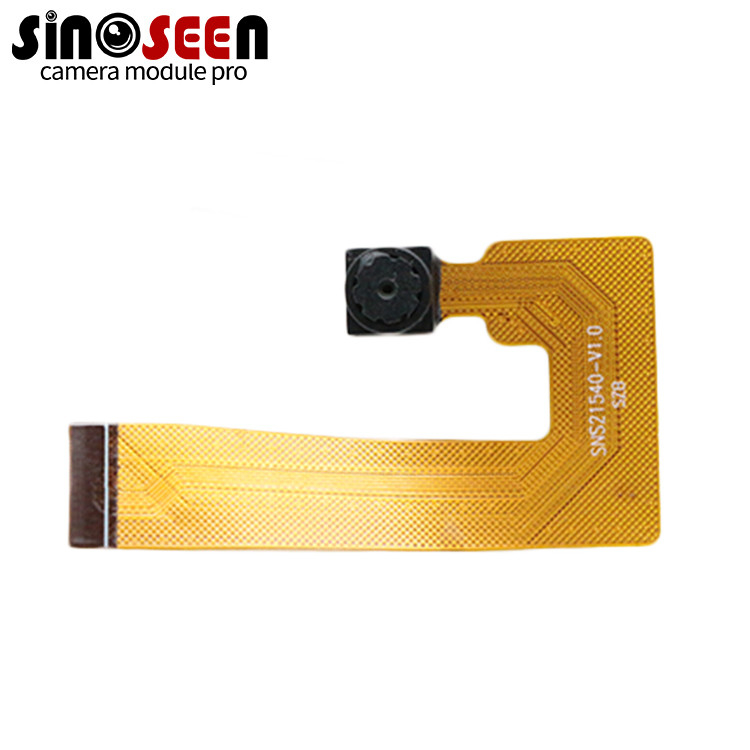

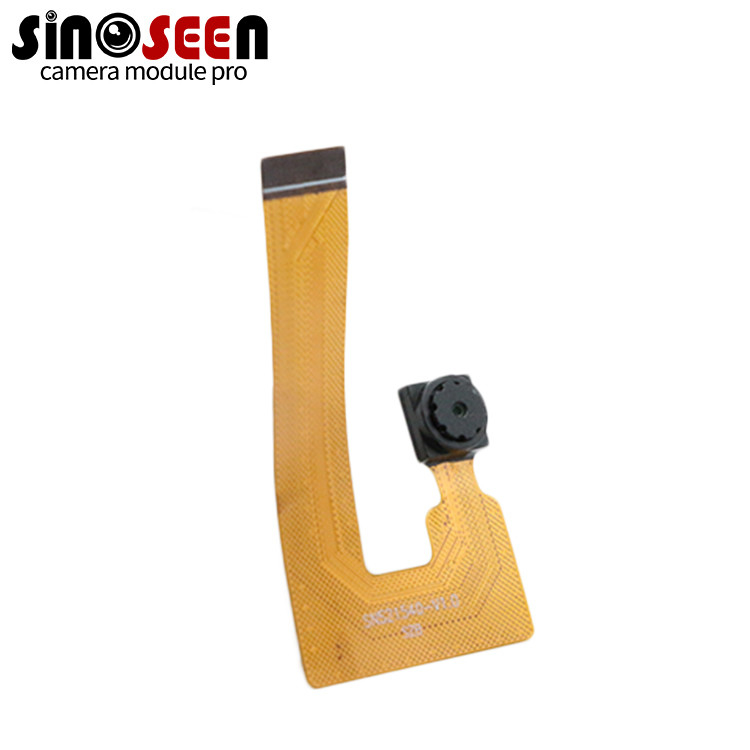

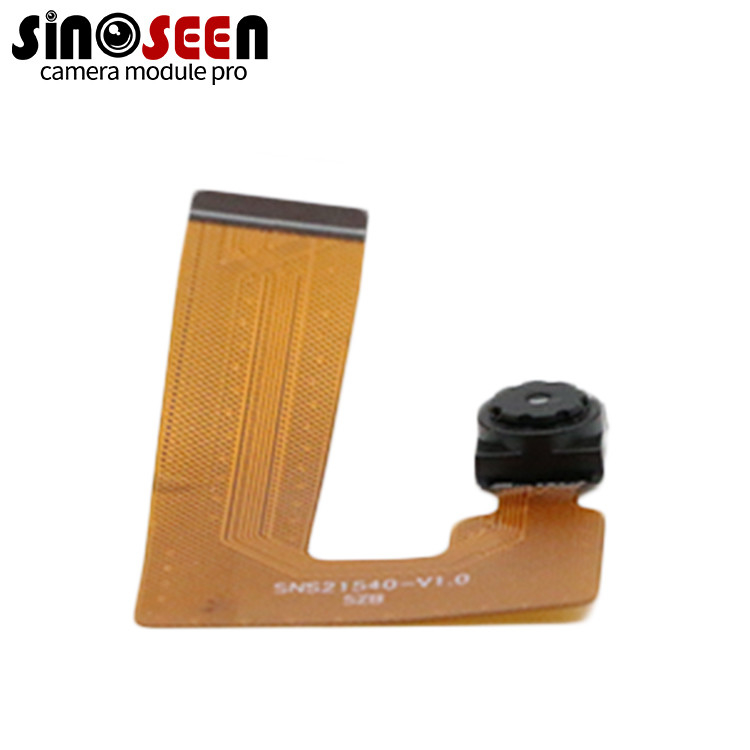

5MP HD GC5035 Sensor MIPI OV5648 Camera Module For Learning Machine
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-21540-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 5mp Camera Module | Sensor: | 1/4' Omnivision OV5648 |
|---|---|---|---|
| Resolution: | 5MP 2592(H) X 1944(V) | Dimensions: | (customizable) |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | Mipi Camera Module | Feature: | High-definition |
| Highlight: | Learning Machine OV5648 Camera Module,HD OV5648 Camera Module,Learning Machine MIPI Camera Module |
||
Product Description
5mp HD gc2053/ov5648 sensor automatic white balance mipi interface camera module learning machine
5MP mipi interface camera module
This is our newly developed camera module, 5MP pixel, using mipi interface, using FOV=60° lens fixed focus, with Omnivision OV5648 sensor, the picture quality is very good and stable. And this mod is very affordable. Can be used for tablet computers, learning machines, children's education, interactive learning machines, etc.
| Model No | SNS-21540-V1.0 |
| Sensor | 1/4’’ Omnivision OV5648 |
| Pixel | 5 Mega Pixel |
| Most effective pixels | 2592(H) x 1944(V) |
| Pixel Size | 1.4µm x 1.4µm |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | 36dB |
| Dynamic range | 72 dB @ 8x gain |
| Sensitivity | 690mV / lux-sec |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
| Lens | TTL: 23.89MM |
| Lens Size: 1/3 inch | |
| DFOV: 80° | |
| Thread Size: M12*P0.5 | |
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mW |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature | -20°C to 70°C |
| Operating temperature | 0°C to 60°C |
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
