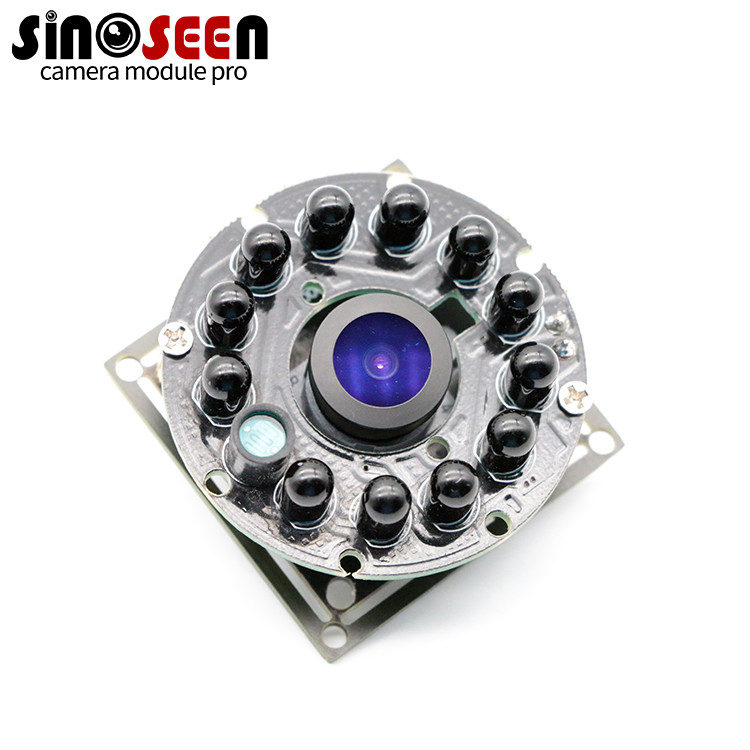

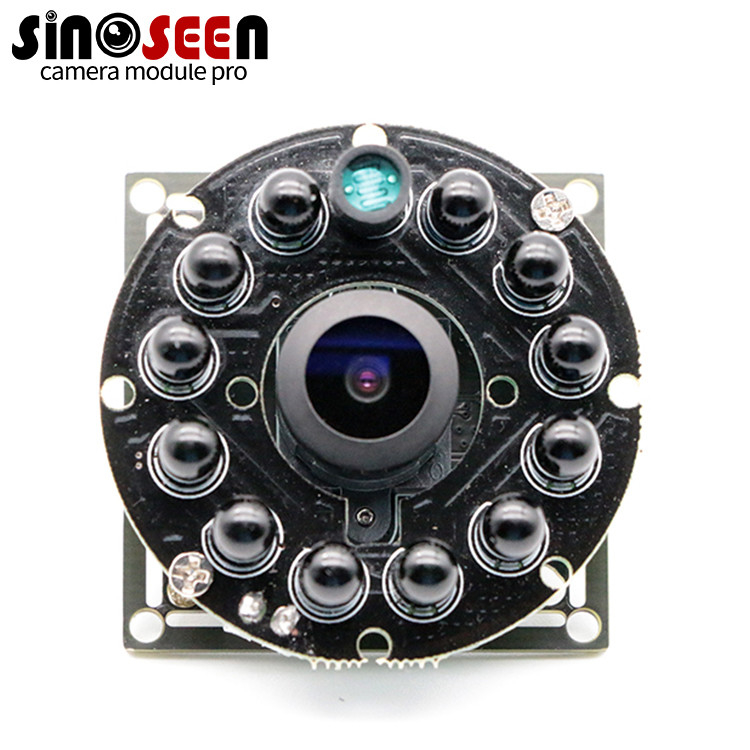

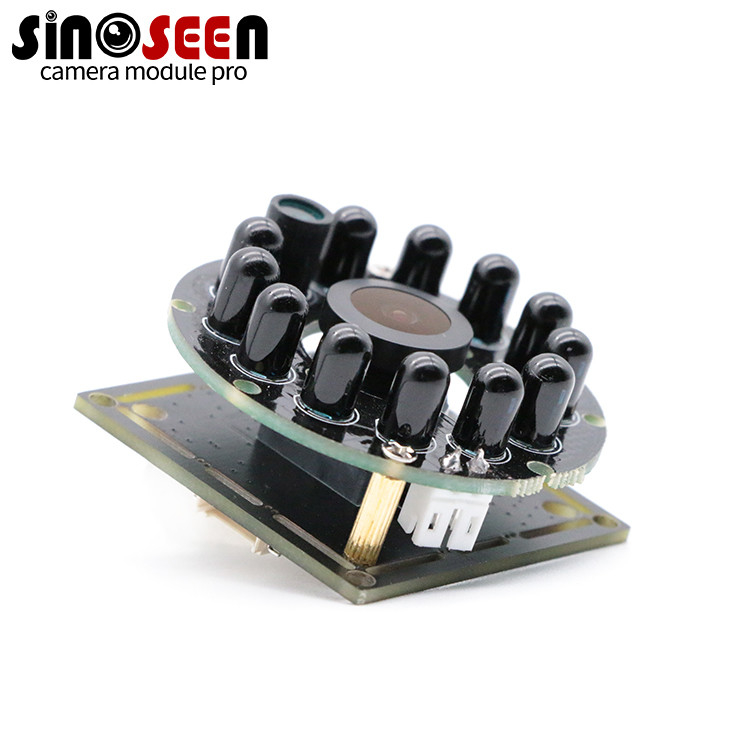

Infrared Fill Light Usb Ir Camera Module 1mp Ar0144 Sensor 720p 60fps Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB331M-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4-Inch 1Mp CMOS AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Pixel Size: | 3.0um | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | Usb Ir Camera Module 1mp,Ar0144 Usb Ir Camera Module,CMOS Global Shutter Camera Module |
||
Product Description
Infrared Fill Light Ir 1mp Ar0144 Sensor Usb Camera Module 720p 60fps Global Shutter
AR0144 USB Camera Module
- Infrared fill light is used to illuminate objects in low light or total darkness. It allows the camera to capture images or video in environments where conventional light sources are insufficient.
- Uses a global shutter, which is an image sensor technology that allows all pixels in the sensor to be exposed simultaneously, helping to prevent motion blur on fast-moving objects.
This camera module is designed for applications requiring low-light imaging or fast motion capture, such as surveillance, industrial inspection, or robotics.
Specification
|
Model No |
SNS-GB331M-V1.0 |
|
Sensor |
1/4-Inch 1Mp CMOS AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Auto focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
customizable |
|
Storage temperature |
–40°C to +85°C |
|
Operating temperature |
–40°C to +105°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
