GC20A3T SC132GS Sensor MIPI Camera Module Full HD 120FPS Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | ROHS |
| Model Number: | SNS-21605-1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | GC20A3T+SC132GS |
|---|---|---|---|
| Resolution: | 2MP 1928H X 1088V | Dimensions: | Customizable |
| Lens FOV: | 80°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Full HD |
| High Light: | MIPI Camera Module 120FPS,Global Shutter MIPI Camera Module,SC132GS Full HD Camera Module |
||
Product Description

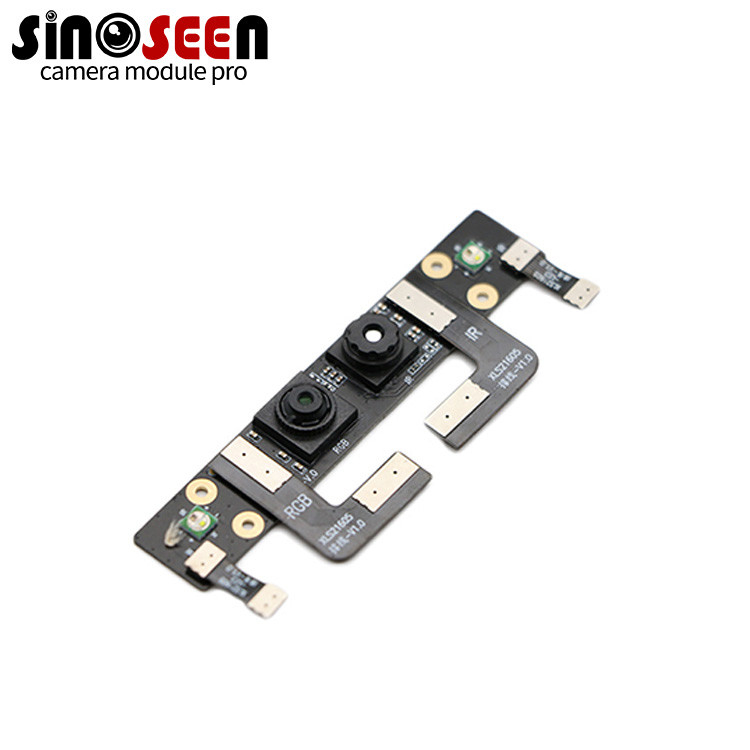

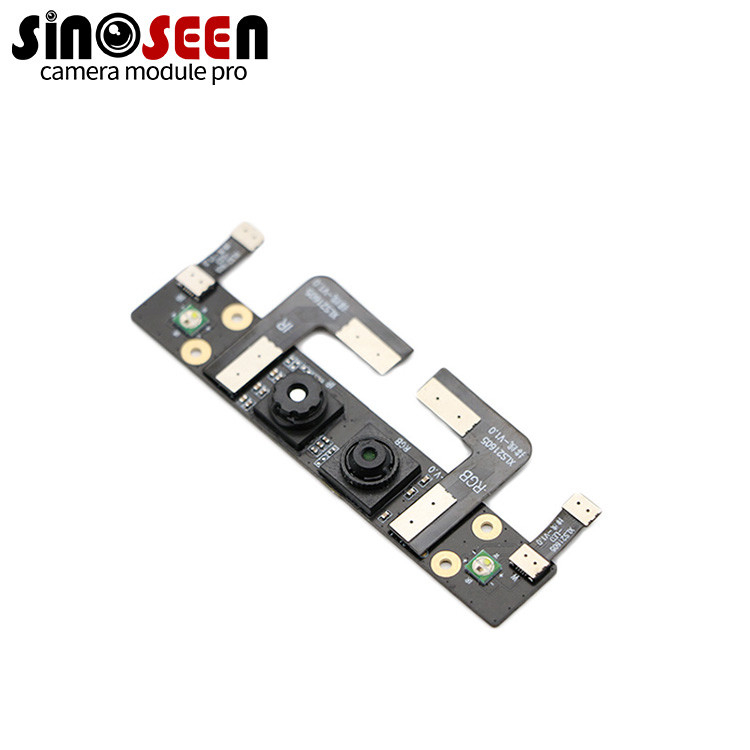

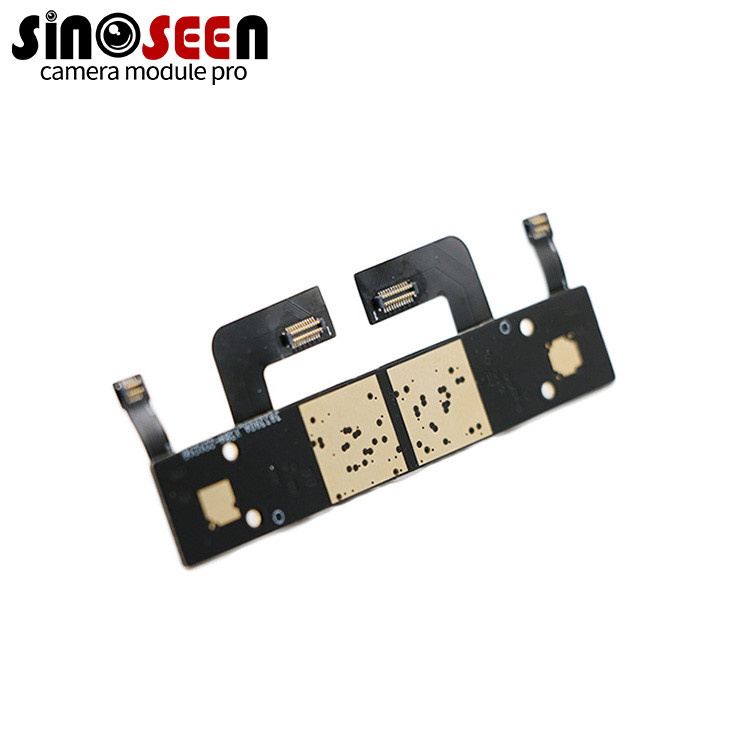

MIPI Camera Module GC20A3T+SC132GS Sensor Full 120FPS Global Shutter
This is a camera module equipped with a Sony SC132GS sensor, a global shutter image sensor capable of capturing images at 120 frames per second (FPS). Global shutter technology enables the camera to capture images without any motion blur, making it ideal for applications that require high-precision capture of fast-moving objects.
The GC20A3T+SC132GS module uses the MIPI (Mobile Industry Processor Interface) interface, a standard for connecting components of mobile devices such as smartphones and tablets. This makes the module compatible with a wide range of mobile processors and microcontrollers.
The camera module is designed for applications such as machine vision, robotics, and autonomous vehicles, where high-speed and high-precision image capture is critical. It also has a compact form factor and low power consumption, making it suitable for small and portable devices.
Specification:2MP 60fps Full HD Mipi Camera Module
|
Model No |
SNS-21605-1.0 |
|
Sensor |
GC20A3T+SC132GS |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1920(H) x 1080(V) |
|
Pixel Size |
2.7 x 2.7 µm |
|
Image area |
1928H x 1088V |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
52dB |
|
Dynamic range |
72dB |
|
Sensitivity |
7757 mV / lux-sec |
|
Dimension |
Customization |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
