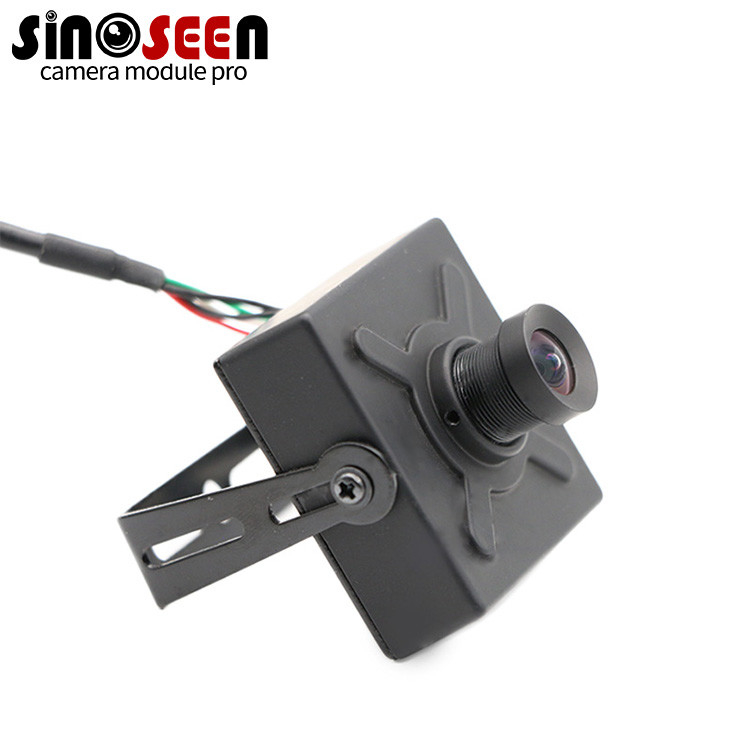

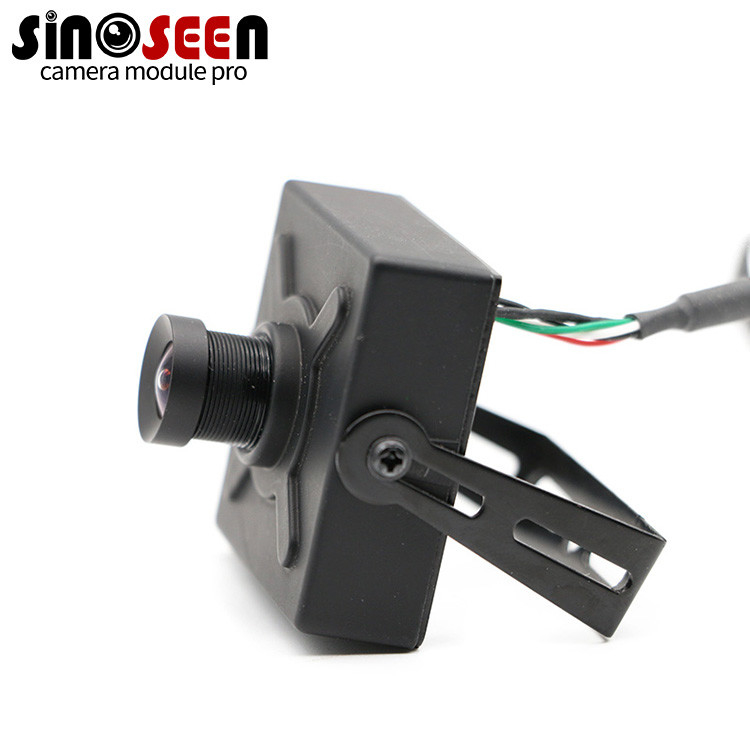

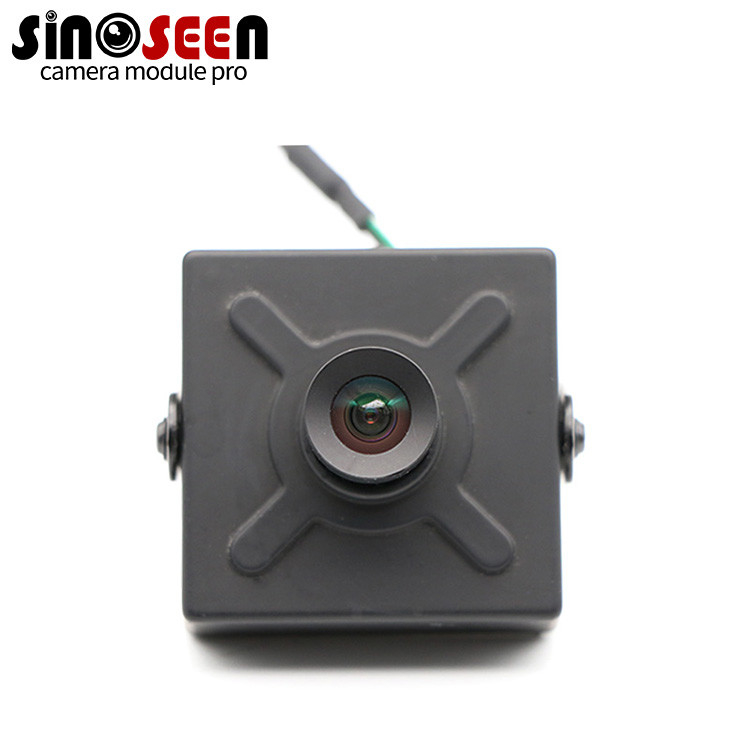

Global Shutter 1mp Camera Module AR0144 Sensor USB Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GB331-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" ON Semiconductor AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | USB Camera Module 180mW,38x38mm 1mp Camera Module,Global Shutter 1mp Camera Module |
||
Product Description
Fixed Focus AR0144 Global Shutter Camera Module 1MP Color Image
Fixed Focus 1MP Color Image Global Shutter AR0144 USB Camera Module
AR0144 usb camera module
This is a 1MP USB camera module with global shutter technology for distortion-free imaging of fast-moving objects. Often used in industrial and automotive applications because of its ability to capture high-quality images at fast shutter speeds. It is designed for easy integration with various applications. The USB camera module uses AR0144 sensor and USB interface, which can be easily connected to various devices such as computers and embedded systems.
This USB camera module is commonly used in applications such as robotics, machine vision, and surveillance. Its compact size and low power consumption make it suitable for portable and battery-operated equipment.
Specification
|
Model No |
SNS-GB331-V1.0 |
|
Sensor |
1/4’’ ON Semiconductor AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
38x38MM customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
