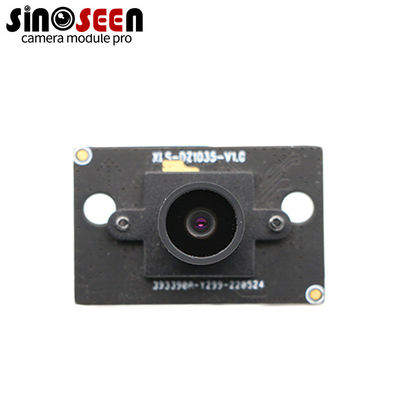

1mp GC1054 Sensor USB Camera Module High Performance HDR For Security Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1035-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 1MP Camera Module | Sensor: | 1/4 GC1054 |
|---|---|---|---|
| Resolution: | 1280(H) X 720(V) | Dimensions: | (customizable) |
| Max Frame Rate: | 30fps@36MHz,DCLK | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Power Consumption |
| High Light: | High Performance HDR USB Camera Module,36MHz USB Camera Module,Security 1MP Camera Module |
||
Product Description
1mp Gc1054 Sensor USB Camera Module High Performance HDR For Security Camera
1MP Low Power Camera Module
This module is a high-performance camera module, which uses OmniVision GC1054 image sensor with a resolution of 1 megapixel (1280 x 720 pixels), supports HDR (high dynamic range) imaging, and realizes imported ved image quality in In high-contrast scenes. The USB interface allows easy connection to various devices such as computers and embedded systems.
This camera module is commonly used in security cameras due to its high-resolution imaging capability and low-light performance. The HDR feature improves image clarity in challenging lighting conditions, making it ideal for both outdoor and indoor measurement applications.
The compact size and low power consumption of the USB camera module make it ideal for portable and battery-operated security systems. With its high-performance GC1054 image sensor and easy-to-use USB interface, this camera module is a popular choice among security camera developers and integrators looking for a high-quality camera solution that is easy to integrate into their systems.
| Parameter | Typical value |
| Optical Format | 1/4inch |
| Pixel Size | 3.0um*3.0um |
| Active pixel array | 1280*720 |
| ADC resolution | 10bit ADC |
| Max Frame rate | 30fps@36MHz,DCLK |
| AVDD:3.15-3.45V(Typ.3.3V) | |
| Power Supply | DVDD:1.4-1.6(Typ.1.5V) |
| IOVDD:1.7-3.45V(Typ.1.8V) | |
| Power Consumption | 110mW@30fps,720p |
| SNR | 41.4dB |
| Dart Current | 200e-/s(60) |
| Sensitivity | 18000e-/lux-sec |
| Dynamic range | 70.7dB |
| Operating temperature | -30-80 |
| Stable Image temperature | 0-50 |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP/PLCC |
| Input clock frequency | 6-27MHz |
