4 Lens Sync USB Camera Module AR0144 1mp Global Shutter For Machine Vision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1084-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" ON Semiconductor AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 4 Lens Sync USB Camera Module,AR0144 USB Camera Module,Machine Vision 1MP Camera Module |
||
Product Description
4 lens Sync USB Camera Module AR0144 1mp Global Shutter For Machine Vision

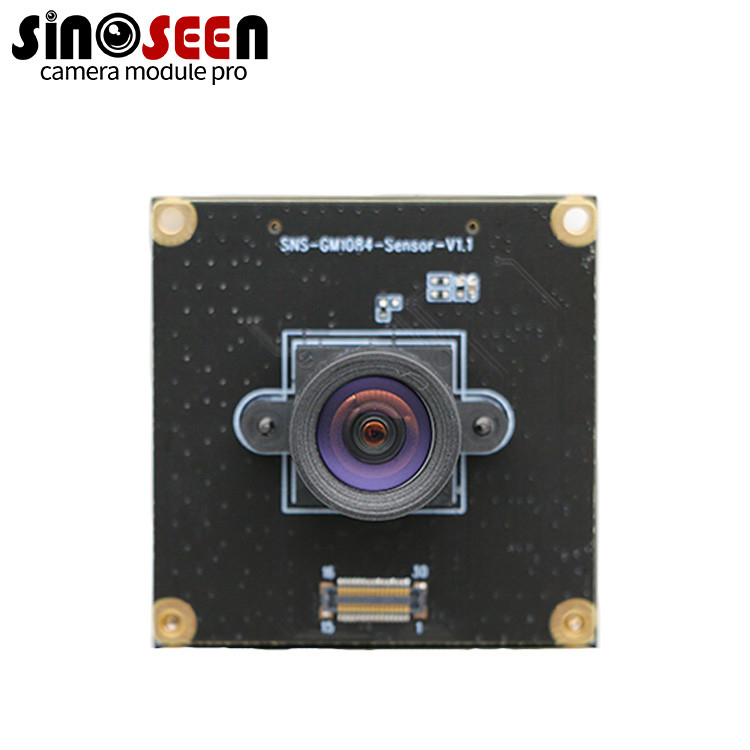

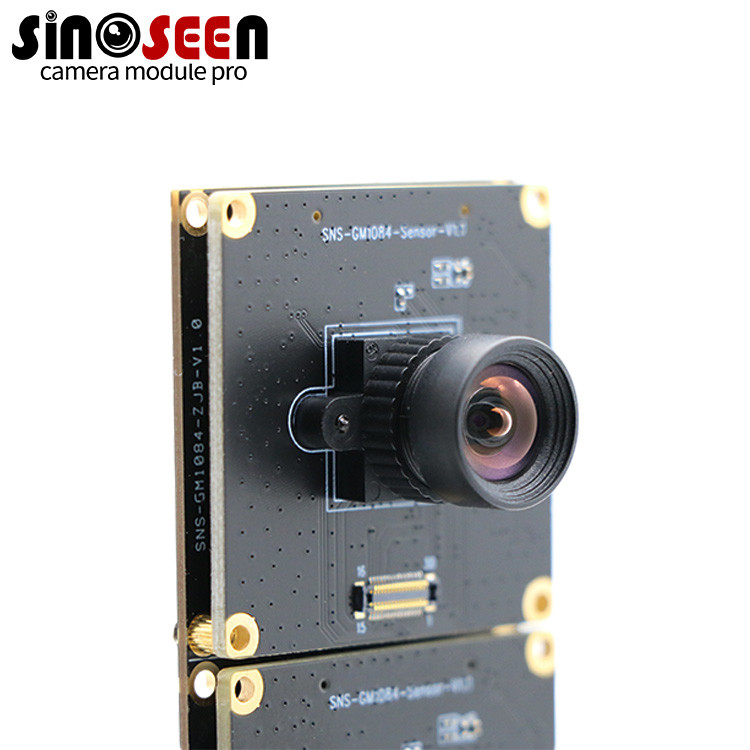

AR0144 usb camera module

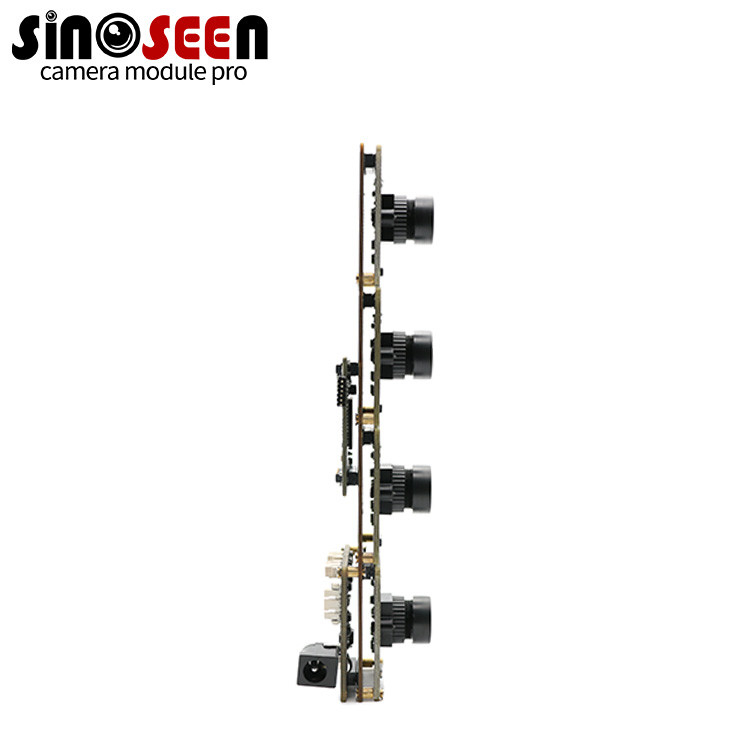

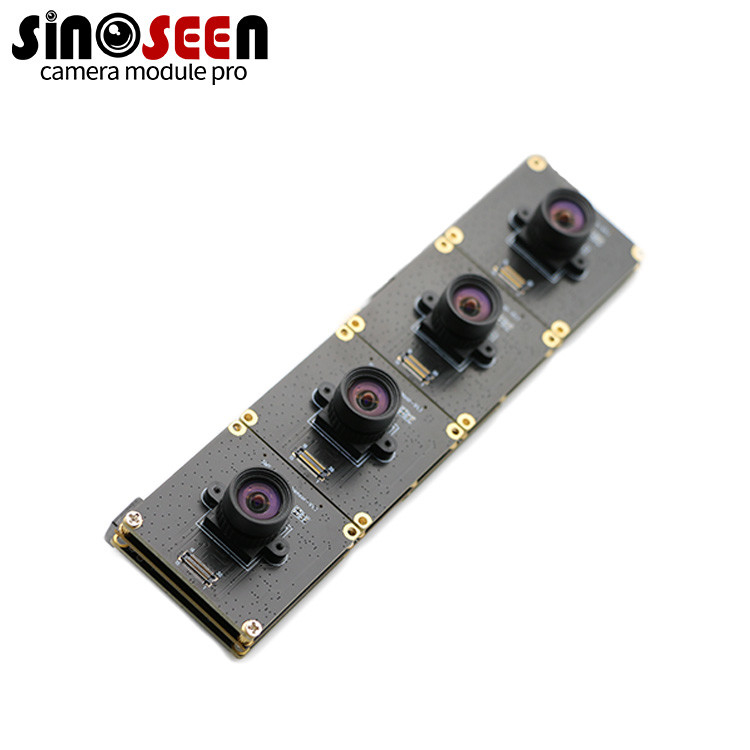

This is a quad camera module with four AR0144 1-megapixel (1280x800) global shutter sensors that can capture fast-moving objects with high accuracy without any motion blur. The module is designed for use with USB 2.0 interfaces, providing high bandwidth and low latency for efficient data transfer.
This camera module is suitable for various machine vision applications such as robotics, automation, quality control and inspection. It can capture high-quality images and videos at high frame rates, ideal for real-time monitoring and analysis. This camera module is a powerful and versatile machine vision camera module that can help improve efficiency and accuracy in a range of industrial and commercial applications.
Specification
|
Model No |
SNS-GM1084-V1 |
|
Sensor |
1/4’’ ON Semiconductor AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
38x38MM customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
