AR0144 1mp 8 Lens Synchronize Usb Camera Module Machine Vision Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-GM1084-V2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" ON Semiconductor AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | 38x38mm (customizable) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| Highlight: | 1MP Camera Module 38x38MM,8 Lens Synchronize Usb Camera Module,RoHS 1MP Camera Module |
||
Product Description
Ar0144 1mp 8 lens Synchronize Usb Camera Module Machine Vision Global Shutter
AR0144 usb camera module

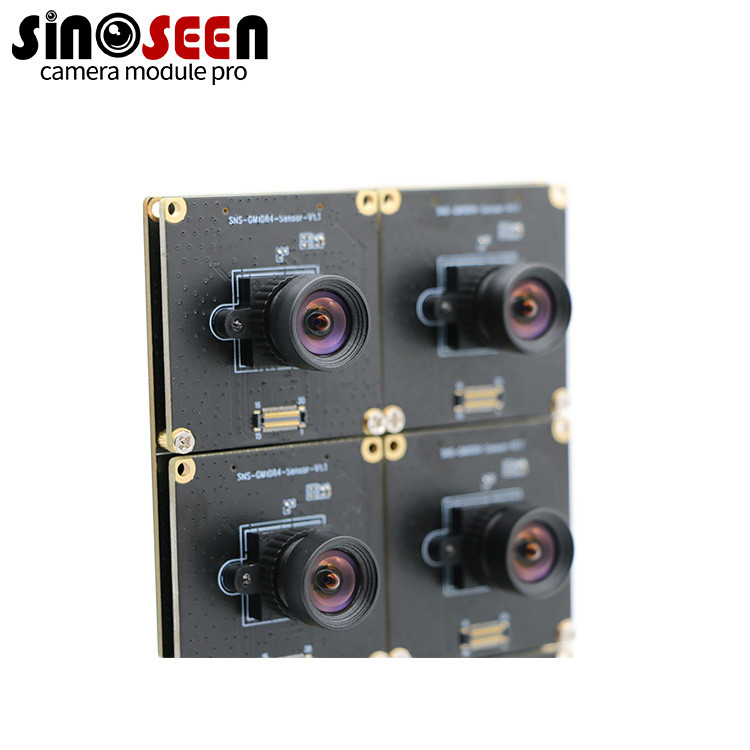

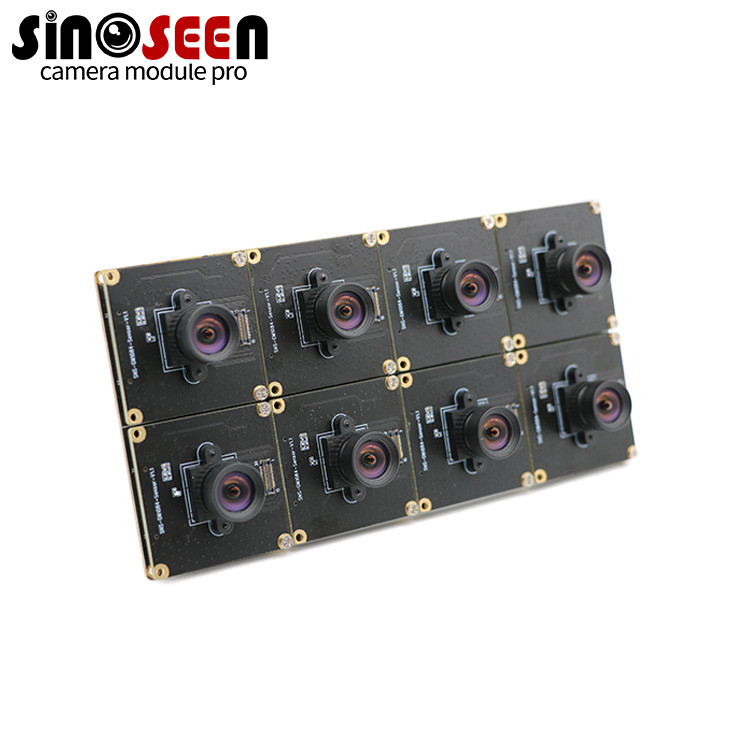

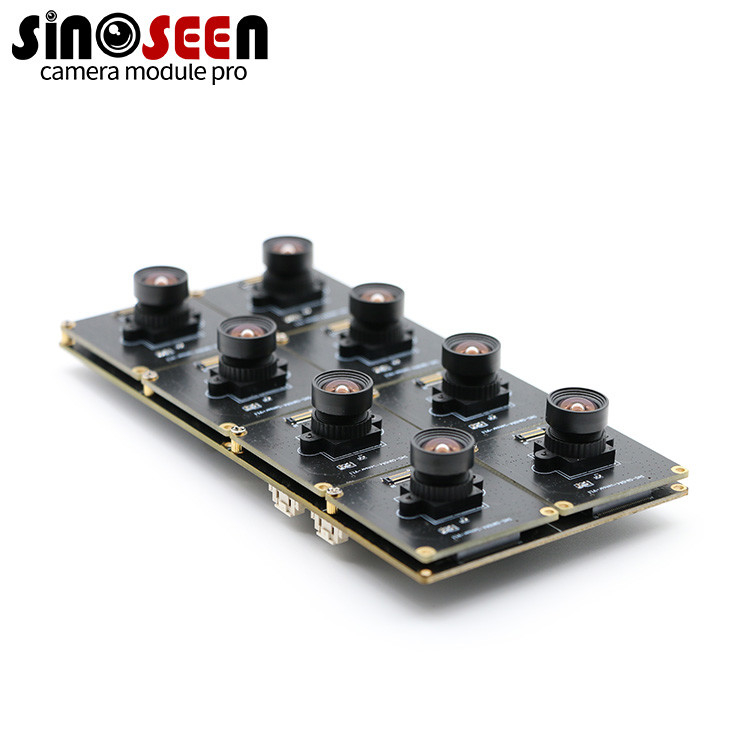

This is 8 lens Synchronize USB camera module featuring eight AR0144 1-megapixel (1280x800) global shutter sensors that can capture fast-moving objects with high accuracy without any motion blur. The camera module is designed for use with a USB 2.0 interface, which provides high bandwidth and low latency for efficient data transfer.
Eight sensors can be used in multiple configurations such as stereo vision, 360-degree imaging or multi-angle inspection. This flexibility makes it suitable for a wide range of machine vision applications such as robotics, automation, quality control and inspection. Helps improve efficiency and accuracy in a range of industrial and commercial applications. With its global shutter sensor and USB 2.0 interface, it can capture high-quality images and videos at high frame rates, ideal for real-time monitoring and analysis.
Specification
|
Model No |
SNS-GM1084-V2 |
|
Sensor |
1/4’’ ON Semiconductor AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
1280 x800@ 60fps 1280x720 @60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
38x38MM customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
