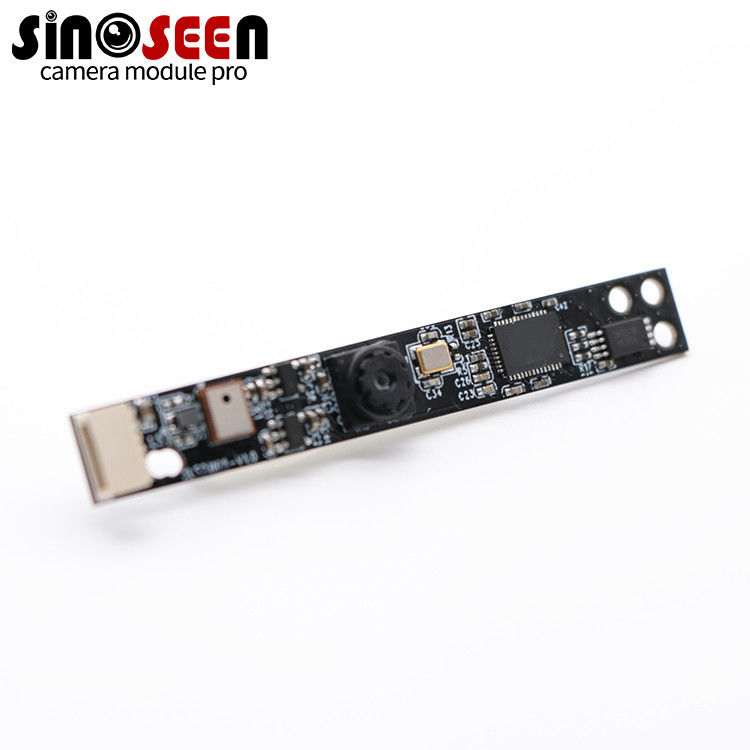

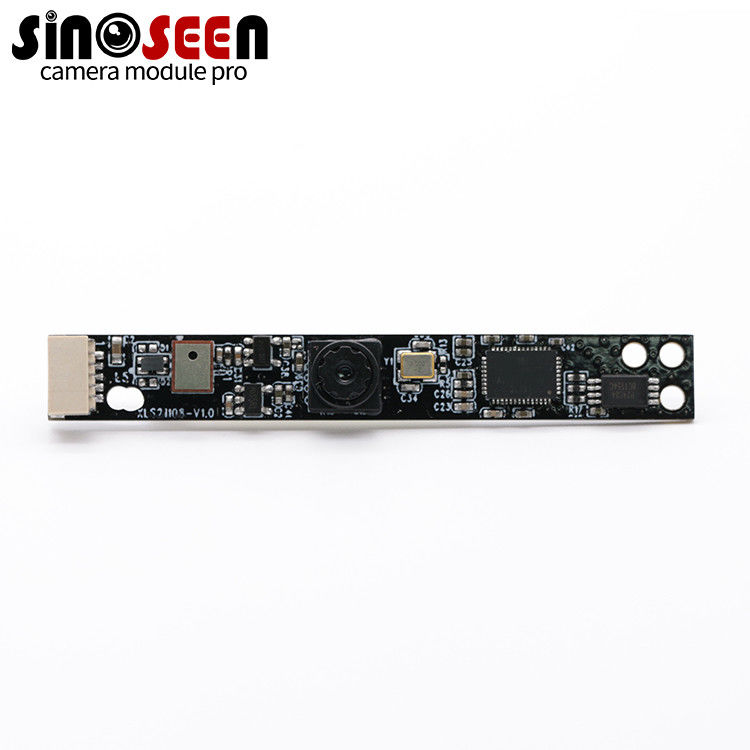

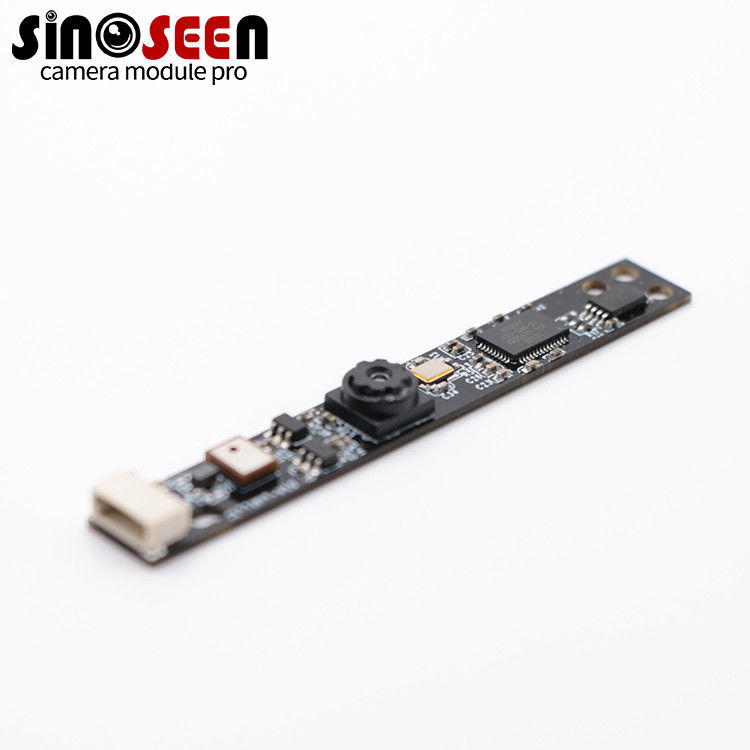

720P Small 1MP USB Camera Module OV9732 Sensor For Laptop
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-21108-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9732 |
---|---|---|---|
Resolution: | 1MP (1280*720) | Dimensions: | Customizable |
Lens FOV: | 72°(optional) | Focus Type: | Fixed Focus |
Interface: | USB2.0 | Feature: | Small Size |
Highlight: | Small 1MP USB Camera Module,OV9732 Sensor USB Camera Module,Laptop 1MP Camera Module |
Product Description
720P Small USB 1MP Camera Module Omnivision OV9732 Sensor For Notebook Laptop
720P Small USB Camera Module With Omnivision OV9732 Sensor For Notebook Laptop
USB 1MP Camera Module
This is a device designed for use in laptops or other devices that require a small, compact camera module. The module captures images at 1 megapixel (720p HD) resolution using the Omnivision OV9732 image sensor.
The camera module connects to a laptop or other device via USB, a widely used interface that is compatible with many different types of devices. This makes it easy to integrate camera modules into laptops or other devices.
One of the key features of this camera module is its small size, making it suitable for use in laptops or other devices where space is limited. Despite its small size, the camera module captures high-quality images with a resolution of 1 megapixel. It's a good choice for laptop makers or other device makers who need a small, compact camera module capable of capturing high-quality images.
Model No |
SNS-21108-V1.0 |
Sensor |
1/4" Omnivision OV9732 |
Pixel |
1 Mega Pixel |
Most effective pixels |
1280(H) x 720(V) |
Pixel Size |
3µm x 3µm |
Protocol & Connection |
Plug-&-Play (UVC compliant) |
Compression format |
MJPEG / YUV2 (YUYV) |
Resolution & Frame rate |
See above |
Output Format |
Raw Data 10bits |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus |
S/N ratio |
41dB |
Interface type |
USB2.0 |
Lens FOV |
72° |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
Audio frequency |
Optional |
Microphone |
2 |
Power supply |
USB BUS POWER |
Power consumption |
DC 5V, 180mW |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) |
Support |
Auto White Balance (AEB) |
Support |
Auto Gain Control (AGC) |
Support |
Dimension |
Customizable |
Storage temperature |
-20°C to 70°C |
Operating temperature |
0°C to 60°C |
USB cable length |
Default |
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
