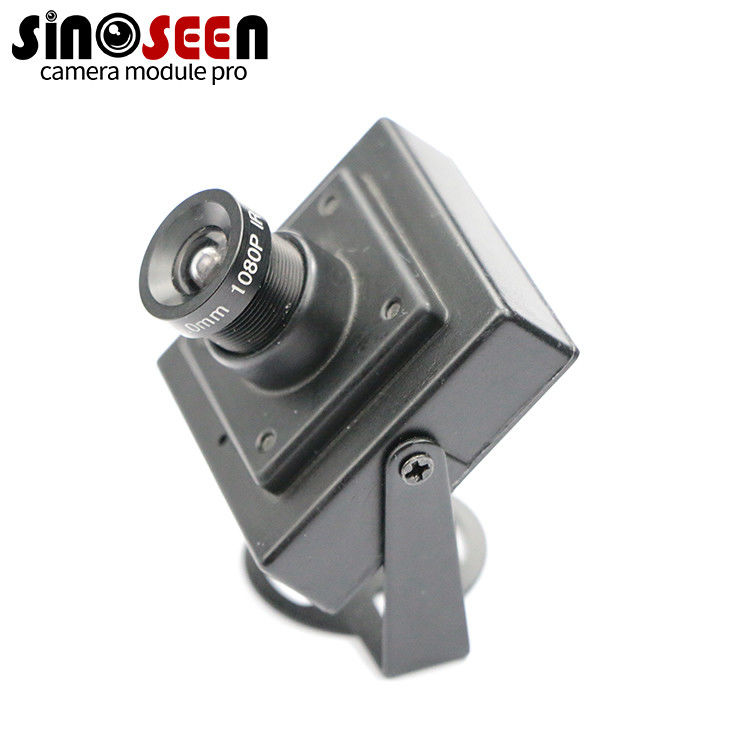

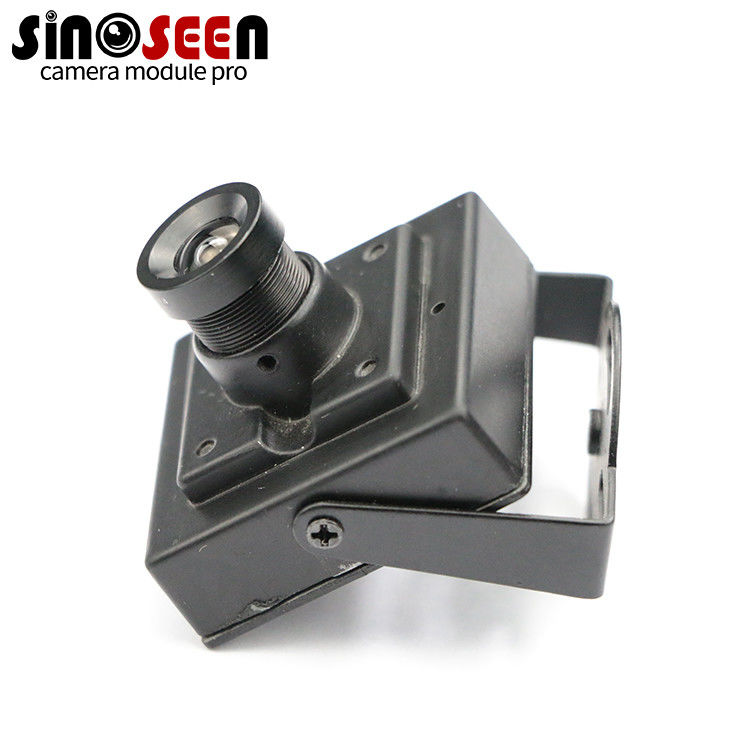

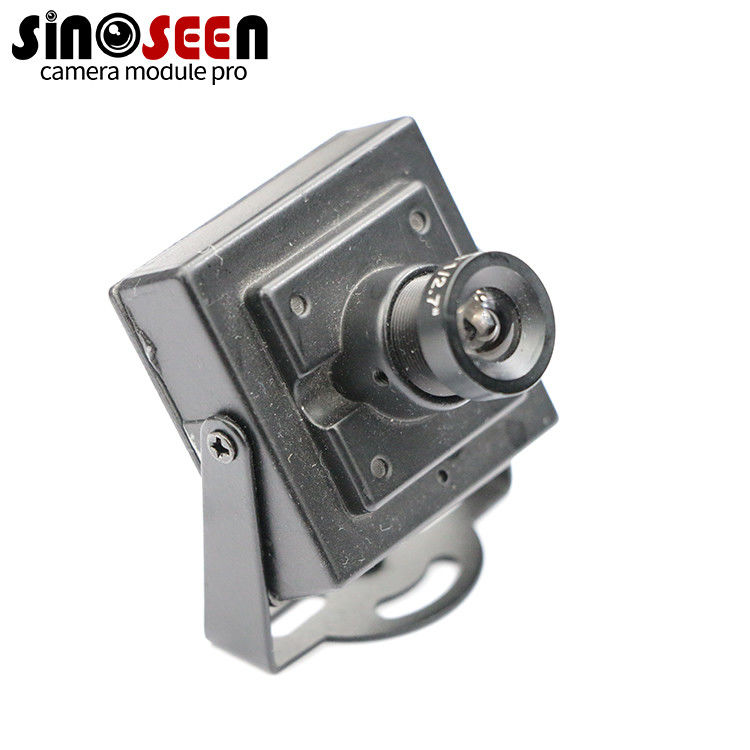

Metal Housing 1MP HD 720p USB Camera Module UVC Compliant Driver
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-H62-H1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" SOI JX-H62 |
|---|---|---|---|
| Resolution: | 1MP 1296 (H) X 732 (V) | Dimensions: | 38*38mm(customizable) |
| Lens FOV: | 130°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | With Metal Housing |
| High Light: | Metal Housing USB Camera Module,38x38mm 1MP Camera ModuleCamera Module,UVC Compliant Driver 1MP Camera Module |
||
Product Description
Metal Housing USB 1MP Camera Module HD 720p UVC Compliant Drive
1MP USB Camera Module HD 720p UVC Compliant Drive Free Plug & Play With Metal Housing
USB 1MP Camera Module
This is a 1 megapixel (720p HD) camera module that connects to a host device via USB. It is designed to be UVC compliant, which means it is compatible with the Universal Video Class (UVC) drivers built into most operating systems. This allows the camera module to be easily integrated into different types of systems without additional software or drivers.
Camera modules are capable of capturing high-quality images and video, suitable for a wide range of applications such as video conferencing, surveillance, or other types of surveillance systems. The compact size of the camera module also makes it suitable for devices with limited space.
Specification
|
Model No |
SNS-1MP-H62-H1 |
|
Sensor |
1/4’’ SOI JX-H62 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1296 (H) x 732 (V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Resolution |
1280x720; 640x480; 320x240; |
|
Frame Rate |
30fps |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Shutter Type |
Electronic rolling shutter |
|
Sensitivity |
4300 mV/lux-sec |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
37dB |
|
Dynamic range |
72dB |
|
Interface type |
USB 2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 1.7mm |
|
Lens size: 1/2.5’’ |
|
|
FOV: 130° |
|
|
Thread size: M12*P0.5 |
|
|
Power consumption |
DC5V, 100mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm |
|
Operating temperature |
-30°C to 85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
