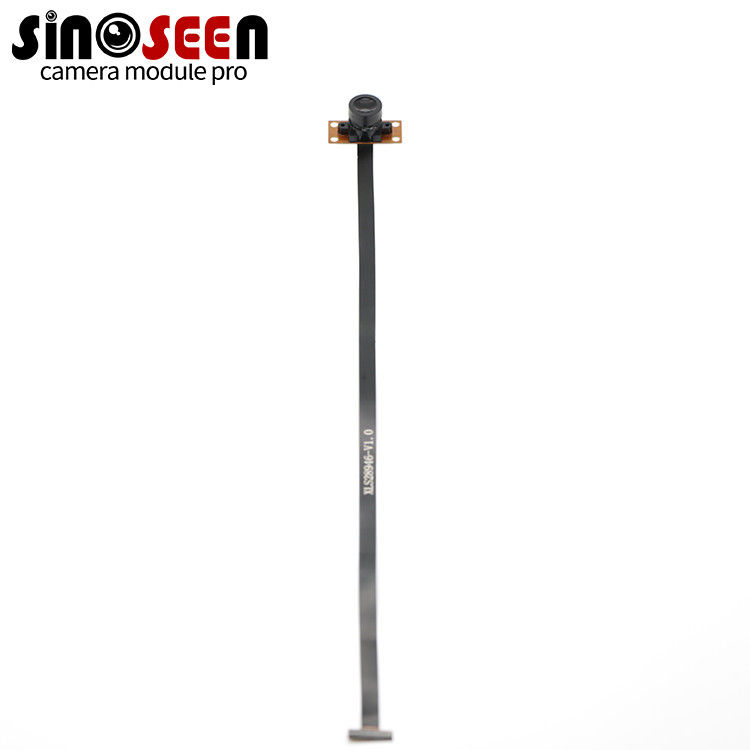

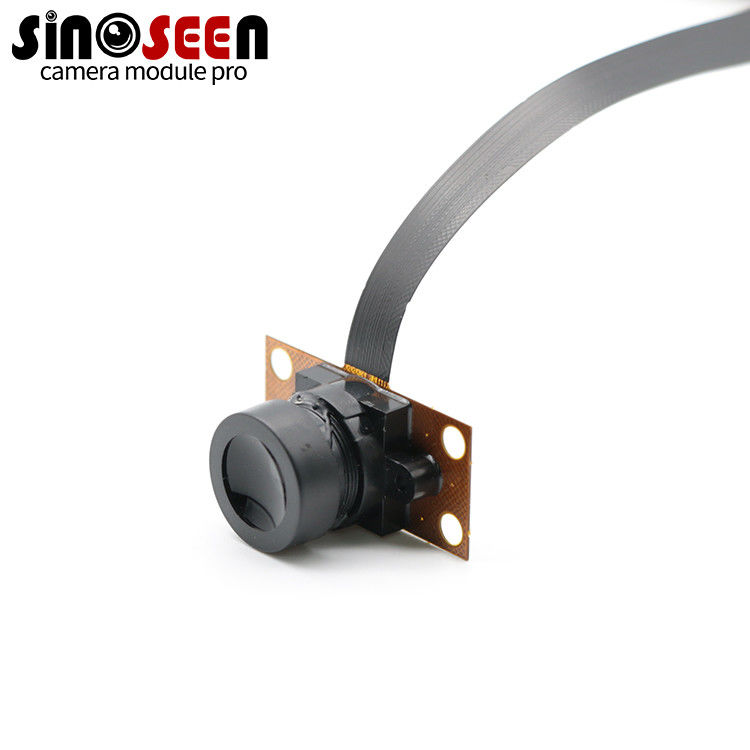

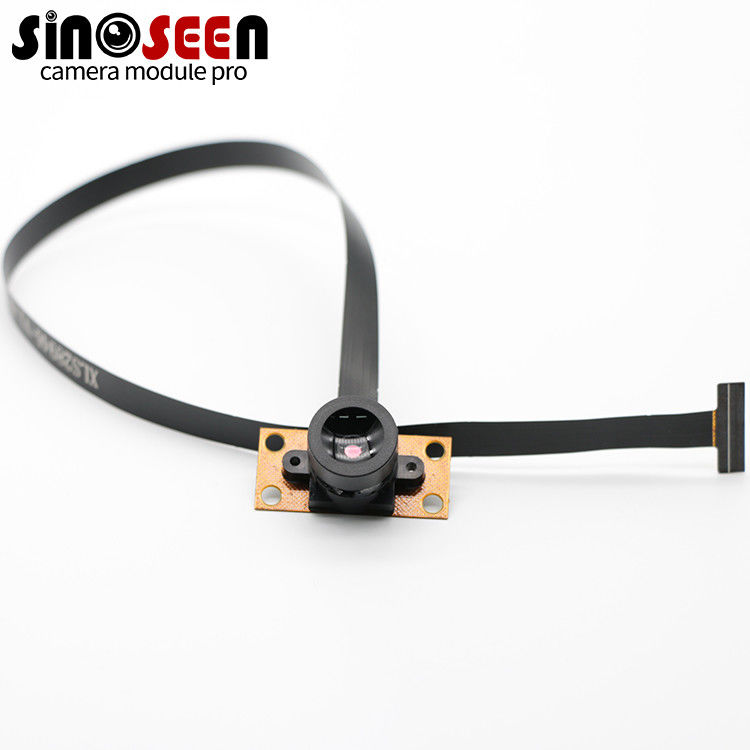

2MP 1080P HDR ADAS MIPI Camera Module With Omnivision OV2775 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-28946-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.9" Omnivision OV2775 |
|---|---|---|---|
| Resolution: | 2MP 1920(H) X 1080(V) | Dimensions: | Customizable |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | High Temperature Resistance MIPI Camera Module,ADAS MIPI Camera Module,Omnivision OV2775 Sensor 2MP Camera Module |
||
Product Description
2MP 1080P HDR ADAS MIPI Camera Module High Temperature Resistance
High Temperature Resistance 2MP 1080P HDR ADAS MIPI Camera Module With Omnivision OV2775 Sensor
The High Temperature Resistance 2MP 1080P HDR ADAS MIPI Camera Module with Omnivision OV2775 Sensor is a camera module designed for use in automotive applications, such as Advanced Driver Assistance Systems (ADAS). It is specifically designed to operate at high temperatures, making it suitable for use in harsh environments.
The camera module offers a high-resolution image capture of 2 megapixels, allowing for clear and detailed imaging. It also supports 1080P video recording at up to 30 frames per second, making it ideal for video applications.
The HDR (high dynamic range) feature enhances the camera's ability to capture images in environments with varying levels of brightness, allowing for better image quality in situations where there are bright and dark areas in the same scene.
The Omnivision OV2775 image sensor used in this camera module is known for its high sensitivity, which means that it can capture clear images even in low-light conditions. This feature is particularly important in automotive applications, where cameras need to be able to capture clear images even in poorly lit environments.
The camera module connects to a host device using a MIPI interface, which is commonly used in automotive applications. It is designed to be compact and lightweight, making it suitable for use in small devices or embedded systems.
Overall, the High Temperature Resistance 2MP 1080P HDR ADAS MIPI Camera Module with Omnivision OV2775 Sensor is a robust camera module that offers high-quality imaging and a range of features that make it suitable for various automotive applications, including Advanced Driver Assistance Systems (ADAS).
|
Module No |
SNS-28946-V1.0 |
|
Pixel Size |
2.8μm x 2.8μm |
|
Effective Pixels |
2MP 1920(H) x 1080(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
1080p@30FPS |
|
Image Sensor |
1/2.9" |
|
Sensor Type |
Omnivision OV2775 |
|
Lens view |
FOV100°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-40～105℃ |
|
Storage temperature |
-40～125℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
