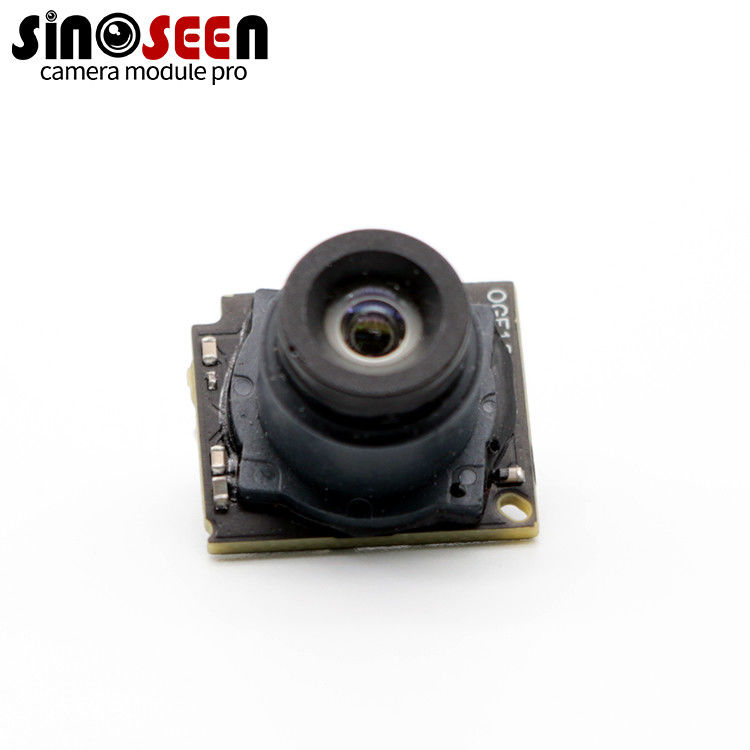

High Frame Rate VGA Camera Module with Monochrome HDR Global Shutter
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-SC031GS-M1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/6" Smartsens SC031GS |
|---|---|---|---|
| Resolution: | 0.3MP 640Hx480V | Dimensions: | Customizable |
| Lens FOV: | 75°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | High Frame Rate VGA Camera Module,HDR VGA Camera Module,240FPS MIPI Camera Module |
||
Product Description
High Frame Rate 240FPS VGA Camera Module Monochrome HDR Global Shutter
VGA High Frame Rate 240FPS Monochrome HDR Global Shutter MIPI Camera Module
camera module
This is a camera module designed for applications requiring high-speed imaging. It offers VGA equivalent resolution of 640 x 480 pixels and captures video at high frame rates, making it ideal for applications requiring high-speed imaging.
The camera module features a monochrome HDR (High Dynamic Range) global shutter that enhances the camera's ability to capture images in environments with varying brightness levels. This feature provides better image quality when there are bright and dark areas in the same scene.
The global shutter function also allows for accurate timing of image capture, making it ideal for applications such as robotics or machine vision that require precise timing.
The camera module connects to the host device using a standard interface, allowing easy integration into a variety of systems. Its compact and lightweight design is suitable for use in small devices or embedded systems.
Specification:Camera Module
|
Module No |
SNS-SC031GS-M1 |
|
Pixel Size |
3.744μm x 3.744μm |
|
Effective Pixels |
640H×480H |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
240FPS |
|
Image Sensor |
1/6" |
|
Sensor Type |
Omnivision OV2685 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
