Face Recognition 2MP IMX307 1080P Camera Module With USB3.0
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Sinoseen |
Certification: | RoHS |
Model Number: | SNS-GM307-V1.0 |
Payment & Shipping Terms:
Minimum Order Quantity: | 3 |
---|---|
Price: | negotiable |
Packaging Details: | Tray+Anti-static bag in carton box |
Delivery Time: | 2-3weeks |
Payment Terms: | T/T |
Supply Ability: | 500000 pieces/month |
Detail Information |
|||
Type: | 2MP Camera Module | Sensor: | 1/2.8" SONY IMX307 |
---|---|---|---|
Resolution: | 1945 (H) X 1097 (V) | Dimensions: | Customizable |
Pixel Size: | 2.9 µm (H) × 2.9 µm (V) | Focus Type: | Fixed Focus |
Interface: | USB3.0 | Feature: | HD |
Highlight: | Face Recognition 1080P Camera Module,USB3.0 1080P Camera Module,SONY IMX307 2MP Camera Module |
Product Description
USB3.0 IMX307 2MP 1080P 60FPS MJPEG/YUV 30FPS for face recognition

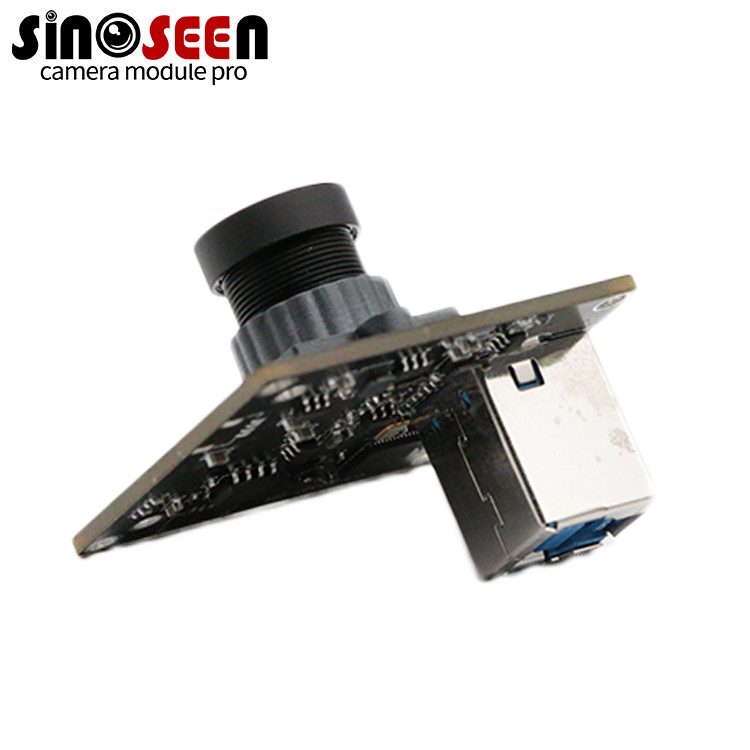

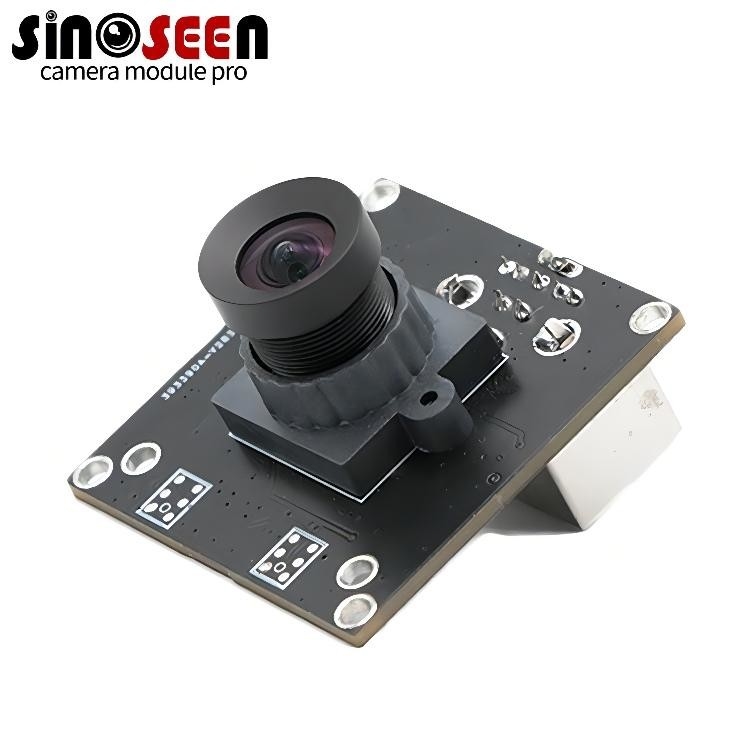

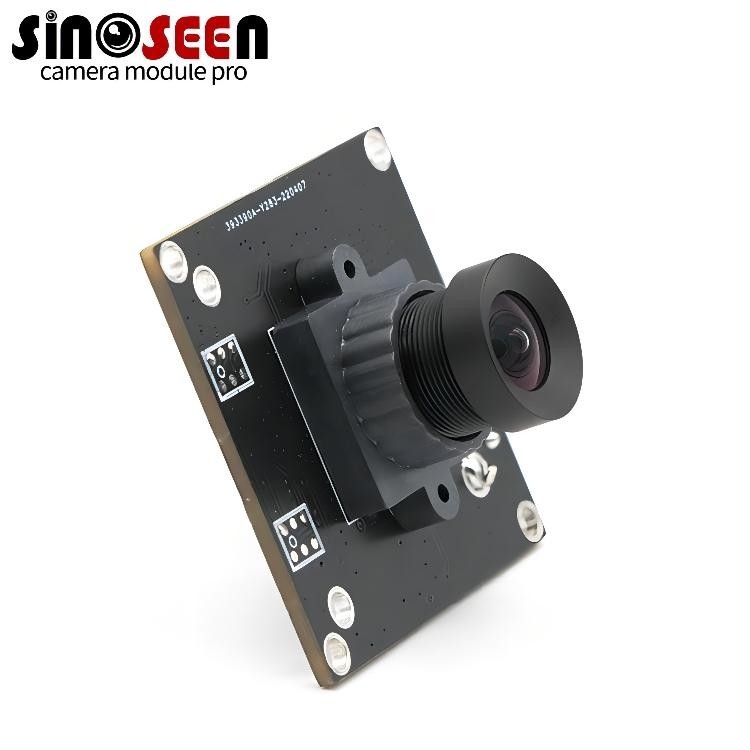

IMX307 2MP USB3.0 Camera Module
This is a camera module designed for applications that require high-quality imaging, especially for face recognition applications. It offers 2-megapixel high-resolution image capture for sharp and detailed imaging.
The camera module uses the Sony IMX307 image sensor, which is known for its high sensitivity and low noise, making it ideal for low-light conditions. This feature is especially important for facial recognition applications, as cameras need to be able to capture clear images even in low-light environments.
The camera module has a USB3.0 interface for high-speed data transmission and real-time video streaming. This feature is especially important for face recognition applications that require high-speed processing.
The camera module has a compact and lightweight design, making it suitable for use in small devices or embedded systems. It is also easily integrated into various systems, making it ideal for a range of applications.
Specification
Model No |
SNS-GM307-V1.0 |
Sensor |
1/2.8’’ SONY IMX307 CMOS |
Pixel |
2 Mega Pixel |
Most effective pixels |
1920(H) x 1080(V) |
Pixel Size |
2.9µm x 2.9µm |
Image area |
1937(H) x 1097(V) |
Compression format |
MJPEG / YUV2/H.264 |
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
Shutter Type |
Electronic rolling shutter |
Focus type |
Fixed focus/Manually adjustable |
Sensitivity |
7757 mV / lux-sec |
Interface type |
USB2.0 and SPI |
Adjustable parameter |
Brightness |
Lens |
Optical length: 18.6mm |
|
F/NO: 2.4 |
|
FOV: D=130° |
|
Thread Size: M12*P0.5 |
Audio frequency |
Optional |
Power supply |
USB BUS POWER |
Power consumption |
DC 5V, 260mW |
Main chip |
DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) |
NOT Support |
Auto White Balance (AEB) |
NOT Support |
Auto Gain Control (AGC) |
NOT Support |
Dimension |
32mm x 32mm |
Storage temperature |
-40 ─ 85 ˚C |
Operating temperature |
-30 ─ 85 ˚C |
USB cable length |
Default |
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
