2MP WiFi Camera Module Fixed Focus 1080P 30fps GC2053 Sensor

2MP WiFi Camera Module Fixed Focus 1080P 30fps GC2053 Sensor

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-2MP-GC2053-iop

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.9'' GC2053
Resolution: 1920*1080 Dimensions: (customizable)
Lens FOV: 100°(optional) Focus Type: Fixed Focus
Interface: USB2.0 Feature: Wifi
High Light:

30fps WiFi Camera Module


GC2053 Sensor WiFi Camera Module


Fixed Focus 2MP Camera Module

Product Description

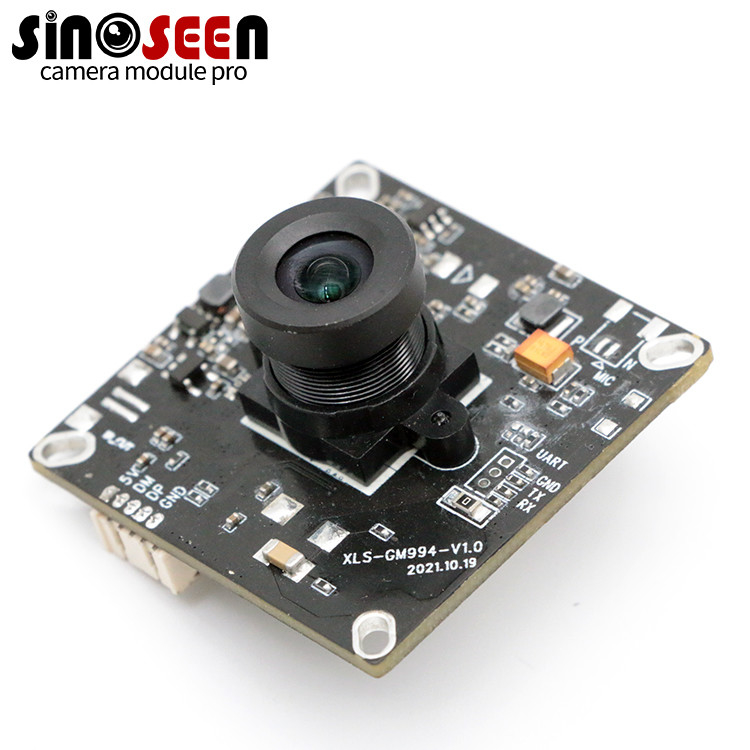

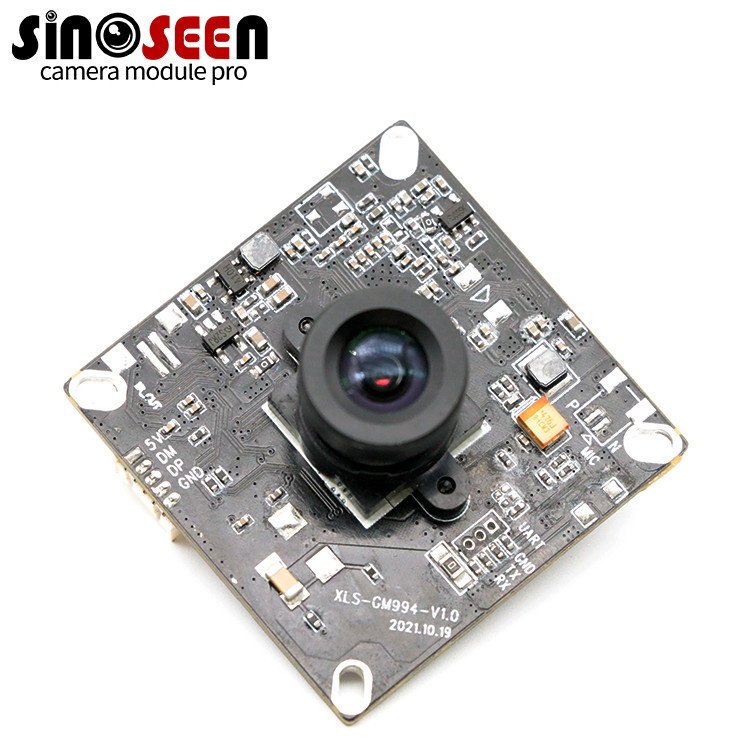

38*38mm 30fps 2mp usb camera module 1080P with WiFi with GC2053 sensor

Fixed Focus 1080P With WiFi 38*38mm 30fps 2mp Usb Camera Module With GC2053 Sensor


camera module 2MP

This is a camera module designed for applications that require wireless connectivity. It offers 2-megapixel resolution and can capture video at up to 30 frames per second, making it ideal for applications requiring high-quality imaging.

The camera module uses the GC2053 image sensor, which is known for its high sensitivity and low power consumption. This feature makes it suitable for battery-powered devices or applications where power consumption is a concern.

The camera module has a built-in WiFi module that can connect wirelessly to the host device. This feature eliminates the need for wired connections, making it easier to integrate into various systems.

The camera module also has a fixed focus lens, which means it has a set focus and does not require manual adjustment. This feature makes it ideal for applications requiring a fixed distance, such as video conferencing or surveillance.

Parameter Typical value
Optical Format 1/2.9inch
Active pixel array 1920*1080
Pixel Size 2.8um*2.8um
Shutter type Electonic rolling shutter
ADC resolution 10 bit ADC
Max Frame rate 30fps@full size
Power Supply AVDD28:2.8V
Power Consumption TBD
Dark Current TBD
Sensitivity TBD
Dynamic range TBD
Operating temperature: -20°C to 80°C
Stable Image temperature 0°C to 60°C
Optimal Lens chief ray angle(CRA) 12(linear)
Package type CSP
Input clock frequency 6-27MHz
