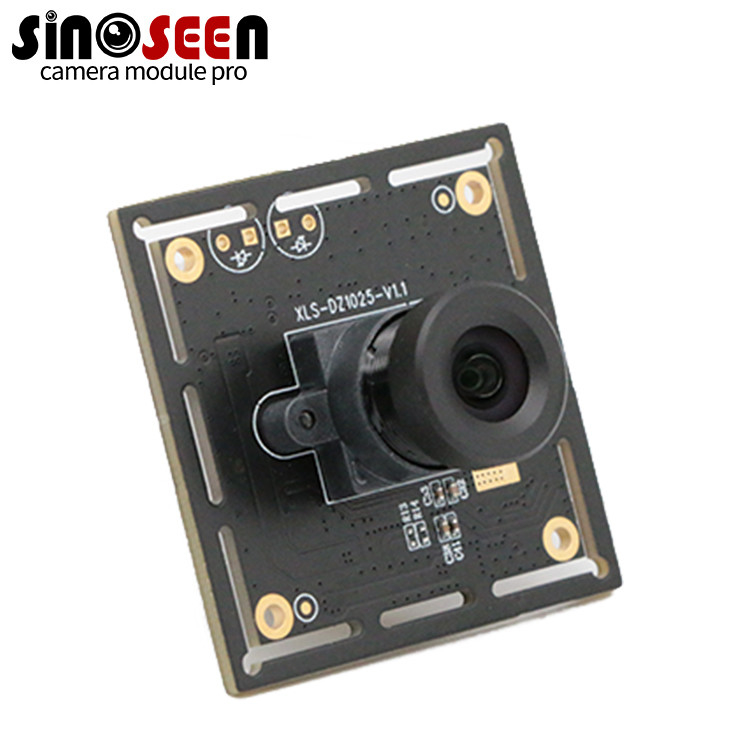

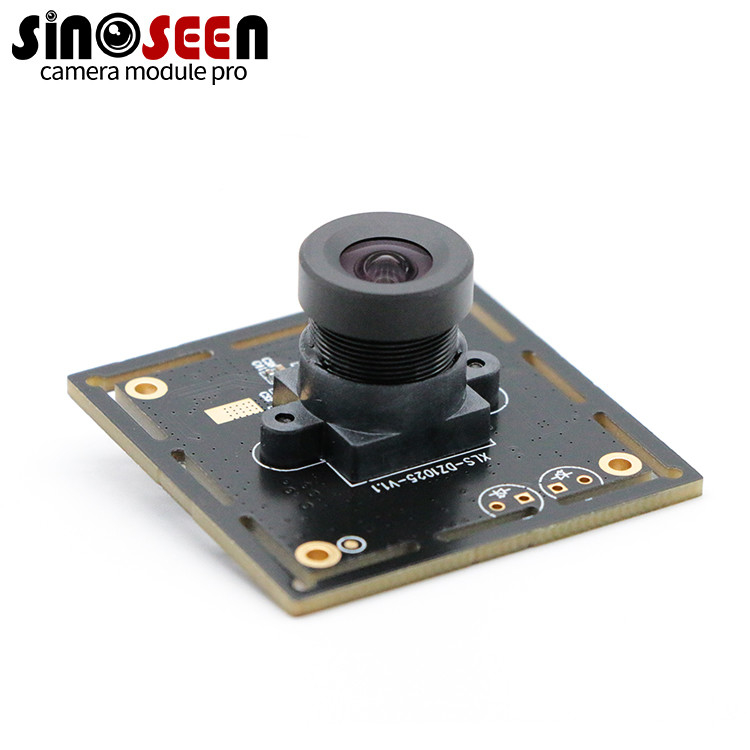

High Performance 2MP USB Camera Module With Wide Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1025-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.9’GC2053 CMOS |
|---|---|---|---|
| Resolution: | 1920(H) X 1080(V) | Dimensions: | (customizable) |
| Pixel Size: | 2.8um X2.8um | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HDR |
| High Light: | 2.8um USB Camera Module,GC2053 CMOS USB Camera Module,Wide Dynamic Range 2MP Camera Module |
||
Product Description
New custom gc2053 sensor rolling shutter 1080p hdr auto exposure usb camera module for digital camera
1080p hdr usb camera module
This is a high-performance 2MP USB camera module with wide dynamic range, designed for applications that require high-quality imaging in environments with different brightness levels. It offers 2-megapixel resolution and can capture video at up to 30 frames per second, making it ideal for applications requiring high-quality imaging.
The camera module features a wide dynamic range (WDR) image sensor that enhances the camera's ability to capture images in environments with varying brightness levels. This feature provides better image quality when there are bright and dark areas in the same scene.
The camera module also features a USB interface for easy integration into various systems. Its compact and lightweight design is suitable for use in small devices or embedded systems.
The camera module is designed for high performance with functions such as auto exposure, auto white balance and auto gain control. These features allow the camera to adapt to changing lighting conditions, ensuring high-quality images are captured.
| Model No | SNS-DZ1025-V1.1 |
| Sensor | 1/2.9’GC2053 CMOS |
| Pixel | 2 Mega Pixel |
| Most effective pixels | 1920(H) x 1080(V) |
| Pixel Size |
2.8um x2.8um
|
| Image Area | 5808µm x 3288µm |
| Compression format | YUV2 / MJPG |
| Resolution | See above |
| Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| S/N ratio | TBDdB |
| Dynamic range | TBDdB |
| Sensitivity | 3700 mV/lux-sec |
| Interface type | USB2.0 |
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure |
|
Power supply requirement
|
AVDD28: 2.7~3.3V(Typ.2.8V)
|
|
DVDD18: 1.15~1.3V(Typ.1.2V)
|
|
|
IOVDD: 1.7~3.0V(Typ.1.8V)
|
|
| Audio frequency | Optional |
| Power supply | USB BUS POWER |
| Power consumption | DC 5V, 200mA |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control (AEC) | Support |
| Auto White Balance (AEB) | Support |
| Auto Gain Control (AGC) | Support |
| Storage temperature |
0~60℃
|
| Operating temperature |
-20~80℃
|
| USB cable length | Default |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
