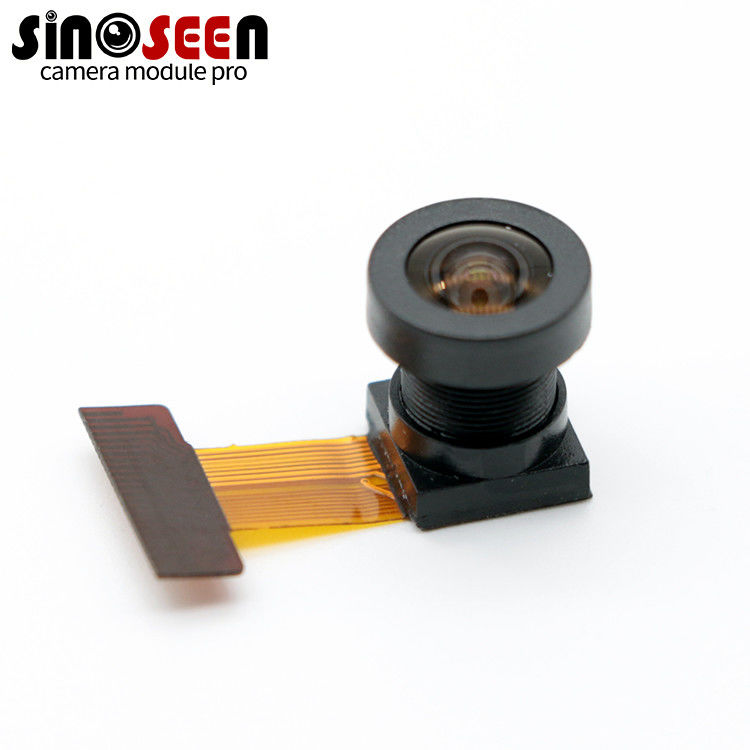

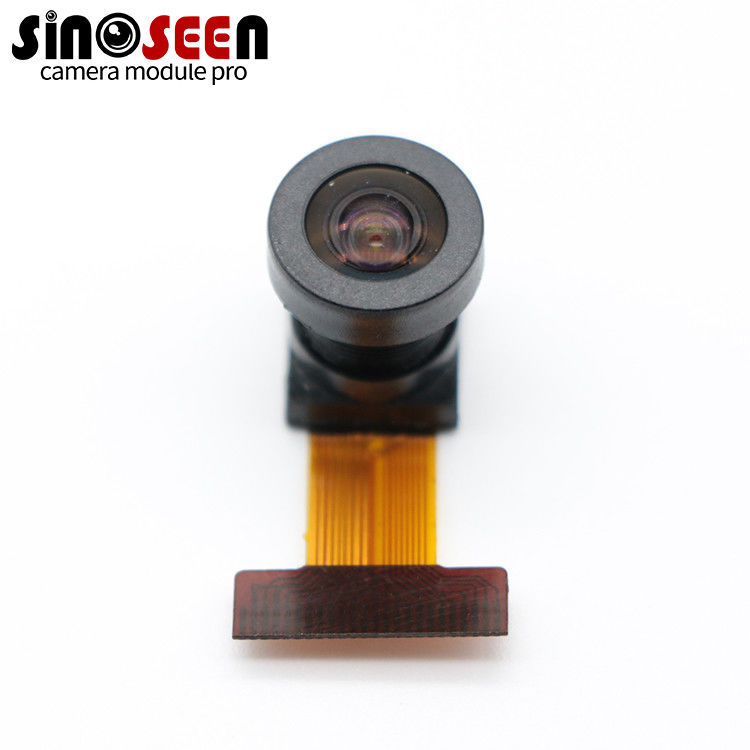

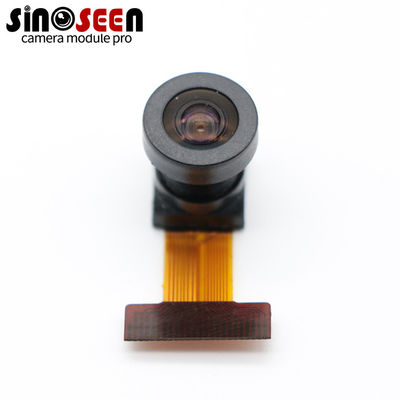

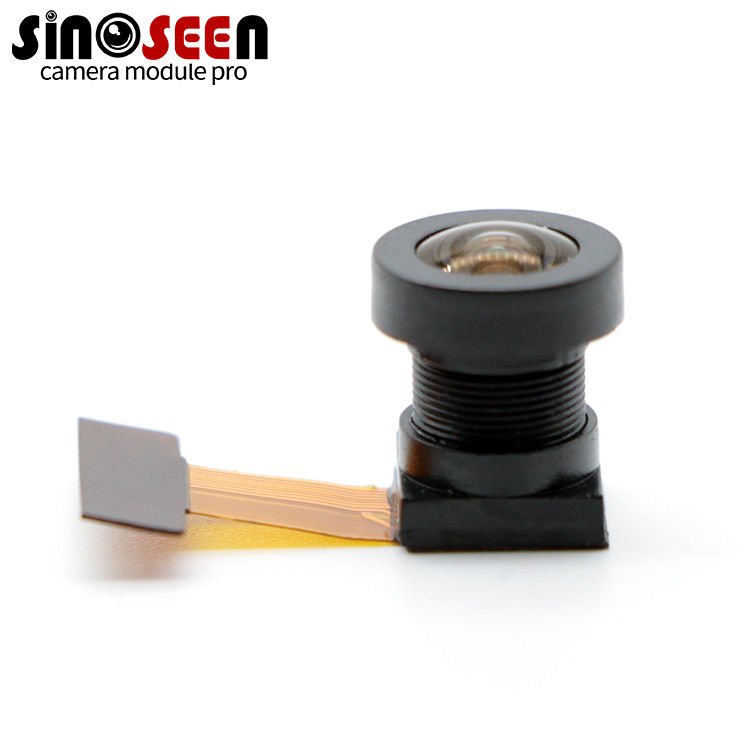

2MP Fixed Focus FH26 MIPI Camera Module With OV2685 Sensor
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-FPC2685-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/5" Omnivision OV2685 |
|---|---|---|---|
| Resolution: | 2MP 1600x1200 | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Non Distortion |
| High Light: | 2MP Fixed Focus Camera Module,1600x1200 MIPI Camera Module,FH26 OV2685 Camera Module |
||
Product Description
Fixed Focus FH26 MIPI Camera Module 1600×1200 Pixels Omnivision OV2685 Sensor
2MP Fixed Focus FH26 MIPI Interface Camera Module With Omnivision OV2685 Sensor
2MP MIPI camera module
The 2MP Fixed Focus FH26 MIPI Camera Module is a compact camera module designed for a variety of applications including mobile devices, drones, and other portable devices. This module uses OV2685 sensor which is known for its high quality image capture capability.
One of the key features of the OV2685 sensor is its ability to capture high-resolution images in low-light conditions. This makes it ideal for use in applications where lighting may be limited, such as outdoor photography or surveillance. The sensor also has a wide dynamic range, enabling it to capture images with high contrast and detail.
The FH26 MIPI camera module uses a fixed-focus lens, which means the lens is set to a specific focal length and cannot be adjusted manually. This makes it ideal for applications where a fixed focus is sufficient, such as mobile devices or drones. The module also features a MIPI interface that allows high-speed data transfer between the camera module and the device it is connected to.
Specification
|
Module No |
SNS-FPC2685-V1 |
|
Pixel Size |
1.75μm x 1.75μm |
|
Effective Pixels |
1600×1200 |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/5" |
|
Sensor Type |
Omnivision OV2685 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
