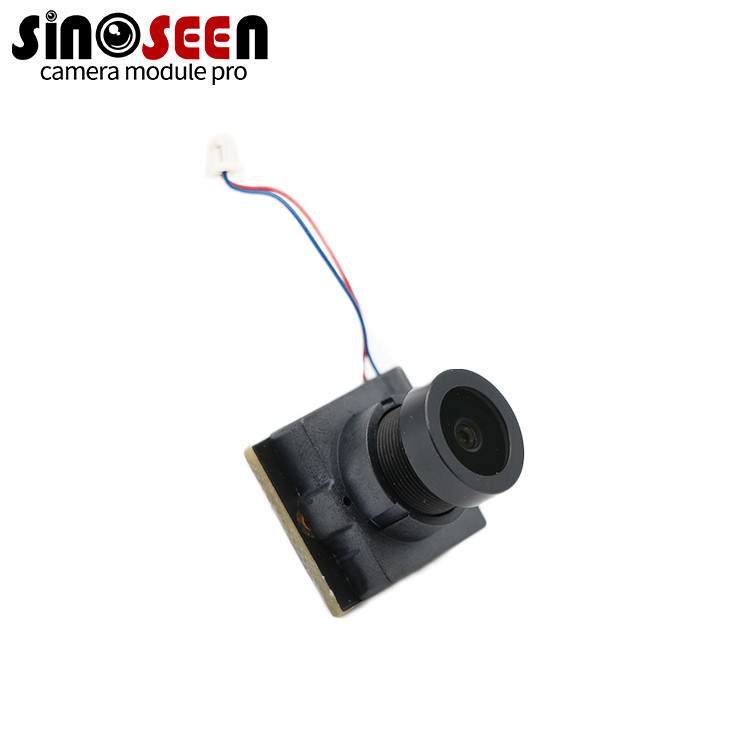

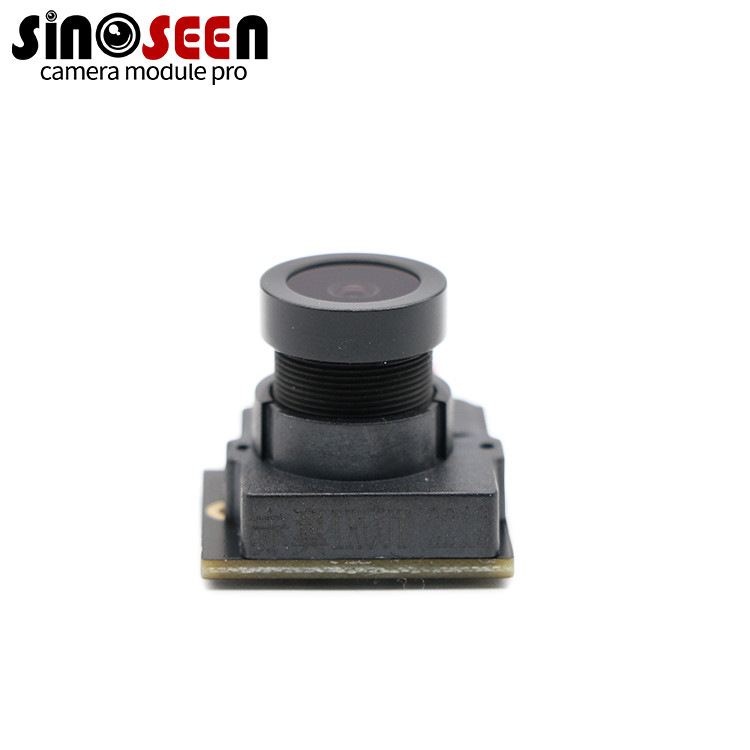

Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module

Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS21759-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/2.9’GC2053 CMOS
Resolution: H1920*V1080 Dimensions: (customizable)
Pixel Size: 2.8um X2.8um Focus Type: Fixed Focus
Interface: Mipi Feature: HD
High Light:

Customized MIPI Camera Module


IR CUT HD MIPI Camera Module


Customized 2MP Camera Module

Product Description

Customized 2MP GC2053 CMOS Sensor HD mipi Camera Module


2MP MIPI Camera Module

This 2MP HD MIPI Camera Module is a dedicated camera module using the GC2053 CMOS image sensor with a resolution of 2 megapixels (2MP).The camera module uses a GC2053 CMOS image sensor capable of capturing high-resolution 2-megapixel (2MP) images. Capable of capturing and outputting HD video or still images.The camera module integrates the MIPI camera serial interface, which is widely used in mobile devices and other applications. The MIPI interface provides high-speed data transfer and is commonly used in smartphones and tablets. The module uses a compact form factor, making it suitable for integration into various devices and applications.t.

Model No



1/2.9’GC2053 CMOS


2 Mega Pixel

Most effective pixels


Pixel Size

2.8um x2.8um

Image Area

5808µm x 3288µm

Compression format



See above

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio


Dynamic range



3700 mV/lux-sec

Interface type


Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Power supply requirement

AVDD28: 2.7~3.3V(Typ.2.8V)

DVDD18: 1.15~1.3V(Typ.1.2V)

IOVDD: 1.7~3.0V(Typ.1.8V)

Audio frequency


Power supply


Power consumption

DC 5V, 200mA

Main chip


Auto Exposure Control (AEC)


Auto White Balance (AEB)


Auto Gain Control (AGC)


Storage temperature


Operating temperature


USB cable length


Support OS

Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC

Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module 0

Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module 1



Shenzhen Sinoseen Technology Co.,Ltd

China top 10 camera module manufacturer

We customize all kinds of USB/MIPI/DVP camera module as per your request



Camera Module Application Areas



Imaging and vision solutions                                           Integrated complex and customized technology
Machine vision                                                                 Intelligent Systems
Future Security                                                                 Optical technology solutions
Camera Module Customized solutions                            Internet of Things End-to-End Solution
Iris recognition technology                                              Iris Solutions
Face recognition                                                               VR High End Camera Solutions
Smart home solutions                                                      Intelligent hardware solutions
Professional camera Modules                                          Specially designed for small UAV
Airborne camera Modules                                                UAV solutions
UAV Special Modules                                                       Drone solutions
Aerial filming solutions                                                     Optical Technology solutions
Mobile Phone Camera module                                         Camera solutions
Optronics Solutions                                                          Imaging Technology Solutions
Video technology solutions                                              Optoelectonic research
Infrared Imagers for Industry                                            Embedded Systems solutions

Want to Know more details about this product
I am interested in Customized 2MP GC2053 Sensor IR-CUT HD MIPI Camera Module could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
