2MP OS02C10 Sensor HDR High Dynamic Range MIPI Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS21758-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.8" Omnivision OS02C10 |
|---|---|---|---|
| Resolution: | 2MP 1920x1080 | Dimensions: | Customizable |
| Lens FOV: | 95° | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | OS02C10 Sensor MIPI Camera Module,2MP HDR MIPI Camera Module,HDR 2MP Camera Module |
||
Product Description

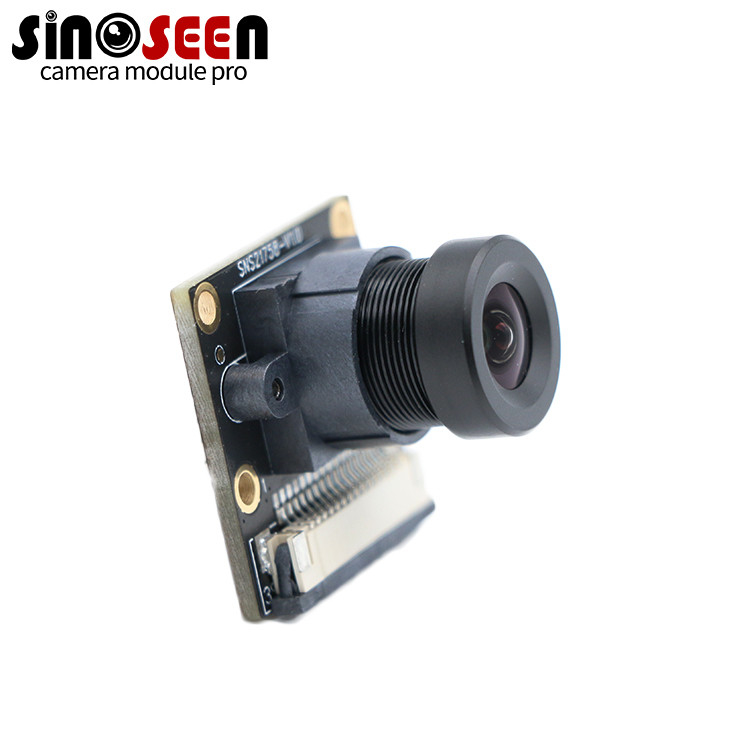

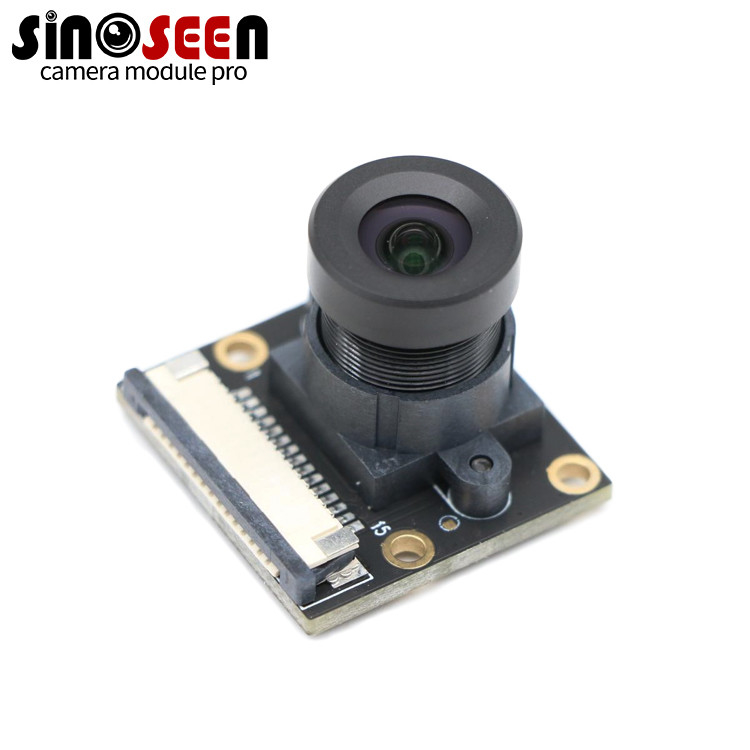

2MP OS02C10 Sensor HDR High Dynamic Range MIPI Camera Module
2MP MIPI Camera Module
This 2MP HDR (High Dynamic Range) MIPI Camera Module is a dedicated camera module that integrates an OS02C10 CMOS image sensor with a resolution of 2 megapixels (2MP). The camera module supports HDR imaging for a wider dynamic range between the darkest and brightest parts of the image. HDR technology helps capture details in shadows and highlight areas, resulting in a more balanced and visually appealing image. Camera modules are usually designed to be compact and lightweight, making them suitable for integration into various devices and applications.
Specification
|
Model No |
SNS21758-V1.0 |
|
Sensor |
1/2.8" Omnivision OS02C10 |
|
Pixel |
2MP |
|
Most effective pixels |
1920x1080 |
|
Pixel Size |
2.9 µm x 2.9 µm |
|
Min illumination |
530nm |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
40X3 fps @ 1080p in 10-bit 30X3 fps @ 1080p in 12-bit |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
32,000 e- /Lux-sec |
|
Interface type |
MIPI |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens FOV |
160° |
|
Audio frequency |
Support |
|
Power consumption |
DC 5V, 100mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
-30°C to 85°C |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
