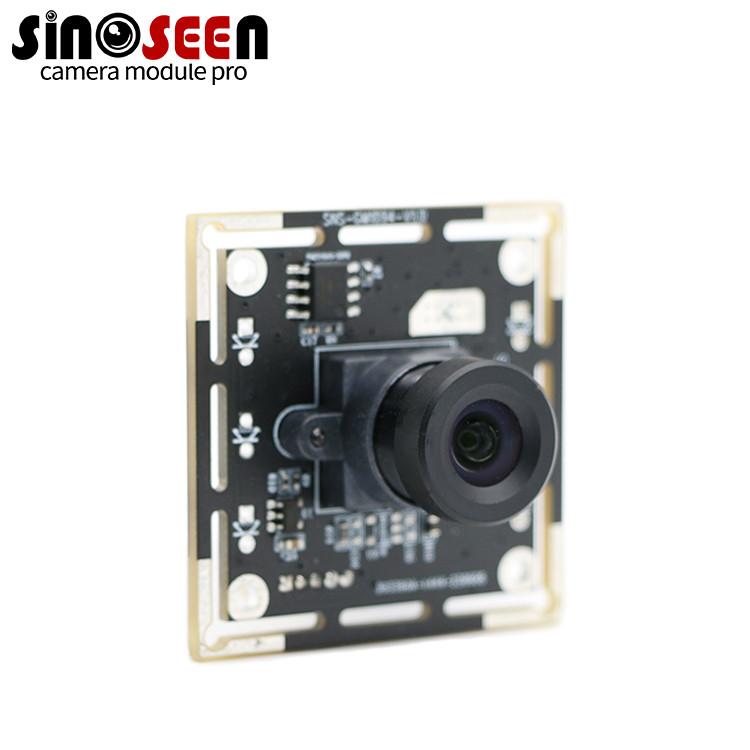

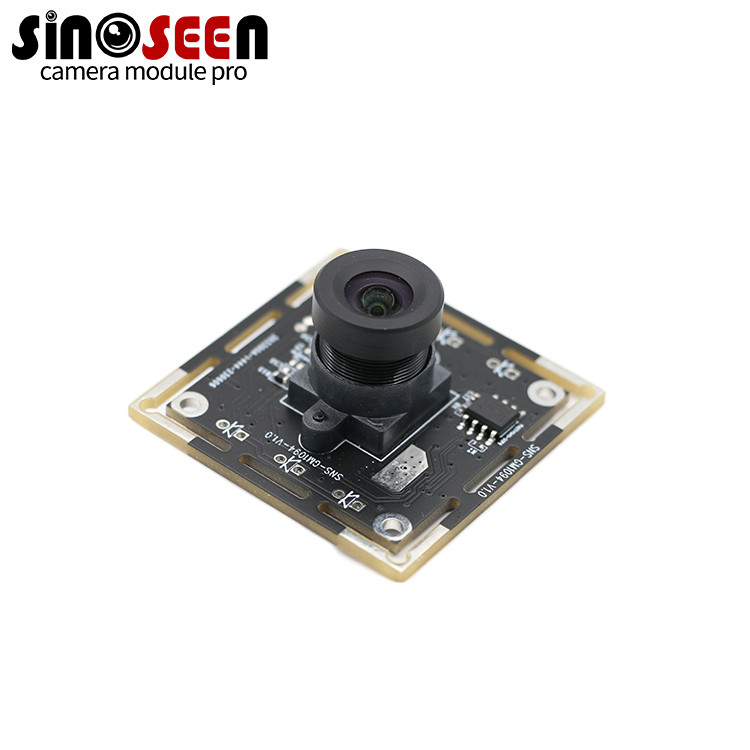

GC2083 Sensor 1080P 30FPS USB Camera Module Industrial Inspection

GC2083 Sensor 1080P 30FPS USB Camera Module Industrial Inspection

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Sinoseen
Certification: RoHS
Model Number: SNS-GM1094-V1.0

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: negotiable
Packaging Details: Tray+Anti-static bag in carton box
Delivery Time: 2-3weeks
Payment Terms: T/T
Supply Ability: 500000 pieces/month
Get Best Price Contact Now

Detail Information

Type: 2MP Camera Module Sensor: 1/3’GC2083 CMOS
Resolution: H1920*V1080 Dimensions: (customizable)
Pixel Size: 2.7um X2.7um Focus Type: Fixed Focus
Interface: USB Feature: HD
High Light:

1080P 30FPS USB Camera Module


GC2083 Sensor USB Camera Module


Industrial 2MP Camera Module

Product Description

GC2083 sensor 1080P 30FPS USB camera module industrial inspection


2MP USB Camera Module

This GC2083 sensor is a type of image sensor commonly used in camera modules. Due to its good image quality and performance, it can also provide the best image performance in normal scenes, and can also improve the image quality in low-light scenes. Combined with a USB camera module, it can provide high-resolution video capture for industrial vision purposes. The module can capture video at 1080p resolution and 30 frames per second (FPS). This configuration is suitable for industrial inspection applications where real-time monitoring and detailed image capture are important. It can be widely used in video broadcasting and conference video all-in-one, monitoring. Image machine vision fields such as educational booths, industrial inspections, various identification comparisons, ATM machines, access control gates, etc.


Model No



1/3’GC2083 CMOS


2 Mega Pixel

Most effective pixels


Pixel Size

2.7um x2.7um

Image Area

5808µm x 3288µm

Compression format



See above

Frame rate

See above

Shutter Type

Electronic rolling shutter

Focus type

Fixed focus

S/N ratio


Dynamic range



3700 mV/lux-sec

Interface type


Adjustable parameter

Brightness/Contrast/Color saturation/Hue/Definition/
Gamma/White balance/Exposure

Power supply requirement

AVDD28: 2.7~3.3V(Typ.2.8V)

DVDD18: 1.15~1.3V(Typ.1.2V)

IOVDD: 1.7~3.0V(Typ.1.8V)

Audio frequency


Power supply


Power consumption

DC 5V, 200mA

Main chip


Auto Exposure Control (AEC)


Auto White Balance (AEB)


Auto Gain Control (AGC)


Storage temperature


Operating temperature


USB cable length


Support OS

Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
