2MP 1080P 90FPS AR0234 CMOS Compact MIPI Camera Module IR Performance
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS21730-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | 1/2.6'' |
|---|---|---|---|
| Resolution: | 2560(H) X 1440(V) | Dimensions: | (customizable) |
| Pixel Size: | 3.0μm X 3.0μm | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HD |
| High Light: | Compact MIPI Camera Module,CMOS Compact MIPI Camera Module,IR Performance 2MP Camera Module |
||
Product Description

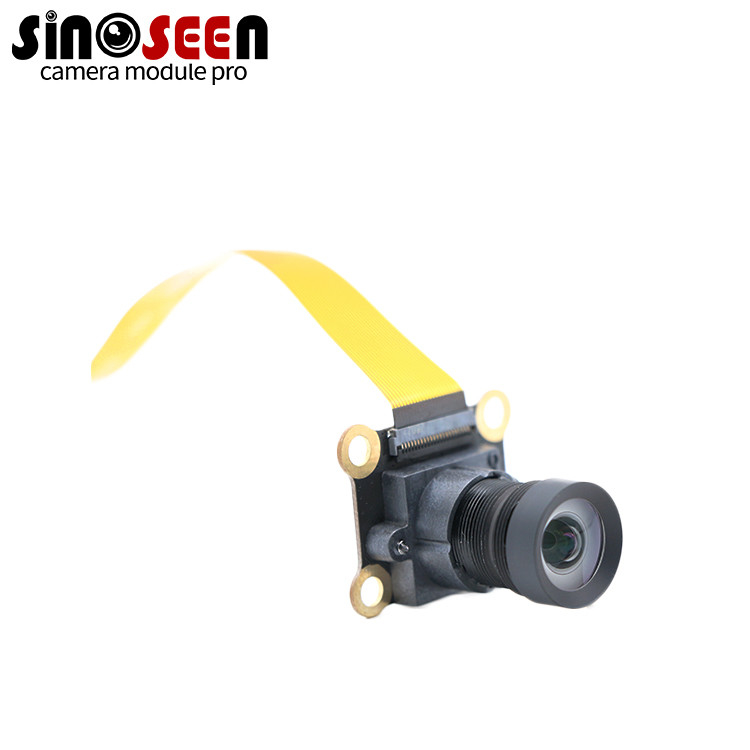

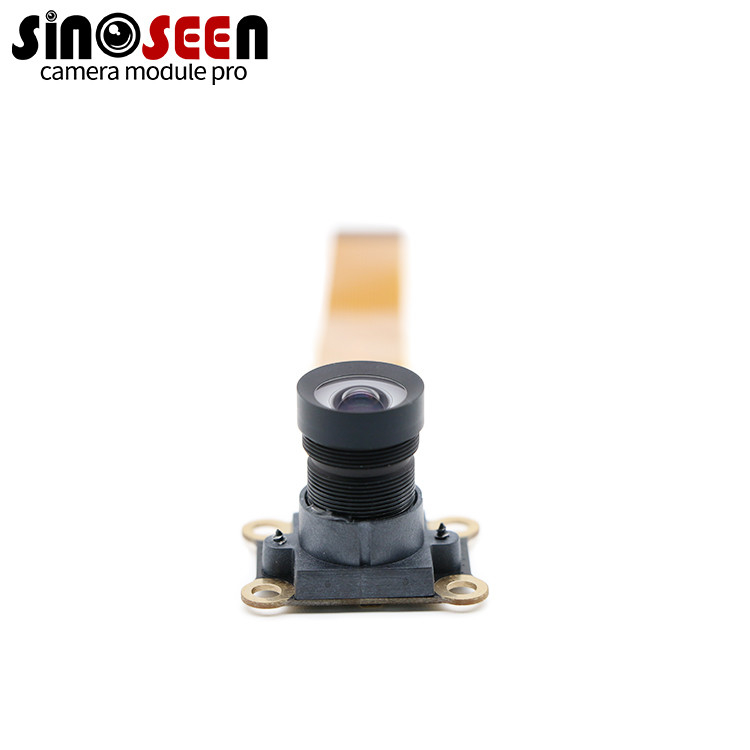

2MP 1080P AR0234 CMOS Compact MIPI Camera Module IR Performance
1080P HD MIPI Camera Module
This is a 2MP CMOS image sensor with AR0234. It is a popular sensor used in various imaging applications, including compact camera modules. This sensor offers a resolution of 1920 x 1080 pixels, often referred to as Full HD or 1080p. An IR cut filter is often used in daylight conditions to block infrared light from reaching the sensor as it can interfere with the color accuracy of the image. This filter helps achieve more accurate color reproduction under normal lighting conditions.Infrared pass filters, on the other hand, allow infrared light to pass while blocking visible light. This filter is used by applications that need to capture images in low light or nighttime conditions. By removing visible light and allowing only infrared light to reach the sensor, the camera module can capture better images in these situations.
Specification:AR0234 MIPI Camera Module
|
Model No |
SNS21730-V1.0 |
|
Sensor |
1/2.6’’ |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
2560(H) x 1440(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Compression format |
YUV2 / MJPG |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
TBDdB |
|
Dynamic range |
TBDdB |
|
Sensitivity |
3700 mV/lux-sec |
|
Interface type |
USB2.0 |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Power supply requirement |
AVDD28: 2.7~3.3V(Typ.2.8V) |
|
DVDD18: 1.15~1.3V(Typ.1.2V) |
|
|
IOVDD: 1.7~3.0V(Typ.1.8V) |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Storage temperature |
0~60℃ |
|
Operating temperature |
-20~80℃ |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
