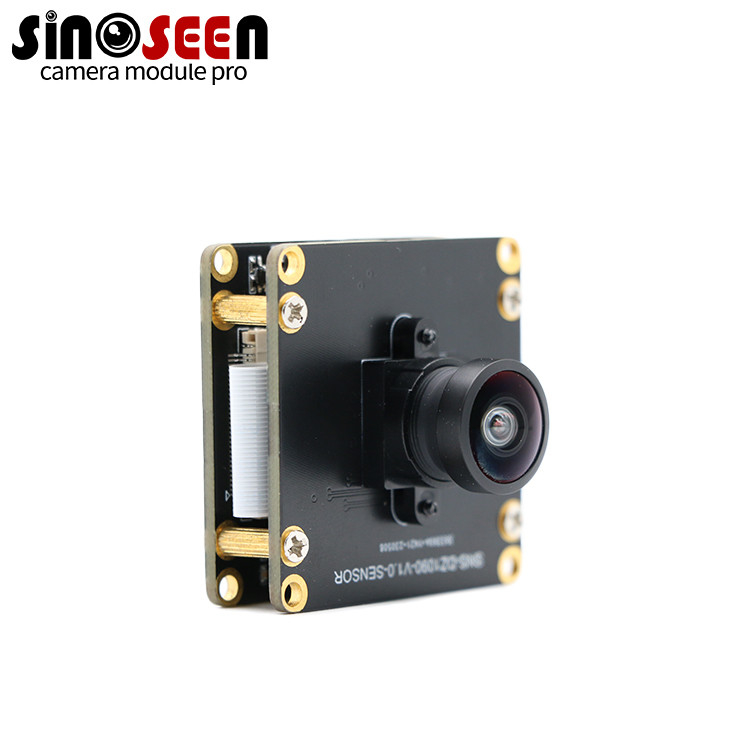

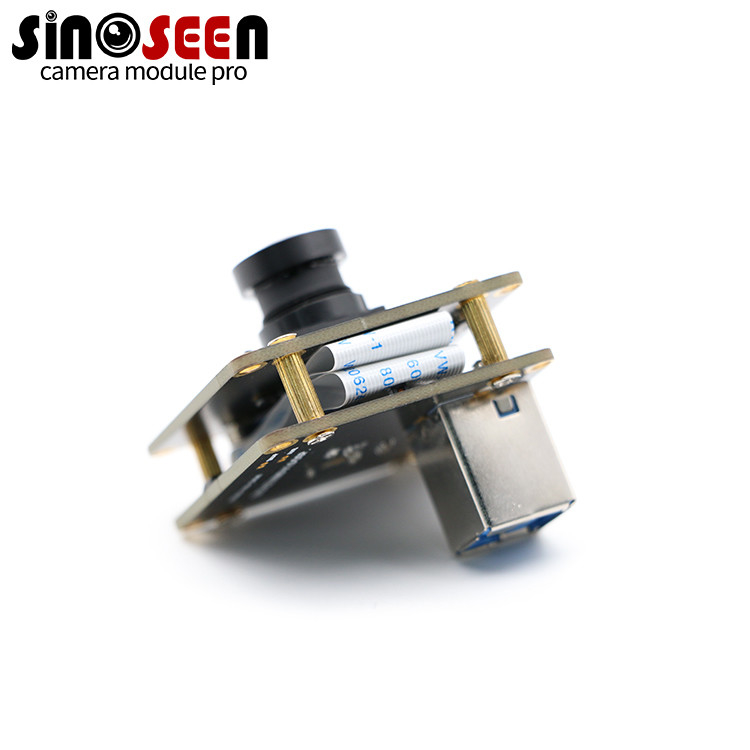

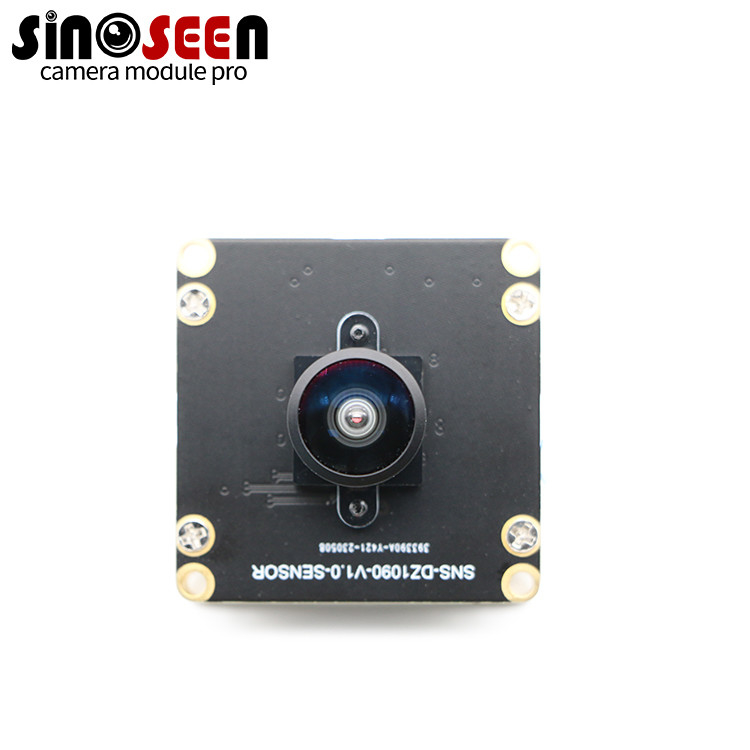

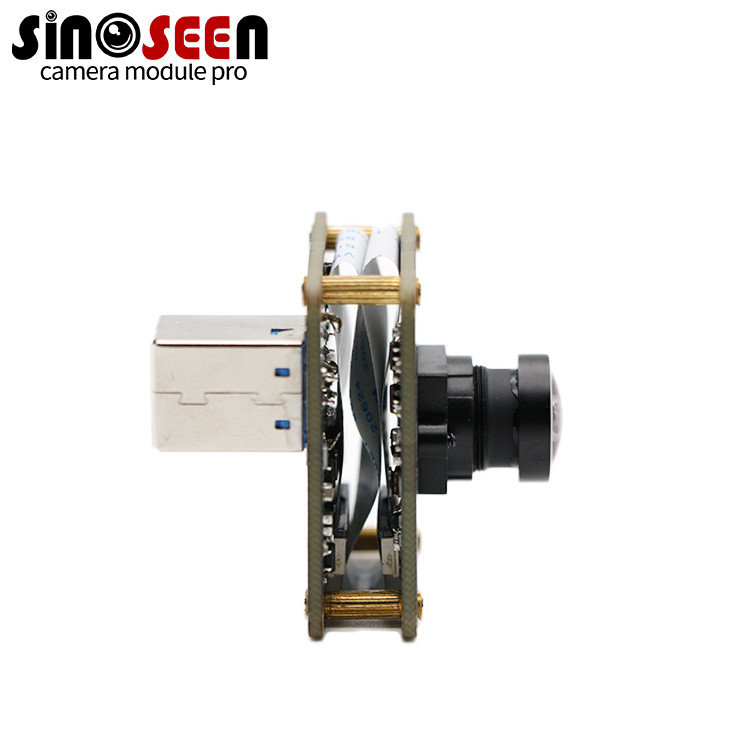

OV9281 720P 30FPS Black And White Sensor USB Camera Module For Machine Vision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1090-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4" Omnivision OV9281 CMOS |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB | Feature: | Global Shutter |
| High Light: | 30FPS USB Camera Module,OV9281 USB Camera Module,CMOS 1MP Camera Module |
||
Product Description
OV9281 720P 30FPS black and white sensor USB camera module for machine vision
720P Camera module
This USB camera module is designed for machine vision applications where high-quality imaging and real-time video capture are critical. It features the OV9281 image sensor, developed by OmniVision Technologies, optimized for black and white imaging. The camera module supports 720P resolution, which is equivalent to a resolution of 1280 x 720 pixels. This resolution provides sufficient detail for machine vision tasks and allows the capture of clear, precise images. The camera module captures live video at a frame rate of 30 frames per second (FPS), ensuring smooth motion capture. This is especially important in machine vision applications that require real-time image processing and analysis. The camera module's monochrome sensor is optimized for machine vision applications where grayscale imaging is an advantage. Black and white sensors are often favored in machine vision because of their higher sensitivity to light, better contrast, and suitability for image processing algorithms. Its high frame rate, USB interface, and dedicated monochrome sensor make it ideal for tasks such as object detection, quality control, robotics, or any application that requires high-quality imaging and real-time video capture for machine vision purposes.
Specification
|
Model No |
SNS-DZ1090-V1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
