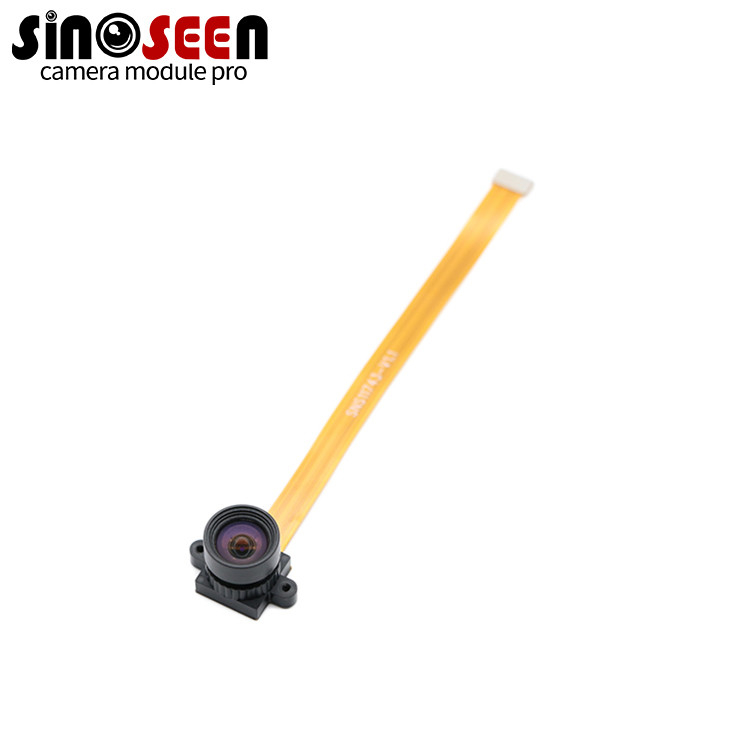

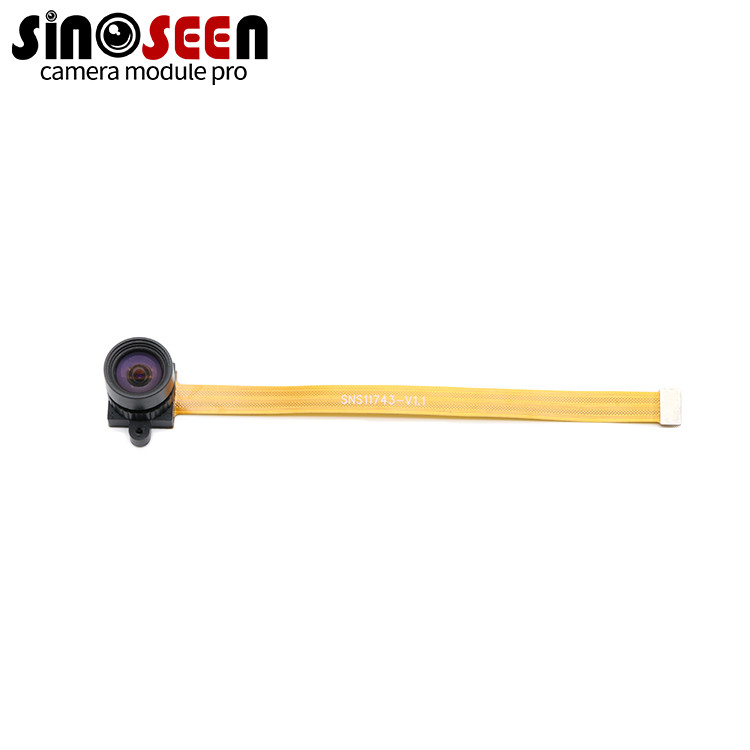

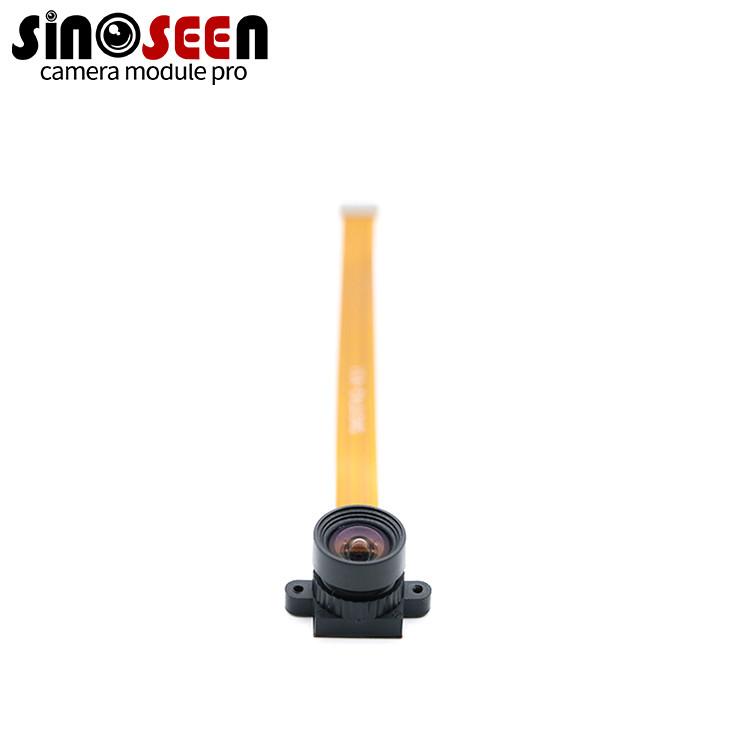

AR0144 Sensor Fixed Focus MIPI Camera Module 1280*720 30 Frames For Iris Recognition
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS11743-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4-Inch 1.0 Mp CMOS AR0144 |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Pixel Size: | 3.0um | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Global Shutter |
| High Light: | AR0144 Sensor MIPI Camera Module,Fixed Focus AR0144 Camera Module,AR0144 Camera Module For Iris Recognition |
||
Product Description
AR0144 Sensor Fixed Focus MIPI Camera Module 1280*720 Output 30 Frames For Iris Recognition
AR0144 USB Camera Module
The AR0144 sensor is an image sensor designed for automotive and machine vision applications. It offers a resolution of 1.2 megapixels (1280x960 pixels) and is known for its high sensitivity and low-light performance. The camera module outputs images with a resolution of 1280x720 pixels, also known as HD (High Definition) resolution. This resolution is suitable for iris recognition applications, providing sufficient detail for accurate recognition. The camera module adopts a fixed focus lens design. This means that the lens is set to a specific focal length and does not have the ability to automatically adjust focus. Fixed focus lenses are suitable for applications such as iris recognition where the distance between the camera and the subject is relatively constant.
The combination of the AR0144 sensor, fixed focus lens, MIPI interface and 1280x720 resolution makes this camera module ideal for capturing iris recognition applications. The iris requires precise and accurate imaging of the iris pattern, and the specifications of the camera module allow capturing detailed images at a suitable frame rate.
Specification
Model No | SNS11743-V1.1 |
Sensor | 1/4-Inch 1.0 Mp CMOS AR0144 |
Pixel | 1 Mega Pixel |
Most effective pixels | 1280H x 800V |
Pixel Size | 3.0µm x 3.0µm |
Chroma | COLOR Image |
Compression format | MJPG/YUY2 |
Resolution & Frame rate | See above |
Shutter Type | Global shutter |
Focus type | fixed focus |
S/N ratio | 38dB |
Dynamic range | 63.9dB |
Protocol | Plug-&-Play (UVC compliant) |
Interface type | mipi |
Lens | Lens Size: 1/4 inch |
FOV: 90° | |
Thread Size: M12*P0.5 | |
Audio frequency | Optional |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 180mW |
Main chip | DSP/SENSOR/FLASH |
Dimension | customizable |
Storage temperature | –40°C to +85°C |
Operating temperature | –40°C to +105°C |
USB cable length | Default |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/ |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
