720P 30FPS SC101AP Sensor 1MP Camera Module With 8 LED Lights USB Interface
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1107-V1.1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/4.2 Inch SC101AP Sensor |
|---|---|---|---|
| Resolution: | 1MP 1280*720 | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | HD |
| High Light: | SC101AP Sensor 1MP Camera Module,1MP Camera Module With 8 LED,720P 30FPS USB Camera Module |
||
Product Description

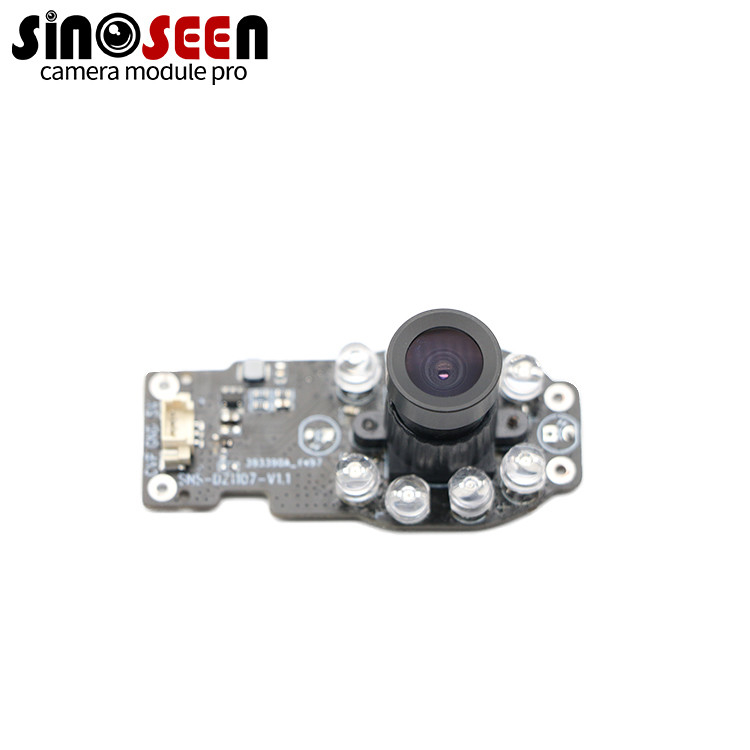

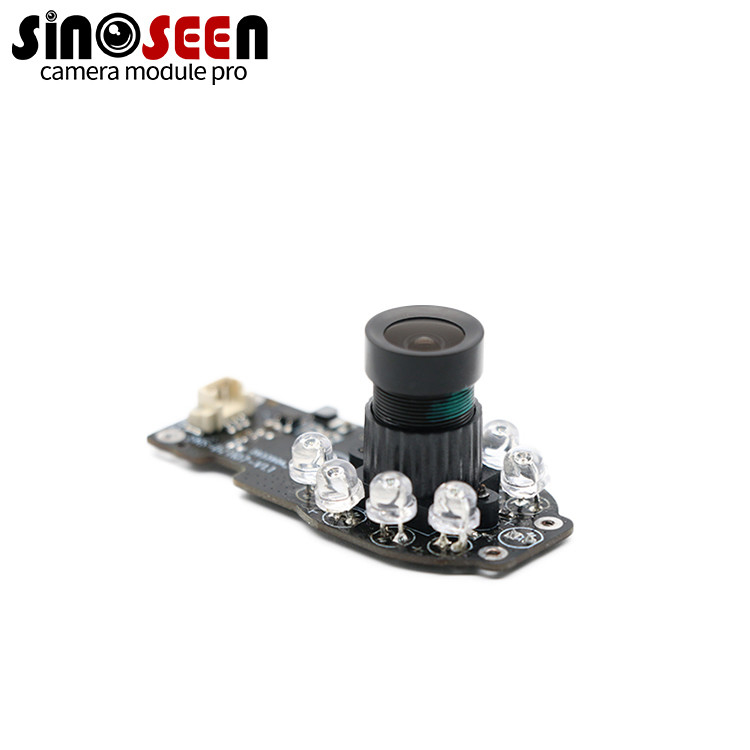

720P 30FPS SC101AP Sensor 1MP With 8 LED Lights USB Interface Camera Module
720P Camera Module
This camera module features the SC101AP sensor, which is a 1-megapixel (MP) sensor. The camera module supports a resolution of 720p (1280x720 pixels) and a frame rate of 30 frames per second (fps). It contains 8 LED lights for illumination to provide illumination in low-light environments. These lights help improve visibility and image quality in dark or low-light conditions. The camera module is connected using a USB interface. The USB interface allows easy integration with a variety of devices that support USB connectivity, such as computers, laptops, or embedded systems. Can be used for video conferencing, live streaming, computer vision, and other scenarios that benefit from higher quality imaging. Contains 8 LED lights to enhance visibility in low light conditions.
Specification
|
Model No |
SNS-DZ1107-V1.1 |
|
Sensor |
1/4’’ SC101AP sensor |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3888µm x 2430µm |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
40dB |
|
Dynamic range |
69dB |
|
Sensitivity |
3700mV / lux-sec |
|
CRA (chief ray angle) |
25° |
|
Interface type |
USB2.0 |
|
Lens FOV |
100° |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
|
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Camera module customization process
1 According to the actual application scenarios and functional goals, the camera module needs to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate sensor, lens and solution. needs customization. These products are only used for customer testing DEMO, please contact our customer service to inform you which product you want to use the camera module on? What function is implemented? Are there any special requirements? According to cost targets and other comprehensive factors, we help you choose the right SENSER+ lens solution, and then design the product PCB or FPC according to the structural requirements.
2 examples: the customer is going to make a person recognition and comparison machine. If it is used in a well-lit indoor environment, we recommend that customers use ordinary lenses and sensors. If the light or backlight is not good, we recommend customers to use WDR wide dynamic sensor. If customers have high requirements for safety, we recommend that customers use WDR and black and white infrared binocular recognition camera modules. When determining the sensor and lens plan, the customer should adjust the color, white balance and saturation parameters according to the actual environment to achieve the target effect.
