1MP WXGA MIPI Camera Module OV10635 Sensor High Dynamic Range
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-1MP-OV10635-M1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | MIPI Camera Module | Sensor: | 1/2.7" Omnivision OV10635 |
|---|---|---|---|
| Resolution: | 1MP 1280Hx800V | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HDR |
| High Light: | WXGA MIPI Camera Module,1MP MIPI Camera Module,High Dynamic Range 1MP Camera Module |
||
Product Description

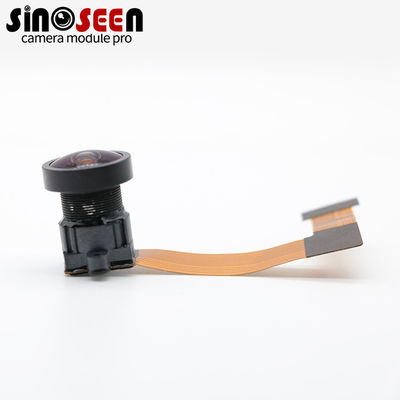

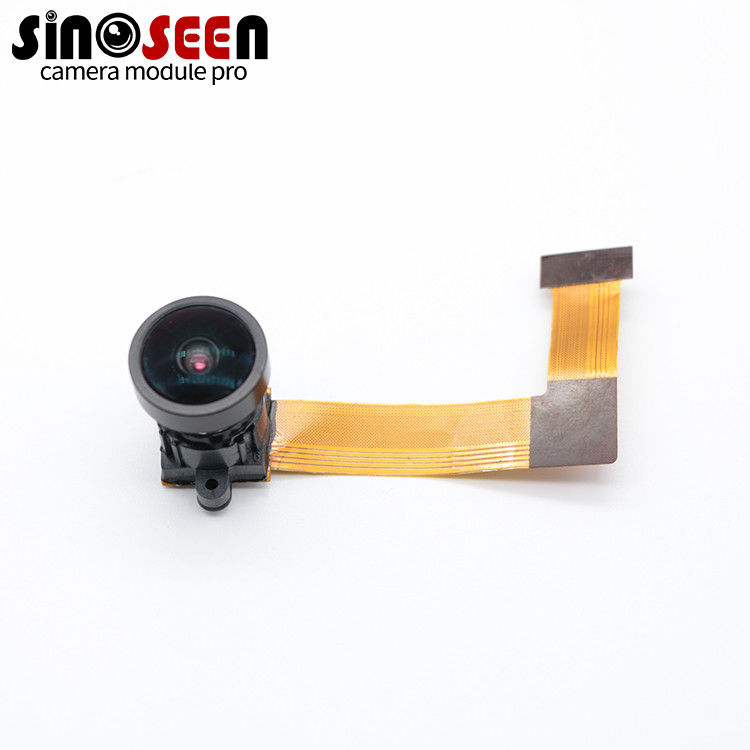

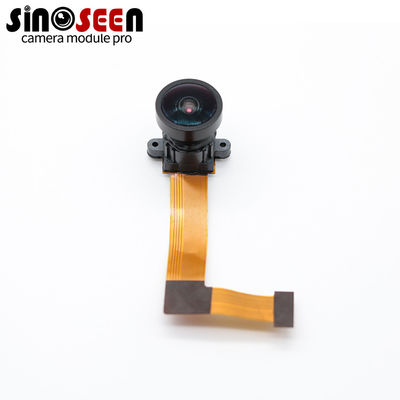

OV10635 sensor high dynamic range 1MP WXGA MIPI camera module
MIPI Camera Module
This is a 1MP OV10635 sensor that supports WXGA (Wide Extended Graphics Array) resolution, which is 1280x800 pixels. This resolution is commonly used on a variety of devices, including mobile phones, tablets, and laptops. By integrating the HDR-capable OV10635 sensor into MIPI camera modules, phone manufacturers can deliver improved imaging performance in challenging lighting conditions. The HDR feature allows the camera module to capture a wider range of brightness levels, resulting in images with more detail and better exposure balance. The 1MP WXGA resolution provides a good balance between image quality and file size, making it suitable for a variety of applications where high-resolution imaging is not a primary requirement.
Specification
Module No | SNS-1MP-OV10635-M1.0 |
Pixel Size | 4.2μm x 4.2μm |
Effective Pixels | 1280H×800H |
Video output | Raw Bayer10bit/8bit |
Active Array Size Video Rate | 30FPS |
Image Sensor | 1/2.7" |
Sensor Type | Omnivision OV10635 |
Lens view | FOV90°(optional),F/N(optional) |
TV Distortion | <1% |
AEC | Support |
AEB | Support |
AGC | Support |
Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
Operating temperature | -40～105℃ |
Storage temperature | 0～70℃ |
Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
