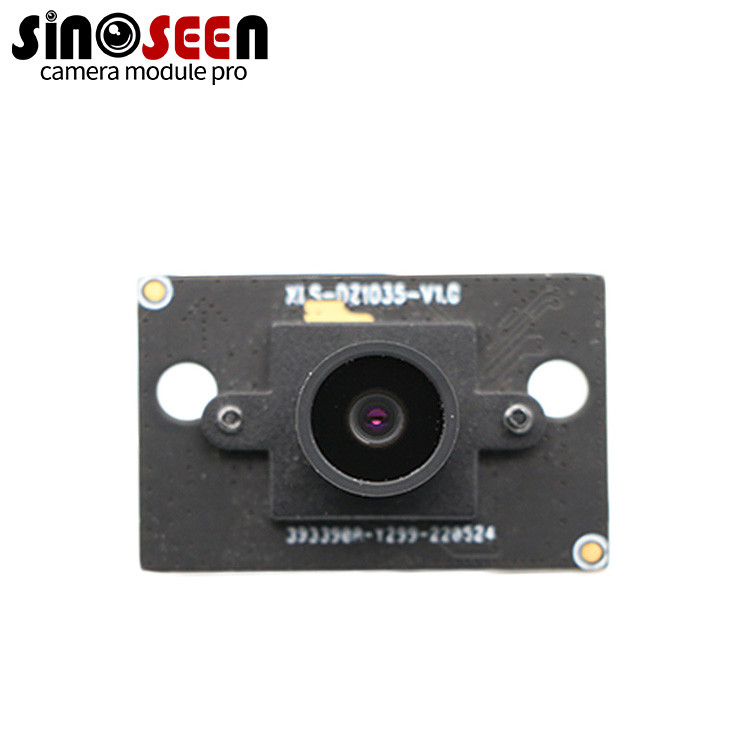

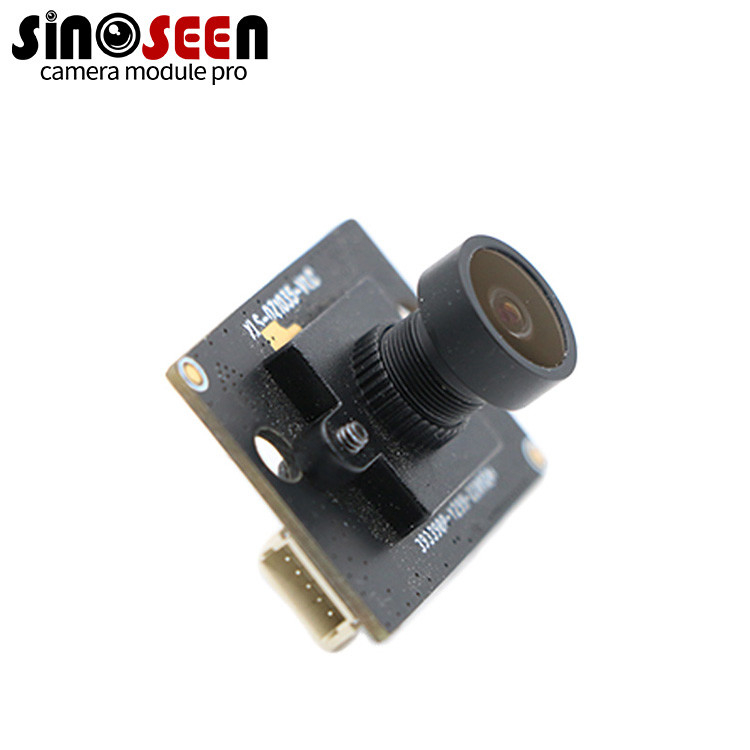

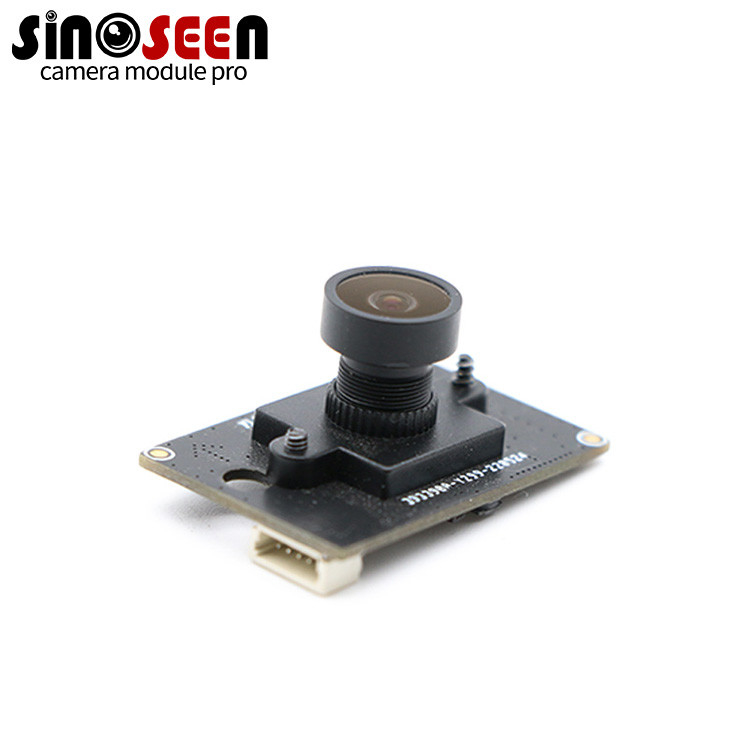

GC1054 Sensor USB Camera Module 30fps HDR 1MP Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1035-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 1MP Camera Module | Sensor: | 1/4 GC1054 |
|---|---|---|---|
| Resolution: | 1280(H) X 720(V) | Dimensions: | (customizable) |
| Max Frame Rate: | 30fps | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Low Power Consumption |
| High Light: | GC1054 Sensor USB Camera Module,30fps 1MP Camera Module,HDR 1MP Camera Module |
||
Product Description
HDR 1mp GC1054 Sensor USB Camera Module 30fps Camera Module
1MP Camera Module
This 1-megapixel (1MP) USB camera module with a GC1054 sensor supports frame rates up to 30 frames per second (fps). This frame rate is commonly used for live video capture and is suitable for many applications, including security cameras. The 30fps camera module enables smooth video recording, which is essential for capturing fast-moving objects or events. It ensures that recorded footage appears natural and detailed, with no noticeable motion blur or stuttering.
| Parameter | Typical value |
| Optical Format | 1/4inch |
| Pixel Size | 3.0um*3.0um |
| Active pixel array | 1280*720 |
| ADC resolution | 10bit ADC |
| Max Frame rate | 30fps@36MHz,DCLK |
| AVDD:3.15-3.45V(Typ.3.3V) | |
| Power Supply | DVDD:1.4-1.6(Typ.1.5V) |
| IOVDD:1.7-3.45V(Typ.1.8V) | |
| Power Consumption | 110mW@30fps,720p |
| SNR | 41.4dB |
| Dart Current | 200e-/s(60) |
| Sensitivity | 18000e-/lux-sec |
| Dynamic range | 70.7dB |
| Operating temperature | -30-80 |
| Stable Image temperature | 0-50 |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP/PLCC |
| Input clock frequency | 6-27MHz |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
