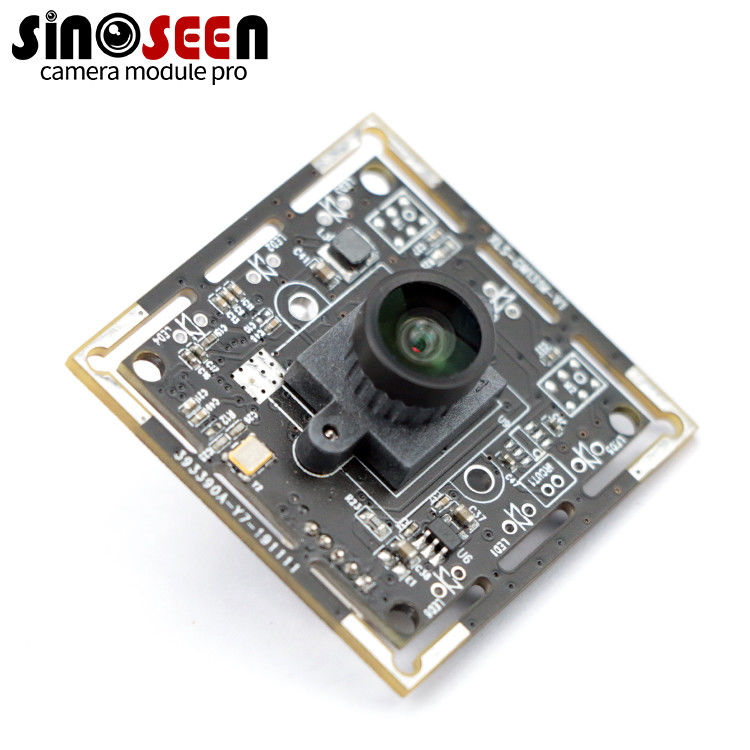

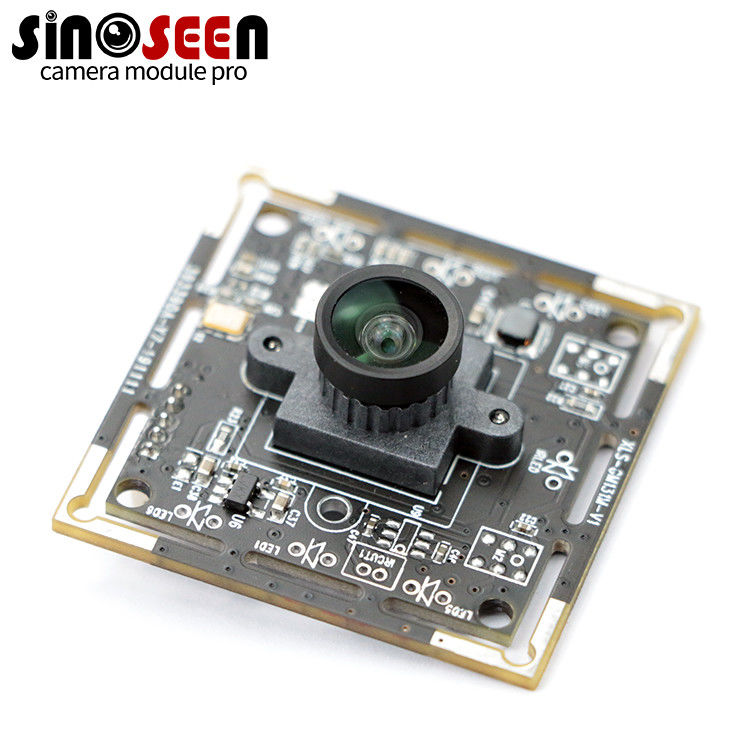

Monochrome 2MP Global Shutter Camera Module Fixed Focus USB Camera Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-2MP-OG02B1B-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | USB Camera Module | Sensor: | 1/2.9" Omnivision OG02B1B |
|---|---|---|---|
| Resolution: | 2MP (1600*1200) | Dimensions: | 38mmx38mm (compatible With 32mmx32mm) |
| Lens FOV: | 90°(optional) | Focus Type: | Fixed Focus |
| Interface: | USB2.0 | Feature: | Global Shutter |
| High Light: | 2MP Global Shutter Camera Module,Monochrome 2MP Camera Module,Fixed Focus USB Camera Module |
||
Product Description
Monochrome 2MP Global Shutter Camera Module Fixed Focus Usb Camera Module
OG02B10 Camera Module 2MP
This camera module uses a monochrome sensor with a resolution of 2 megapixels. The monochrome sensor captures black and white images with high sensitivity and excellent image quality, especially in low-light conditions. The camera module uses a global shutter mechanism that allows all pixels in the sensor to be exposed simultaneously. This feature eliminates the rolling shutter effect, ensuring fast-moving objects or sports scenes are captured without distortion or tilt. Camera modules can be used in fields such as industrial inspection, robotics, machine vision, barcode scanning, motion analysis, and scientific imaging. Its global shutter and monochrome capabilities make it ideal for tasks requiring precise image capture and synchronization.
|
Model No
|
SNS-2MP-OG02B1B-V1.0
|
|
Sensor
|
1/2.9’’ Omnivision OG02B1B
|
|
Pixel
|
2 Mega Pixel
|
|
Most effective pixels
|
1600(H) x 1200(V)
|
|
Pixel Size
|
3.0µm x 3.0µm
|
|
Chroma
|
Monochrome |
|
Compression format
|
MJPG / YUY2
|
|
Resolution & Frame rate
|
See above
|
|
Shutter Type
|
Global shutter
|
|
Focus type
|
Fixed Focus/Manually Adjustable
|
|
Clock Frequency
|
6 to 27 MHz
|
|
Chief Ray Angle (CRA)
|
15°
|
|
Microphone
|
Optional
|
|
Interface type
|
USB 2.0 high speed
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma
|
|
Lens
|
Lens Structure: 6G
|
|
|
Lens Size: 1/2.5 inch
|
|
|
H FOV: 90°
|
|
|
Thread Size: M12*P0.5
|
|
Audio frequency
|
Optional
|
|
Power supply
|
USB BUS POWER
|
|
Power consumption
|
DC 5V, <200mA
|
|
Main chip
|
DSP/SENSOR/FLASH
|
|
Auto Exposure Control (AEC)
|
Support
|
|
Auto White Balance (AEB)
|
Support
|
|
Auto Gain Control (AGC)
|
Support
|
|
Dimension
|
38mmx38mm (compatible with 32mmx32mm)
|
|
Storage temperature
|
-20°C to 75°C
|
|
Operating temperature
|
0°C to 60°C
|
|
USB cable length
|
Default
|
|
Support OS
|
WinXP/Vista/Win7/Win8/Win10
Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
