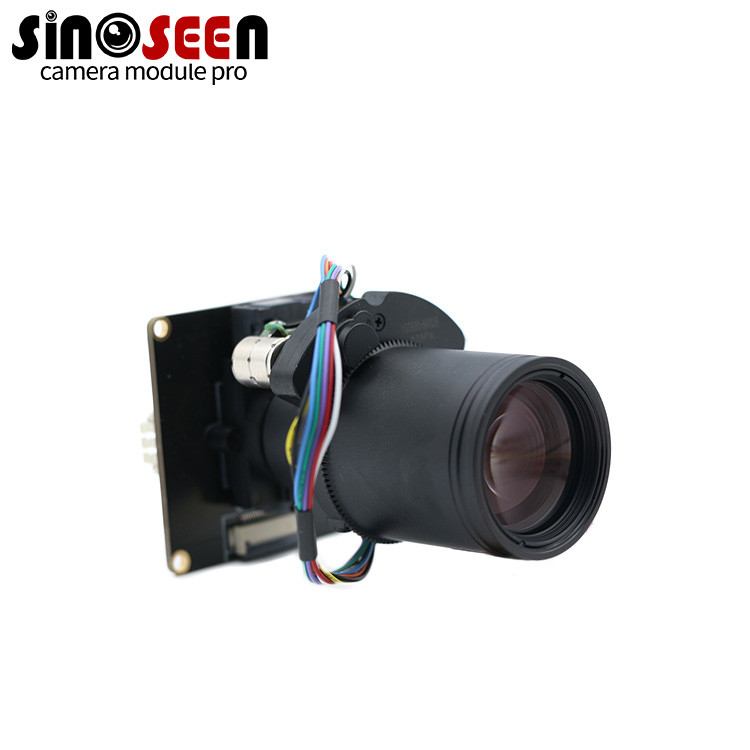

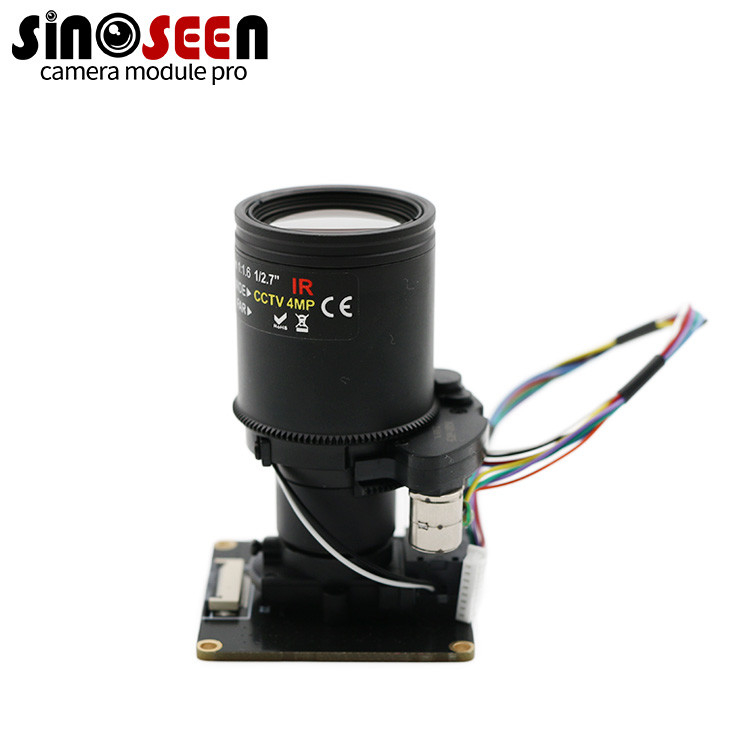

48MP MIPI Camera Module IMX586 Sensor 10X Optical Zoom Lens
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS481828-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Mipi Camera Module | Sensor: | IMX586 |
|---|---|---|---|
| Resolution: | 48MP 8000*6000 30fps | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Optical Zoom |
| Interface: | Mipi | Feature: | Low Light Performance |
| High Light: | 48MP MIPI Camera Module,10X MIPI Camera Module,IMX586 Sensor 48MP Camera Module |
||
Product Description
48MP IMX586 Sensor 10X Optical Zoom Lens MIPI Interface Camera Module
48MP Camera Module IMX586 Sensor
This module uses a popular image sensor developed by IMX586. It has a resolution of 48 megapixels, which means it can capture images with high detail and clarity. The sensor uses a technology called a quad-Bayer arrangement, where four adjacent pixels are combined to form a single large pixel. This arrangement helps improve low-light performance and reduce noise in the final image. This module uses a 10x optical zoom lens, which refers to a lens system that can optically magnify the subject without losing image quality. Optical zoom uses the actual movement of lens elements to enlarge the image, resulting in sharper, clearer details. The 10x optical zoom lens provides significant magnification, allowing you to capture distant subjects without sacrificing image quality. Designed to capture high-resolution photos and provide versatile zoom capabilities in a compact form factor, typically used on smartphones or other portable devices.
Specification
|
Module No |
SNS481828-V1.0 |
|
Pixel Size |
0.8um*0.8um |
|
Effective Pixels |
48MP 8000*6000 30fps |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
Full resolution@30FPS,1080P@60FPS |
|
Sensor Type |
Omnivision IMX586 |
|
Lens view |
FOV90°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
0～60℃ |
|
Storage temperature |
-20～70℃ |
|
Dimensions |
Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
FAQ:
Q1. How to choose the right camera module?
A: Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
A: After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
A: Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
A: If it is a USB camera module, it usually takes 2-3weeks, if it is a MIPI or DVP camera module, it usually takes 10-15days.
Q5: How long will it take to receive the sample after it is ready?
A: After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
