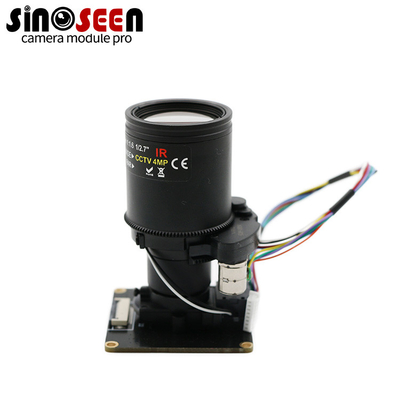

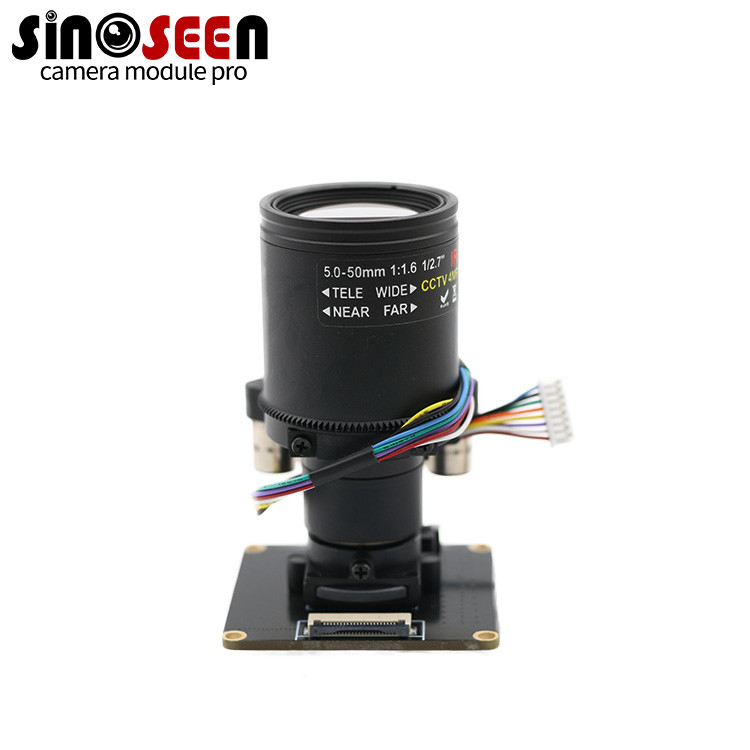

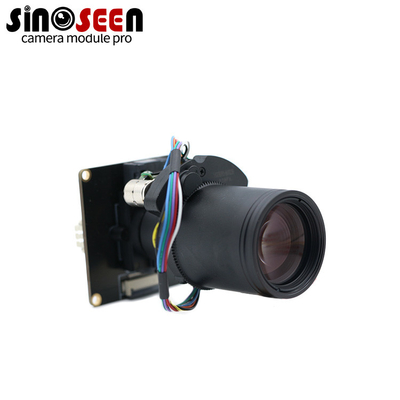

48MP MIPI Camera Module IMX586 Sensor 6X Optical Zoom Lens
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS481828-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | 10-100USD、negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Mipi Camera Module | Sensor: | IMX586 |
|---|---|---|---|
| Resolution: | 48MP 8000*6000 30fps | Dimensions: | Customizable |
| Lens FOV: | 90°(optional) | Focus Type: | Optical Zoom |
| Interface: | Mipi | Feature: | Low Light Performance |
| Highlight: | 48MP MIPI Camera Module,10X MIPI Camera Module,IMX586 Sensor 48MP Camera Module |
||
Product Description
48MP MIPI Camera Module IMX586 Sensor 6X Optical Zoom Lens
48MP IMX586 Sensor 6X Optical Zoom Lens MIPI Interface Camera Module
This high-performance camera module features a 48MP IMX586 sensor with quad-Bayer arrangement technology, delivering exceptional image clarity and detail. The 6x optical zoom lens provides true optical magnification without compromising image quality, making it ideal for capturing distant subjects with precision.
Key Features
- 48MP resolution for ultra-high-definition imaging
- Quad-Bayer pixel arrangement for improved low-light performance
- 6x optical zoom capability for versatile shooting
- Compact form factor suitable for smartphones and portable devices
- MIPI interface for high-speed data transfer
Specifications
| Module No | SNS481828-V1.0 |
|---|---|
| Pixel Size | 0.8um*0.8um |
| Effective Pixels | 48MP 8000*6000 30fps |
| Video output | Raw Bayer10bit/8bit |
| Active Array Size Video Rate | Full resolution@30FPS,1080P@60FPS |
| Sensor Type | Omnivision IMX586 |
| Lens view | FOV90°(optional),F/N(optional) |
| TV Distortion | <1% |
| Operating voltage | AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
| Operating temperature | 0～60℃ |
| Storage temperature | -20～70℃ |
| Dimensions | Customizable |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Frequently Asked Questions
Q1. How to choose the right camera module?
Please tell us your specific needs, such as application scenarios, resolution, size, and lens requirements. We will have a professional team of engineers to assist you in choosing the most suitable camera module.
Q2. How to start proofing?
After confirming all the parameters, we will draw a drawing to confirm the details with you. Once the drawing is confirmed, we will arrange a proofing.
Q3: How do I send the payment?
Currently we accept T/T bank transfer and Paypal.
Q4: How long does it take to make a sample?
If it is a USB camera module, it usually takes 2-3 weeks, if it is a MIPI or DVP camera module, it usually takes 10-15 days.
Q5: How long will it take to receive the sample after it is ready?
After the samples have been tested and there is no problem, we will send the samples to you via DHL FedEx UPS or any other courier methods, usually within a week.
Want to Know more details about this product
