Wide Angle Lens 4MP Camera Module 2K 30 Frames MIPI Interface Compact Module
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS-DZ1024-V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 4mp Camera Module | Sensor: | 1/3'' 4Mega CMOS |
|---|---|---|---|
| Dimensions: | (customizable) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | HD |
| High Light: | Wide Angle 4MP Camera Module,MIPI Interface 4MP Camera Module,Compact MIPI Camera Module |
||
Product Description

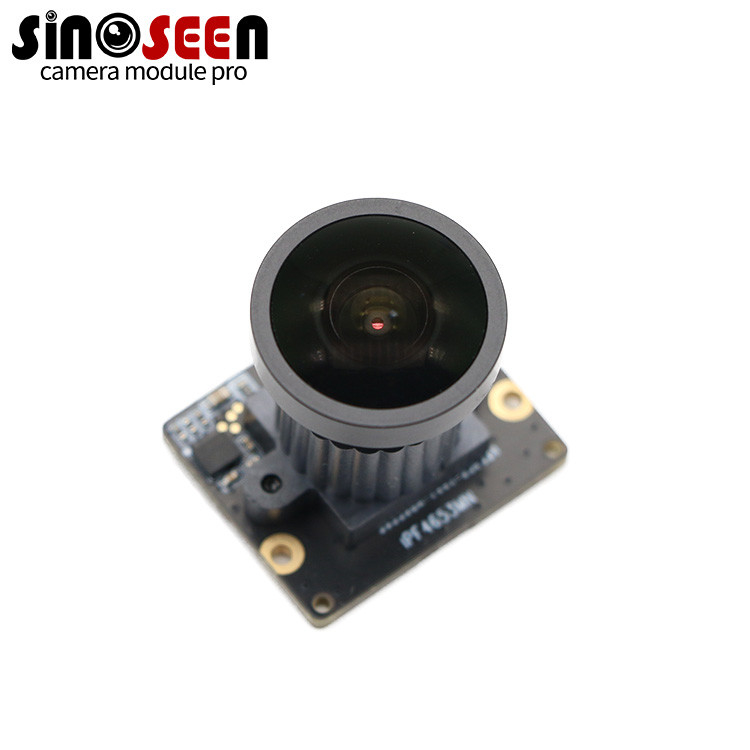

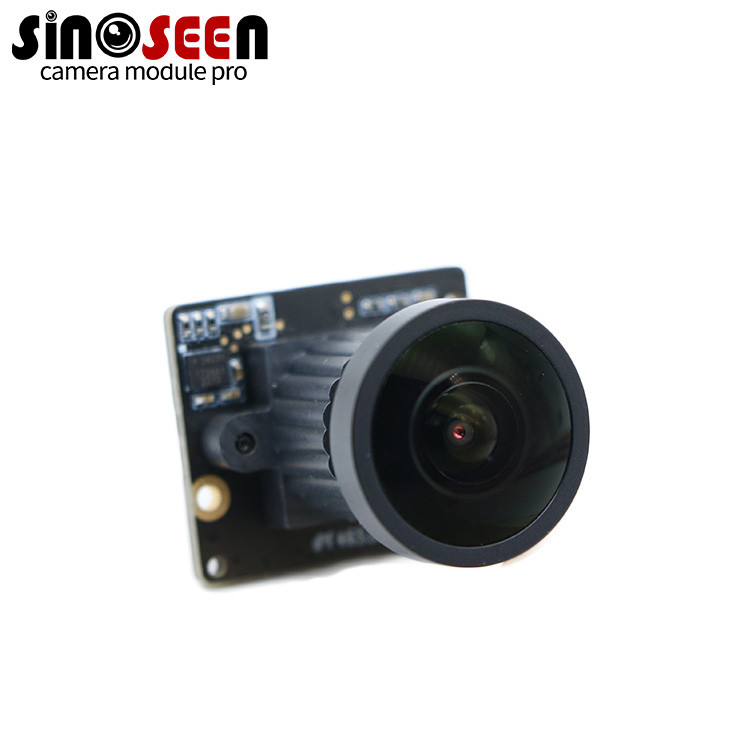

Wide Angle Lens 4MP 2K 30 Frames MIPI Interface Compact Module
Camera Module
The camera module uses a 4MP image sensor capable of capturing images with a resolution of 2K (typically 2048 x 1080 pixels). This resolution provides a high level of detail and clarity to the captured images. The camera module is equipped with a wide-angle lens. Wide-angle lenses have a shorter focal length than standard lenses, allowing them to capture a wider field of view. This is useful for applications that need to capture a larger area or want to include more subjects in the frame. The camera module is compact and suitable for applications where space is limited. Its small form factor allows it to be easily integrated into a variety of devices, such as smartphones, tablets, or other portable electronic devices.
| Model No | SNS-DZ1024-V1 |
| Sensor | 1/3’’4Mega Cmos |
| Pixel | 4 Mega Pixel |
| Compression format | YUYV/MJPEG |
| Resolution & Frame rate | See above |
| Shutter Type | Electronic rolling shutter |
| Focus type | Fixed focus |
| Interface type | USB2.0 high speed |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue Definition/White balance/Exposure |
| Power supply | mipi |
| Main chip | DSP/SENSOR/FLASH |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Support OS | WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current available USB solution
0.3MP
Low cost:BF3703 BF2103 GC0329 GC0309 GC0307 GC032A OV7675
Big size:GC0308(1/6.5”) GC0328(1/6.5”) GC0403(1/3”-0.4MP) BF3A03(1/6.5”)
Global shutter:OV7251 (1/7.5”,B/W)
High frame rate:200FPS SC031GS(1/6”,B/W)
Big size with high frame rate: OV7725(1/4”,60FPS),OV7740(1/5”,60FPS)
1MP
Low cost:GC1024 GC1034 GC1064(H264) H42 H62 SP1405 OV9712 OV9732 NT99141 SC1245 OV9760
Small size for endoscope:OV9734 GC1009 HM1091
Global shutter:OV9281(1/4”,B/W) OV9782(1/4”,color) AR0144(1/4”,color) AR0135(1/3”,color)
Big size (30FPS):AR0130(1/3”,B/W) OV10635(1/2.7”,color,WDR,960P) H65(1/3”,color,960P)
2MP
Normal(10FPS):GC2145(1/5”) BF2206(1/5”)GC2335 OV2643 HM2056 BF3925 OV2755(1/5” HD)
1080P low cost:F23 F37 F35 SP2305 GC2053 GC2023 AR0330(300W) SC2232H C2390 IMX322 C2395 SC2315 AR0237
1080P small size (30FPS):OV2732(1/4”) OV2740(1/4”) OV2722(1/6”) SC2145(1/4”) HM2160(1/6”)
1080P@60FPS:OV2710 HM2131 IMX307 C2395 SC2315 F35 SC2310
1080P-HDR (30FPS): OV2735 OV2718 PS5268 IMX307
1080P-WDR (30FPS): AR0230 AR0331(300W)
1080P-Starvis (30FPS): IMX291 IMX307 IMX323 IM290
1080P big size: IMX385
1080P global shutter: OG02B10(color) OG02B1B(B/W)
5MP
500W (15FPS): OV5648 GC5025 OV5640 OV5643 OV5693(up to 30FPS) 4EC OV5650
FHD 500W(30FPS): OS05A10 PS5520 HM5532 MI5100 MT9P001 IMX335 SC5335 AR0521 JXK05 OV4689(2K,1/3”)
8MP
800W (15FPS): IMX219(1/4”)S5K3H7 IMX179 C8390
8M-4K UHD (30FPS): IMX317 IMX415 OS08A10(big size 1/1.8”)
13MP-16MP
IMX214(13M) IMX258(13M) IMMX298(16M)
USB3.0
IMX335 OV5648 IMX179 IMX307 PS5268
H264
GC1064 OV2710 OV2735 OV9732 AR0130 AR0230 AR0330 H65 H62 IMX291 IMX322 IMX323 OV2718 OV2732
