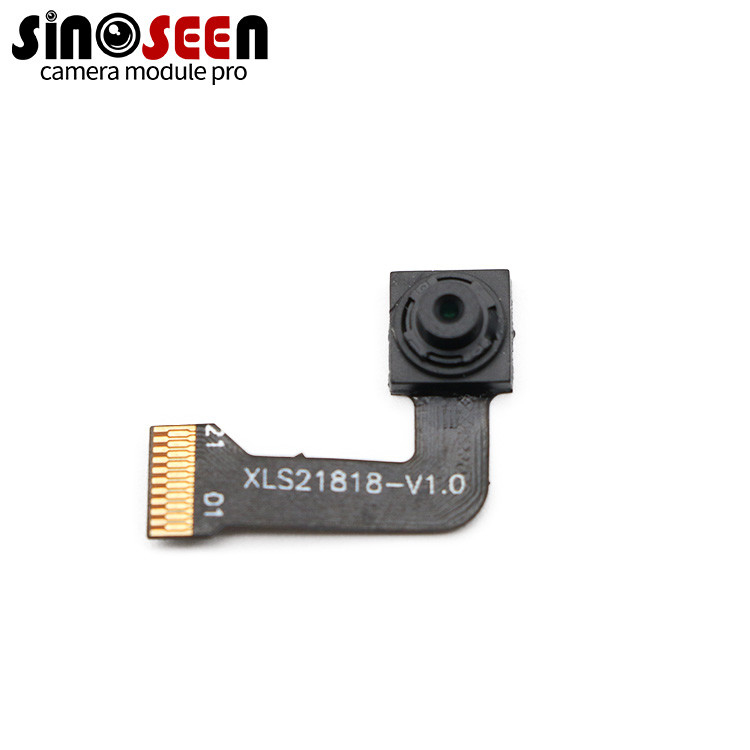

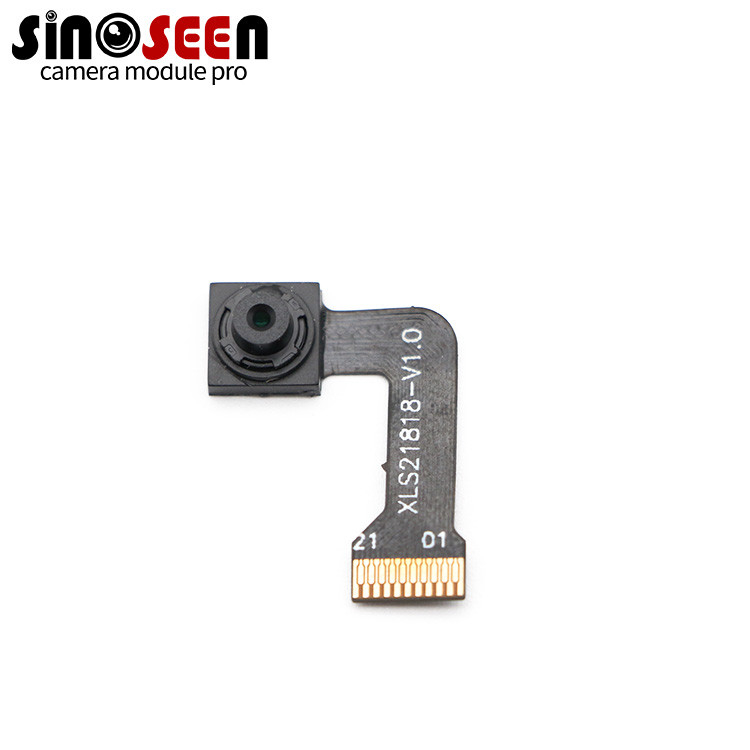

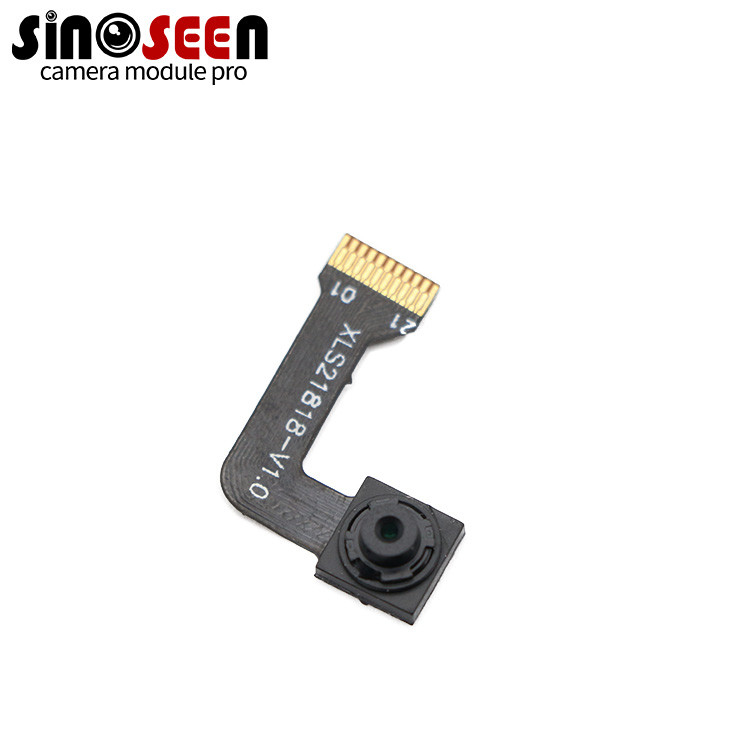

SP250 Sensor 2MP Camera Module MIPI Interface Fixed Focus 30 Frames 1600*1200
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS21818-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | SP250 Sensor |
|---|---|---|---|
| Resolution: | 1600*1200 | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | FF |
| Interface: | MIPI | Feature: | Low Power Consumption |
| High Light: | SP250 Sensor 2MP Camera Module,MIPI Interface 2MP Camera Module,30 Frames MIPI Camera Module |
||
Product Description
2MP Sensor MIPI Interface Fixed Focus 30 Frames 1600*1200 Camera Module
2MP Camera Module
The camera module features a 2-megapixel (2MP) sensor that captures images with a resolution of 1600 x 1200 pixels. This resolution provides good image quality and detail for a variety of applications. The camera module adopts a fixed focus lens design. Unlike autofocus lenses, fixed focus lenses do not have the ability to adjust focus. It is set to a specific focal length and is usually optimized for a specific distance or depth of field. This simplifies camera module design and reduces cost, making it suitable for applications where fixed focus is sufficient. The camera module supports frame rate video recording at 30 frames per second (fps). This frame rate provides smooth video playback for most applications and is commonly used in video recording scenarios. The camera module communicates with the host device using the MIPI (Mobile Industrial Processor Interface) interface. The MIPI interface provides high data transfer rates and power efficiency, ensuring fast and reliable transfer of image data from the camera module to the host device.
Specification
| Parameter | Typical value |
| Optical Format | 1/5inch |
| Active pixel array | 1920*1080 |
| Pixel Size | 1.65um*1.65um |
| Shutter type | Electonic rolling shutter |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 30fps@full size |
| Power Supply | AVDD28:2.8V |
| DVDD:1.2V | |
| IOVDD:1.8V | |
| Power Consumption | TBD |
| SNR | TBD |
| Dark Current | TBD |
| Sensitivity | TBD |
| Dynamic range | TBD |
| Operating temperature: | -20°C to 80°C |
| Stable Image temperature | 0°C to 60°C |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP |
| Input clock frequency | 6-27MHz |
