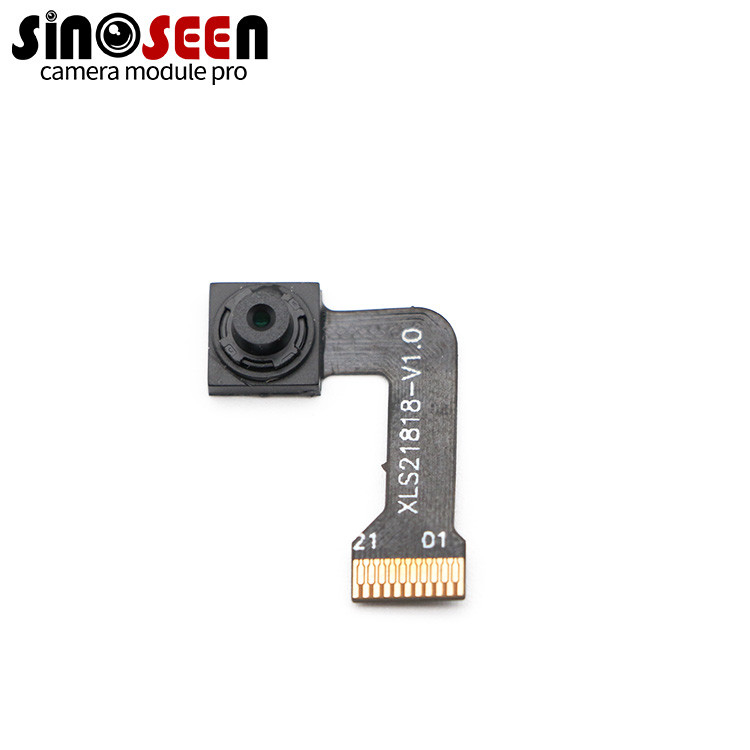

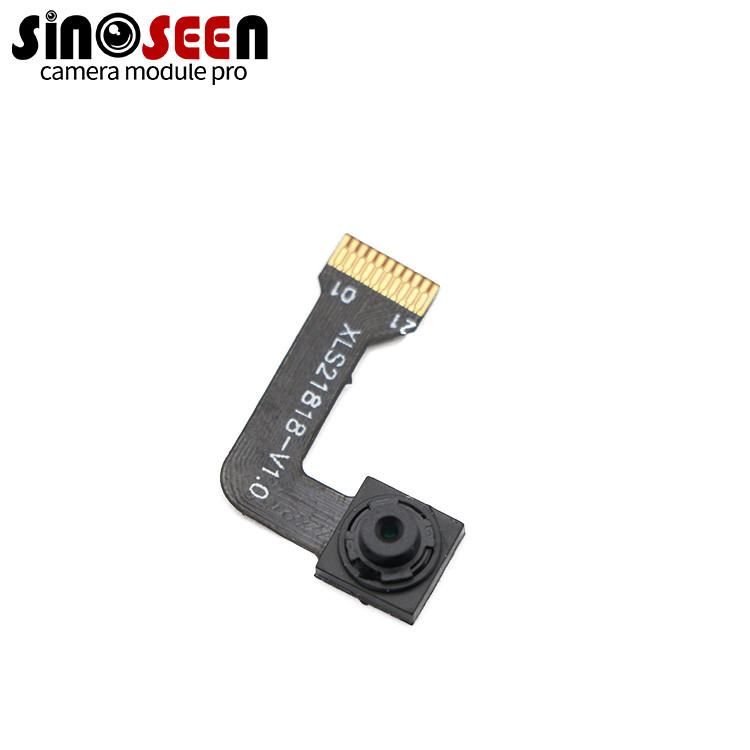

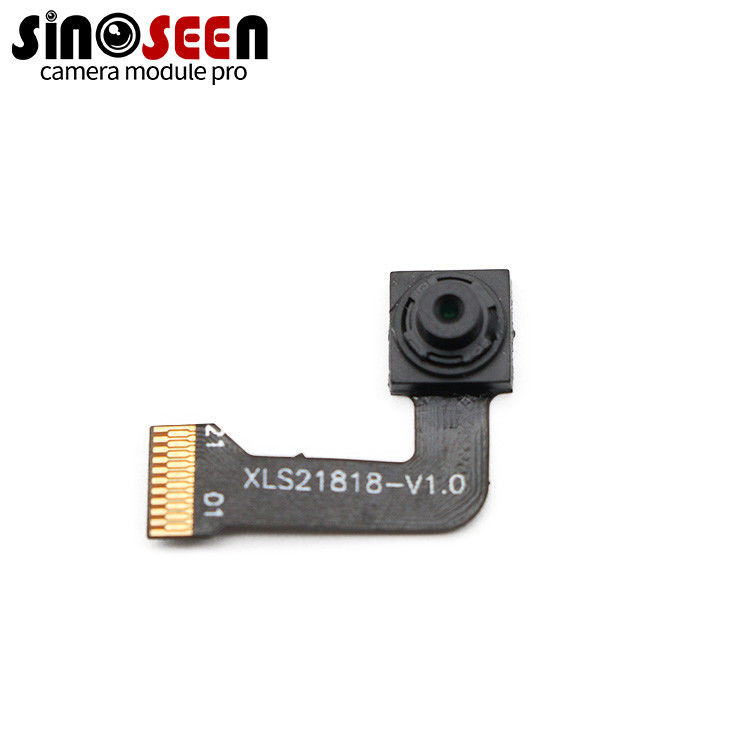

MIPI Interface 2MP Camera Module With Fixed Focus Lens For Fast And Stable Data Transfer
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS21818-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | 2MP Camera Module | Sensor: | SP250 Sensor |
|---|---|---|---|
| Resolution: | 1600*1200 | Dimensions: | (customizable) |
| Lens FOV: | 100°(optional) | Focus Type: | FF |
| Interface: | MIPI | Feature: | Low Power Consumption |
| High Light: | MIPI Interface 2MP Camera Module,Fixed Focus Lens 2MP Camera Module,1600*1200 MIPI Camera Module |
||
Product Description
2MP Sensor MIPI Interface Fixed Focus 30 Frames 1600*1200 Camera Module
2MP Camera Module
The MIPI interface 2MP camera module with fixed-focus lens is a camera module that integrates a 2-megapixel (2MP) image sensor and a fixed-focus lens. The MIPI interface is a standard communications interface widely used in mobile devices and other applications to connect cameras, sensors, and other peripherals to the main processing unit. It provides high-speed data transmission and efficient control signals for seamless integration with host devices. The camera module's 2MP resolution means it can capture images with a higher level of detail than lower-resolution sensors. A fixed focus lens means that the camera module has a fixed focal length, that is, it is set to focus on objects at a specific distance and does not support the autofocus function. This type of lens is typically used in applications where the focal length is known and constant, allowing for simpler designs and faster image capture. By combining a 2MP image sensor, fixed-focus lens and MIPI interface, this camera module provides a solution for applications requiring high-quality image capture and fast and reliable data transfer. It can be used in a variety of devices such as smartphones, tablets, industrial cameras, barcode scanners, and other applications that require stable and efficient imaging.
Specification
| Parameter | Typical value |
| Optical Format | 1/5inch |
| Active pixel array | 1920*1080 |
| Pixel Size | 1.65um*1.65um |
| Shutter type | Electonic rolling shutter |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 30fps@full size |
| Power Supply | AVDD28:2.8V |
| DVDD:1.2V | |
| IOVDD:1.8V | |
| Power Consumption | TBD |
| SNR | TBD |
| Dark Current | TBD |
| Sensitivity | TBD |
| Dynamic range | TBD |
| Operating temperature: | -20°C to 80°C |
| Stable Image temperature | 0°C to 60°C |
| Optimal Lens chief ray angle(CRA) | 12(linear) |
| Package type | CSP |
| Input clock frequency | 6-27MHz |
