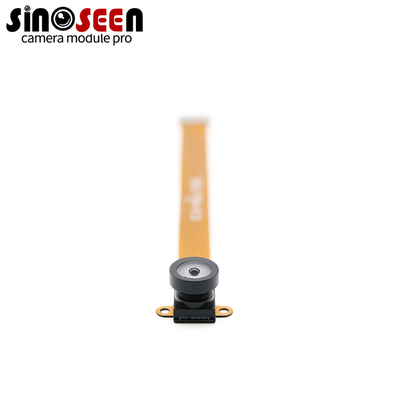

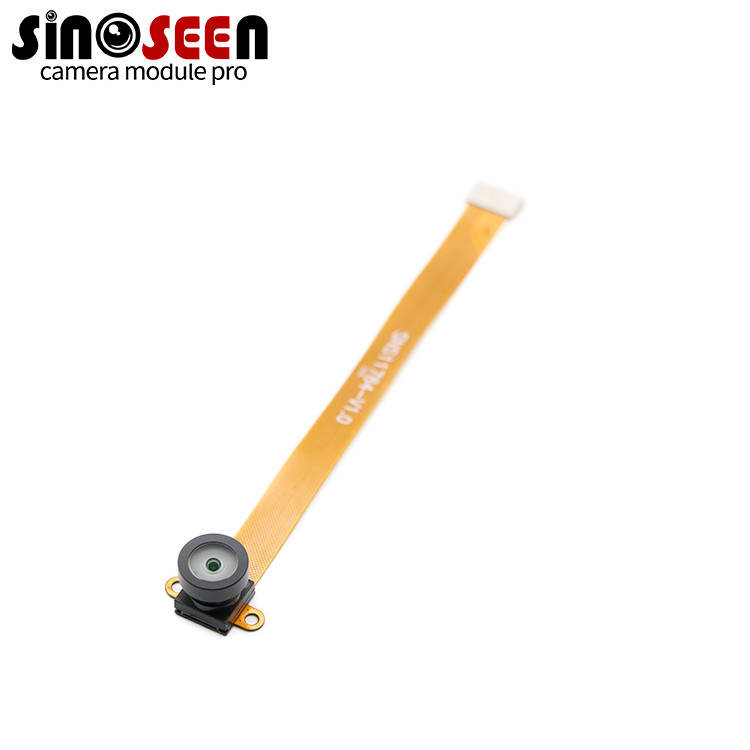

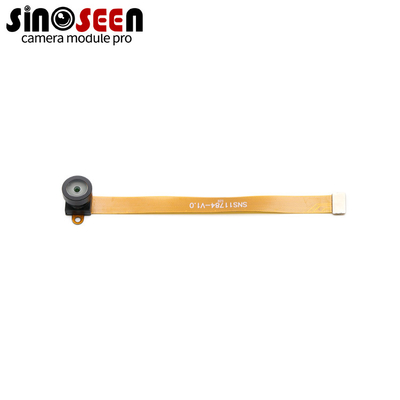

1280x800 Resolution 1MP Camera Module For Surveillance Systems And Video Conferencing
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Sinoseen |
| Certification: | RoHS |
| Model Number: | SNS11784-V1.0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | negotiable |
| Packaging Details: | Tray+Anti-static bag in carton box |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500000 pieces/month |
|
Detail Information |
|||
| Type: | Camera Module | Sensor: | 1/4" Omnivision OV9282 CMOS |
|---|---|---|---|
| Resolution: | 1MP 1280(H) X 800(V) | Dimensions: | Customizable |
| Lens FOV: | 60°(optional) | Focus Type: | Fixed Focus |
| Interface: | MIPI | Feature: | Global Shutter |
| Highlight: | 1280x800 1MP Camera Module,customizable 1MP Camera Module,OV9282 CMOS Camera Module |
||
Product Description
1mp OV9282 Color Sensor 1280*800 Resolution Compact MIPI Interface Camera Module
720P Camera module
The camera module features a 1/4-inch CMOS image sensor with a resolution of 1280x800 pixels. This resolution is ideal for surveillance systems and video conferencing as it provides clear and detailed images. The module supports the MIPI CSI-2 interface, making it compatible with many single-board computers (SBCs) and embedded systems. It also comes with a lens that provides a standard field of view, suitable for capturing scenes typical in surveillance or video conferencing scenarios. The camera module is designed to provide high-quality images and videos, and its compact form factor is suitable for a variety of applications
Specification
|
Model No |
SNS11784-V1.0 |
|
Sensor |
1/4" Omnivision OV9282 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Dark current |
80e-/sec |
|
Interface type |
mipi |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
Shenzhen Sinoseen Technology Co.,Ltd
China top 10 camera module manufacturer
We customize all kinds of USB/MIPI/DVP camera module as per your request
Current avaliable global shutter USB camera module
Omnivision OV7251 0.3MP Monochrome(black and white)
Omnivision OV9281 1MP Monochrome(black and white)
ON Semiconductor AR0144 1MP Monochrome(black and white) or RGB color
Omnivision OG02B1B 2MP Monochrome(black and white)
Omnivision OG02B10 2MP RGB color
